« on: April 24, 2011, 08:57:00 PM »



with the thread title being loosely based on julius caesar's famous phrase "veni, vidi, vici", it was me who came, who saw and who conquered! Space Ace

what did i conquer? a dedicated atari vindicators arcade cabinet! well, in fact the battle wasn't too hard to win, because i got this game for free and as we all know: nothing beats free!!!

now on to the bad part: the cabinet is missing a lot of parts (monitor, pcb, power supply, speakers, etc.) and while its body is still in solid shape, it is going to need a lot of TLC (tender, love & care) to bring it back to life and make it playable again!

let's have a look at the cabinet first - full frontal view arrow



the left side



as you can see, not much left of the artwork



tank chains look dirty, but are almost intact



the right side



fortunately, the sideart here is still there and in nice condition, which means i've got a new job for the vector king Grin



tank chains are looking better here as well



the back side



as you can see, someone obviously tried to "break into the game" and smashed the wood and the grill Cry



i guess i need some repro alu stickers for this one, too!



the fan guard is missing as well (more signs of a forced entry) and there are some heavy damages to the cabinet



at the front, the light fixture is present, but the entire marquee assembly (metal frame, glass, vindicators attraction decal translite) is missing ...



... and so are the speakers! Angry



the good news is that the front decal is there ...



... and its condition ain't too bad Kiss



i guess it would have been close to impossible to repro the decal with all those shiny glossy colors - lucky me Smiley



on to the control panel where you can see the rust eating away the metal! Twisted



the two tank controllers





the german instruction decal seems to be in great shape - at least something Wink



a look inside the cabinet reveals an empty pcb slot and no power supply at all with the wiring harness being cut! Cry



the lower coin door has been opened and the coin bucket has been stolen, but the upper coin door (which hides the coin mechs, the coin counters and the audio pcb) is still locked - but not for much longer!



lock successfully "picked" Cool



open sesame: coin mechs are intact!



a first peek inside reveals the audio pcb and the coin counters - everything seems to be present!



not too many games on the counters - i wonder when this game was played for the last time ... Huh?



up to now i haven't removed the control panel because it is being held in place by six of these strange screws



i've been into this hobby for some time now and i don't know how many times i had reached the point where i thought "now you have all the tools you need to restore games!". well, i guess i was wrong again and after a trip to a nearby hope depot a new set of tools has been added to my collection Tongue



all it needs is the right bit and the screws come off easily



top down view of the audio pcb - pure nastiness! shock shock shock



pure nastiness in detail - i wonder what happened to that pcb!!!



ok, i guess that's enough for you to swallow! as you've just seen, a looot of work to be done and you guy must be wondering "why is superully even taking on this endeavour?".

well, let me tell you this: i have a masterplan!!! Space Ace Space Ace Space Ace

to be continued ...
Logged

all i need is ... PONG - and a select few others: TOUCH ME, DRAGON'S LAIR, JOUST, ROBOTRON, MR DO, SAN FRANCISCO RUSH THE ROCK!!!
Etienne MacGyver
ArcadeLifeStyler'
***
Posts: 7554


The Netherlands


View Profile
« Reply #1 on: April 24, 2011, 09:42:04 PM »

Very nice Ully !
she is in good hands with you !

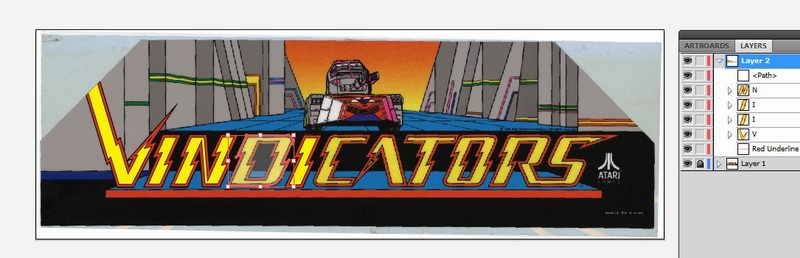

I was starting to get bored, and have nothing else to do, so that sideart vectorjob comes exactly in time...  Wink

Somehow i sensed around februari, that your marquee also is missing, and your lucky that i was bored in that time too..  Grin

It looks like i need to return to this and continue this too:



ps ..



Straight closup shot / scan and measurements please..   Wink

about the alu repro's, no problem, and i think there are more you need right ?

Just place your order my friend, and ill take care of the rest Cool
« Last Edit: April 24, 2011, 09:48:22 PM by Etienne » Logged
Superully
ArcadeLifeStyler'
***
Posts: 6286


Southern Part of Germany


View Profile
« Reply #2 on: April 24, 2011, 09:52:40 PM »

she is in good hands with you !

i don't know what's up with you dutch guys calling arcade games a SHE - this game definitely is NOT FEMALE! Tongue

Somehow i sensed around februari, that your marquee also is missing, and your lucky that i was bored in that time too..  Grin
It looks like i need to return to this and continue this too:

good thinking, but you don't have to because - as i've said - i have a masterplan which is already in full motion. stay tuned and watch this space!!!

ps ..

Straight closup shot / scan and measurements please..   Wink

not sure whether i'm going to replace this or not, but it can't hurt to have it readily available, so i'll get you a scan of this along with the measures!

about the alu repro's, no problem, and i think there are more you need right ?

absolutely!
Logged

all i need is ... PONG - and a select few others: TOUCH ME, DRAGON'S LAIR, JOUST, ROBOTRON, MR DO, SAN FRANCISCO RUSH THE ROCK!!!
Etienne MacGyver
ArcadeLifeStyler'
***
Posts: 7554


The Netherlands


View Profile
« Reply #3 on: April 24, 2011, 09:52:46 PM »


ok, i guess that's enough for you to swallow! as you've just seen, a looot of work to be done and you guy must be wondering "why is superully even taking on this endeavour?".

well, let me tell you this: i have a masterplan!!! Space Ace Space Ace Space Ace

to be continued ...

Could this be Ully's first "mame-out" ?   oppps
Logged
Superully
ArcadeLifeStyler'
***
Posts: 6286


Southern Part of Germany


View Profile
« Reply #4 on: April 24, 2011, 11:01:05 PM »

Could this be Ully's first "mame-out" ?   oppps

would a mame-out include you NOT vectoring the marquee?
Logged

all i need is ... PONG - and a select few others: TOUCH ME, DRAGON'S LAIR, JOUST, ROBOTRON, MR DO, SAN FRANCISCO RUSH THE ROCK!!!
Etienne MacGyver
ArcadeLifeStyler'
***
Posts: 7554


The Netherlands


View Profile
« Reply #5 on: April 25, 2011, 08:45:20 AM »

no thats true..
well then maybe you found a NOS Marquee ?
Logged
Superully
ArcadeLifeStyler'
***
Posts: 6286


Southern Part of Germany


View Profile
« Reply #6 on: April 25, 2011, 09:10:08 AM »

well then maybe you found a NOS Marquee ?

guess you'll have to wait and see Grin
Logged

all i need is ... PONG - and a select few others: TOUCH ME, DRAGON'S LAIR, JOUST, ROBOTRON, MR DO, SAN FRANCISCO RUSH THE ROCK!!!
Superully
ArcadeLifeStyler'
***
Posts: 6286


Southern Part of Germany


View Profile
« Reply #7 on: April 25, 2011, 11:53:34 AM »


the restoration begins ...

as always, i'm starting with the leg levelers, because missing / broken levelers are often the root of all evil Evil. the original levelers are a little bit rusted, but still good enough to use!



after a night in the anti-rust bath and some polishing, they are ready to go back onto the game. note: i've added two additional levelers (not pictured) because the cabinet is so heavy and bulky!



now on to the damages to the cabinet - remember that the rear grill has been smashed arrow



removing the grill reveals the full scale of the destruction





viewed from the inside



in order to repair the crack, i have to remove the splintered wood



looking better already



some glue first ...





... and then a lot of bondo!



after multiple layers of wood filler (and some serious sanding) ...





... the cab is ready to be repainted!



the results: from the inside arrow



from the outside arrow



Space Ace Space Ace Space Ace

to be continued ...
