Author Topic: :: Workshop :: @!#?@!? [Q*Bert of course] ;-)  (Read 43502 times)
Psykick
Member
**
Posts: 123


View Profile
« Reply #75 on: June 08, 2010, 07:04:29 PM »

Top job dude  Cool
Logged
Superully
ArcadeLifeStyler'
***
Posts: 6265


Southern Part of Germany


View Profile
« Reply #76 on: June 08, 2010, 07:37:09 PM »

well done, bruno, although i wonder why the original setup didn't hide the wires Huh?
Logged

all i need is ... PONG - and a select few others: TOUCH ME, DRAGON'S LAIR, JOUST, ROBOTRON, MR DO, SAN FRANCISCO RUSH THE ROCK!!!
DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11534


Singe's castle


View Profile WWW
« Reply #77 on: June 08, 2010, 10:21:57 PM »

Well, I got this bezel when I got this cab', but it doesn't mean it's the original bezel after all  roll eyes The problem with this cabinet is the fact I cannot compare with someone else. I don't know any other owner of this specific French cabinet version.
Maybe an other part is missing...or maybe there should be a bigger 'under bezel'?
Logged

DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11534


Singe's castle


View Profile WWW
« Reply #78 on: June 18, 2010, 10:13:35 AM »

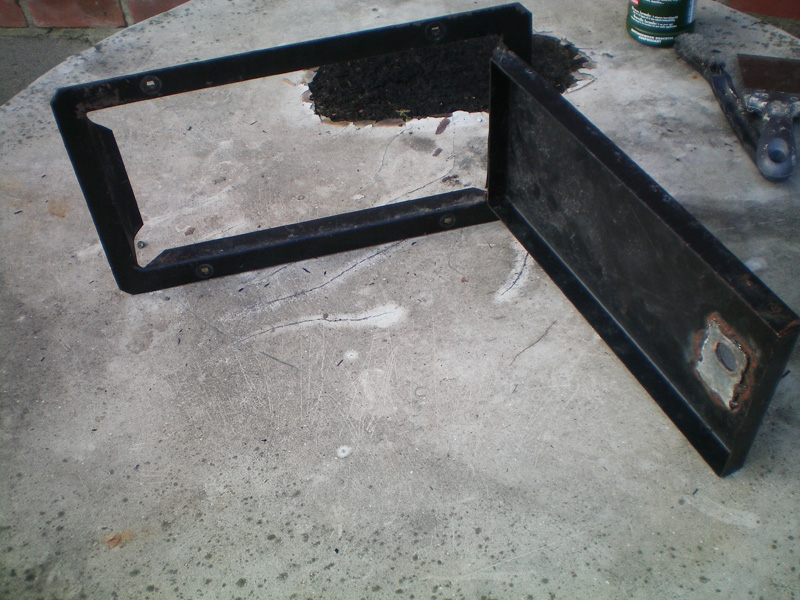

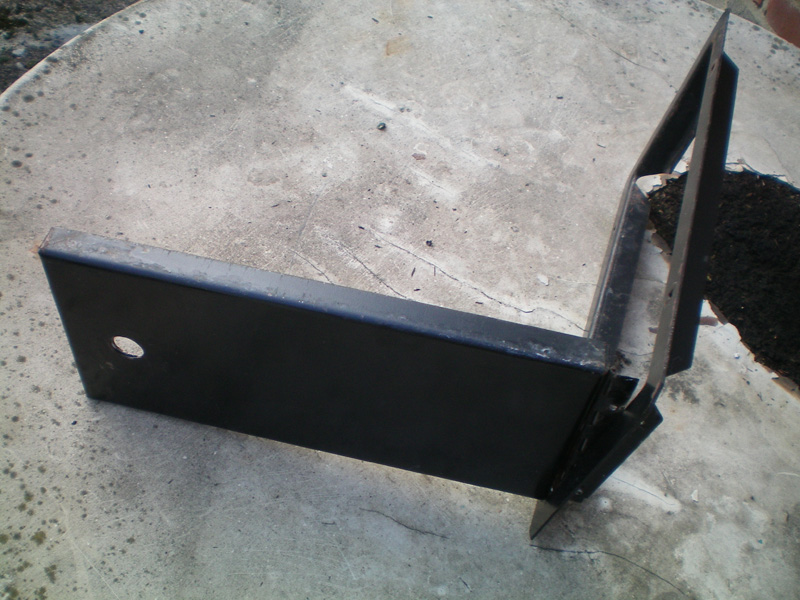

Let's continue the work. Now let's fix the cash box door and its frame...

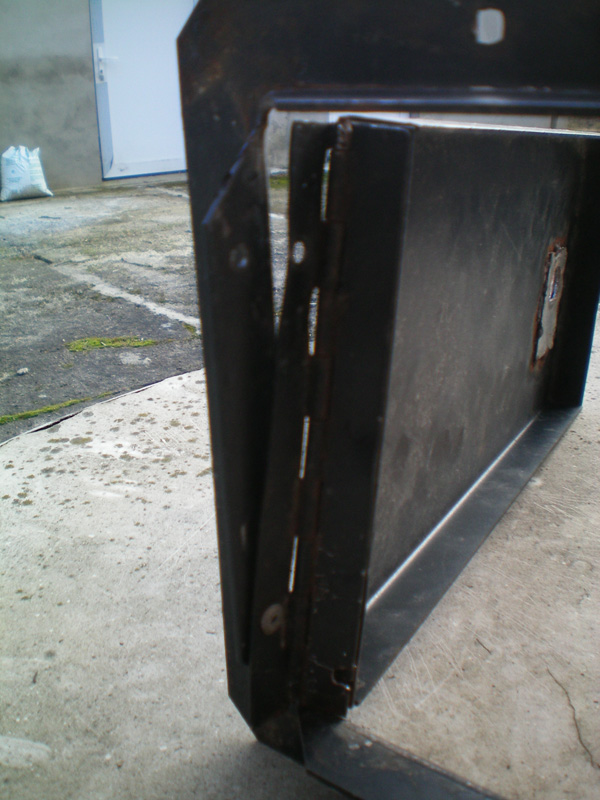

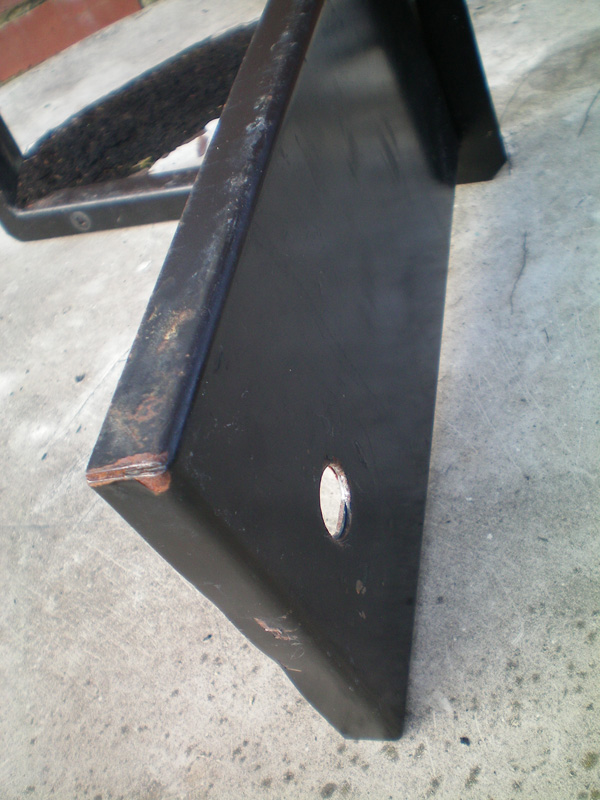

...full of rust, bends...



...and broken...

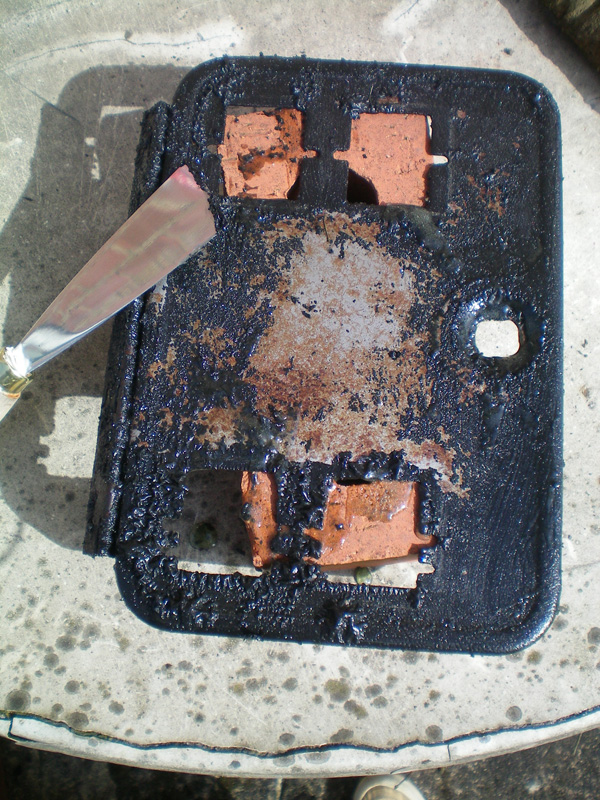

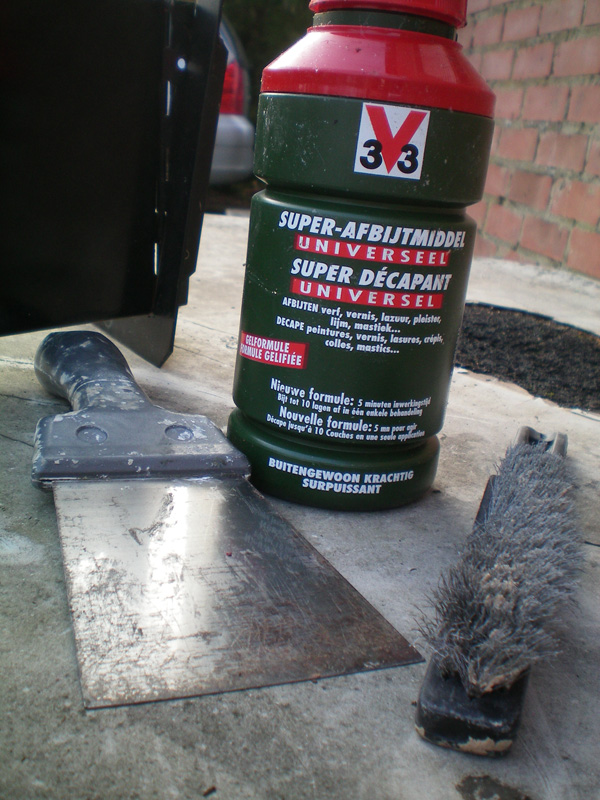

Same tools than previously (for the control panel work) in order to remove the paint :

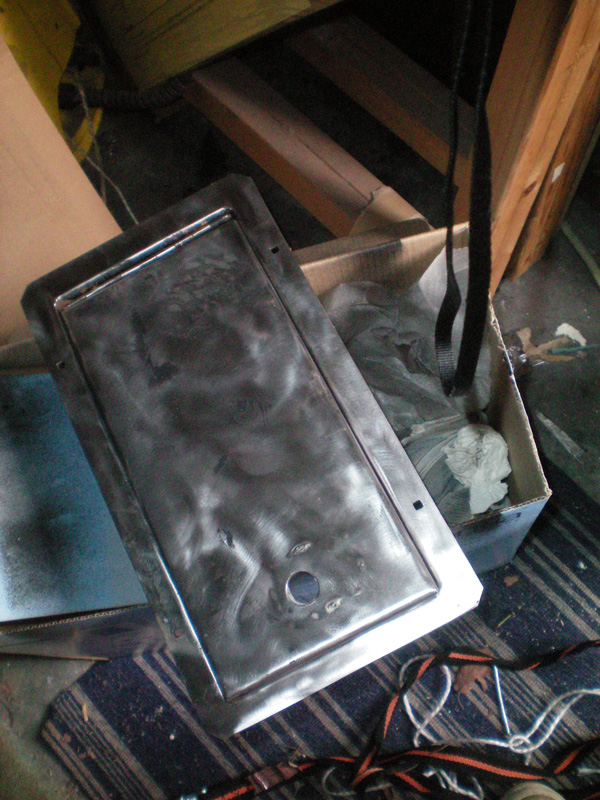

That product does the job for about 90%, for the rest I'm using my drilling machine equipped with a metallic brush, in order to obtain this :

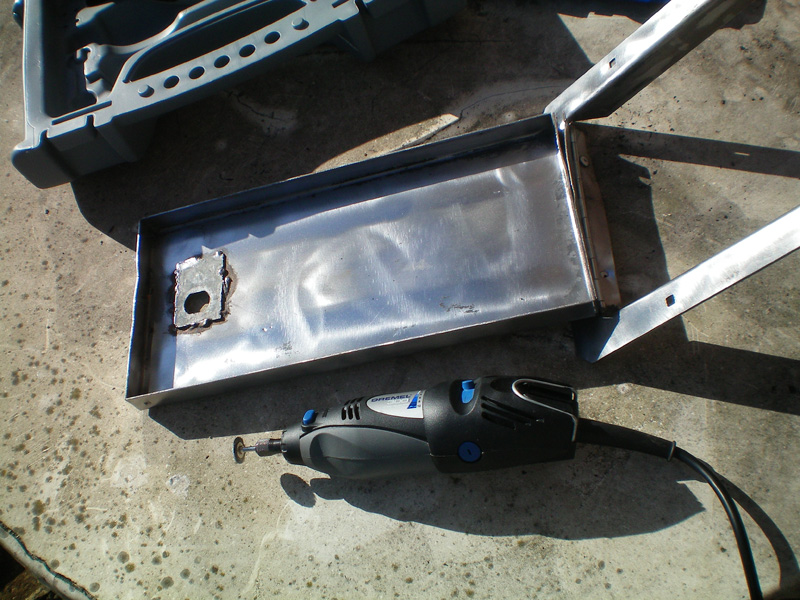

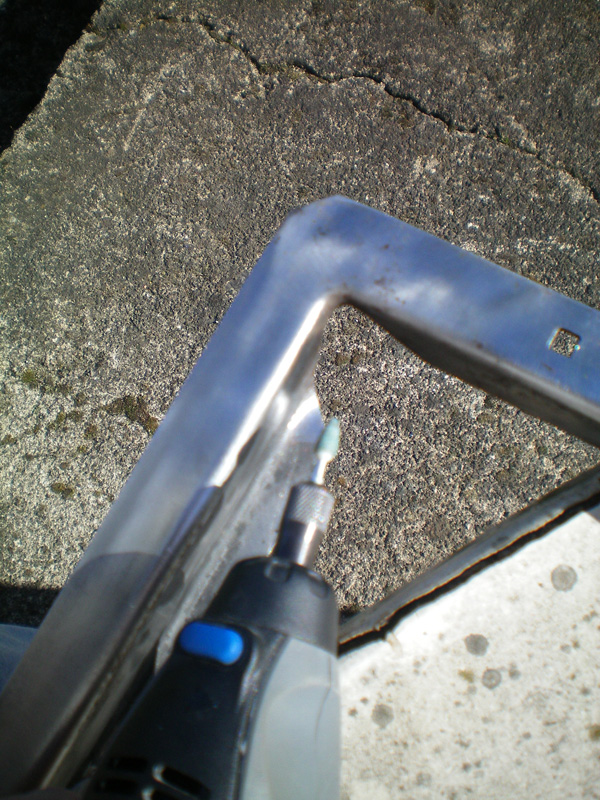

...and for the hardest areas to access, I'm using my Dremel ...

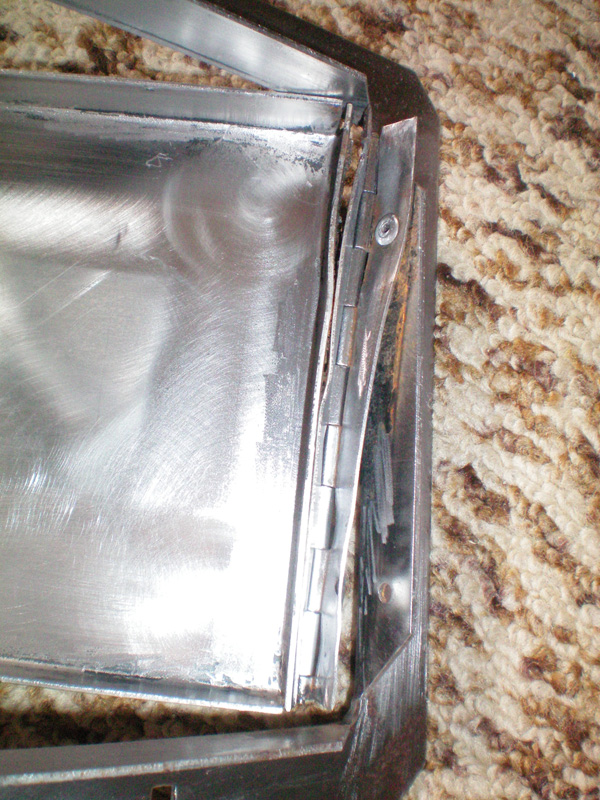

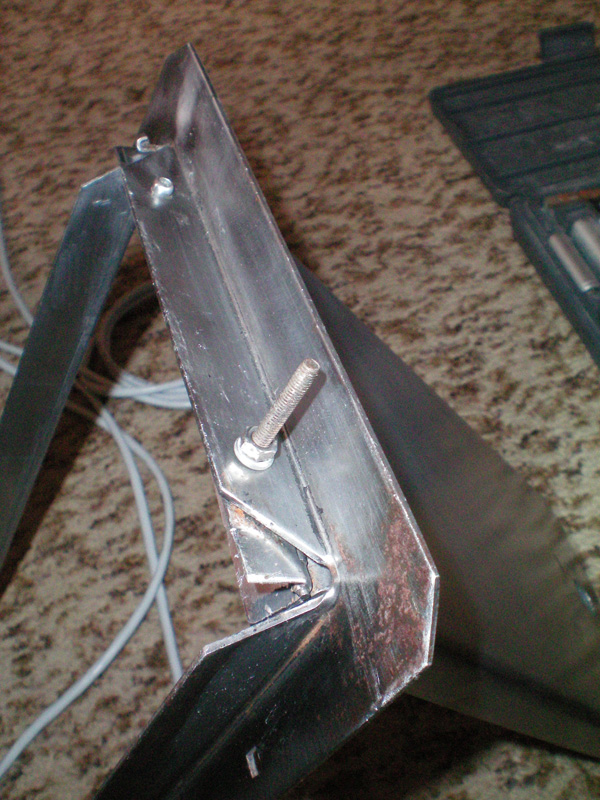

Now let's fix this :



Easy... I fold the metal, and I put a screw that I'll have to cut of course  Tongue

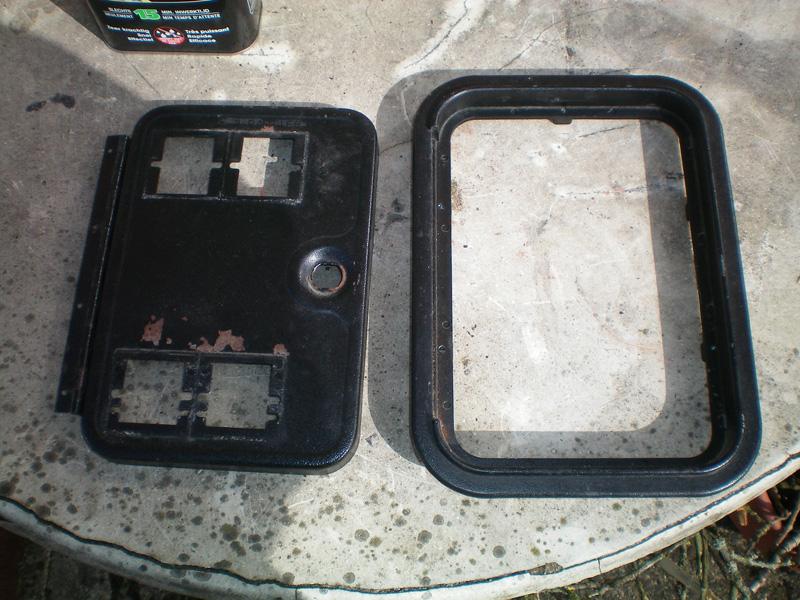

Now, let's do the same job for the coin doors + its frame :

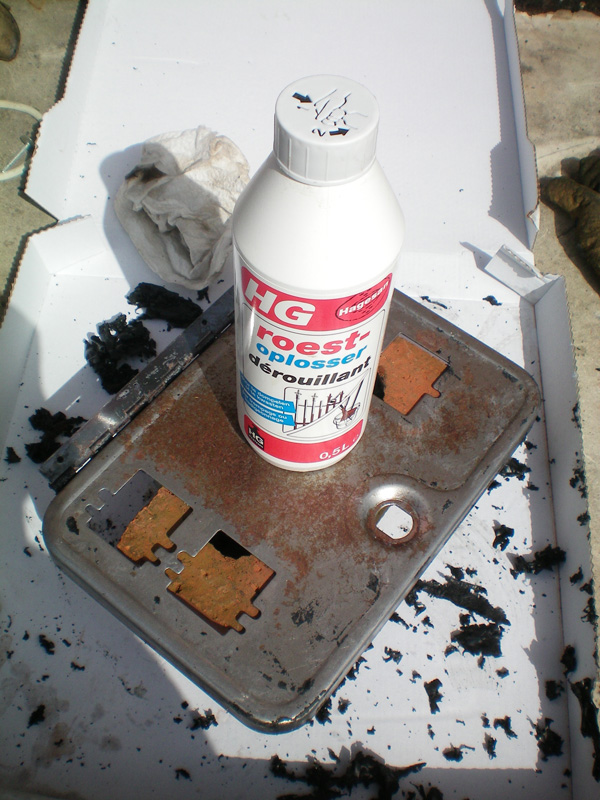

I'm also using this Rust Remover / protection :

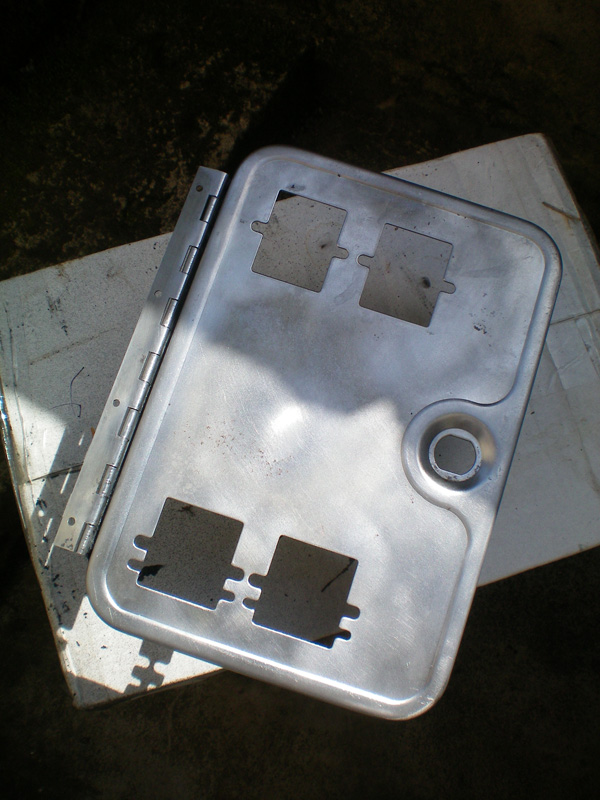

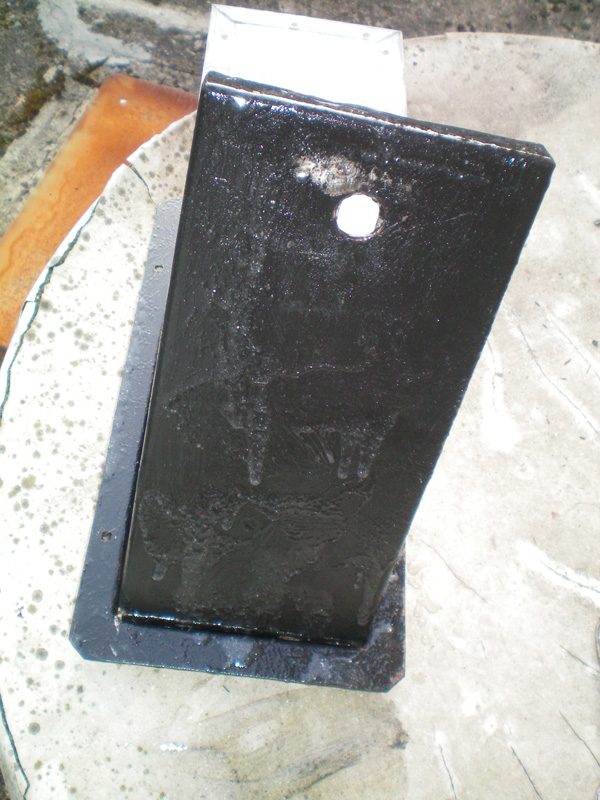

Ready to be painted :

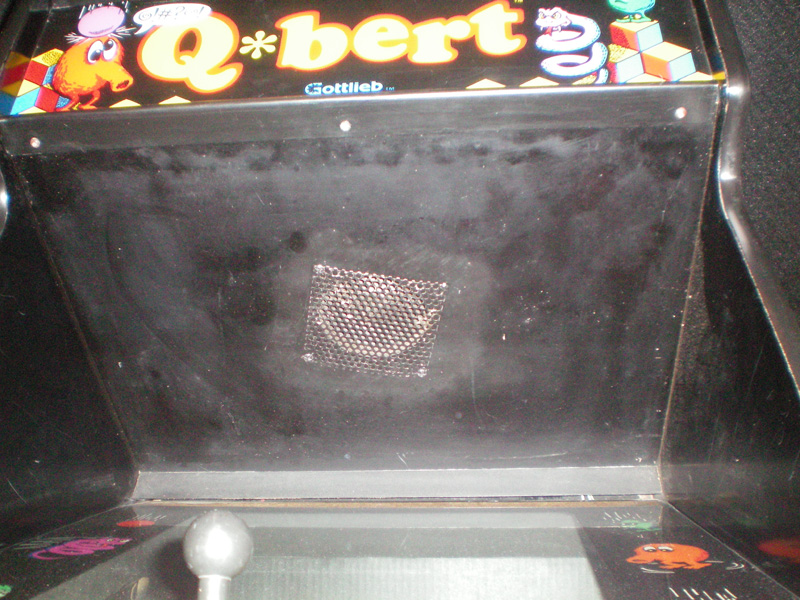

While I'm working with metal parts to repair, let's fix that ugly metal speakers grill  oppps  arrow



No picture during the paint process (but it's the same than always : Primer first, than the paint....several layers).

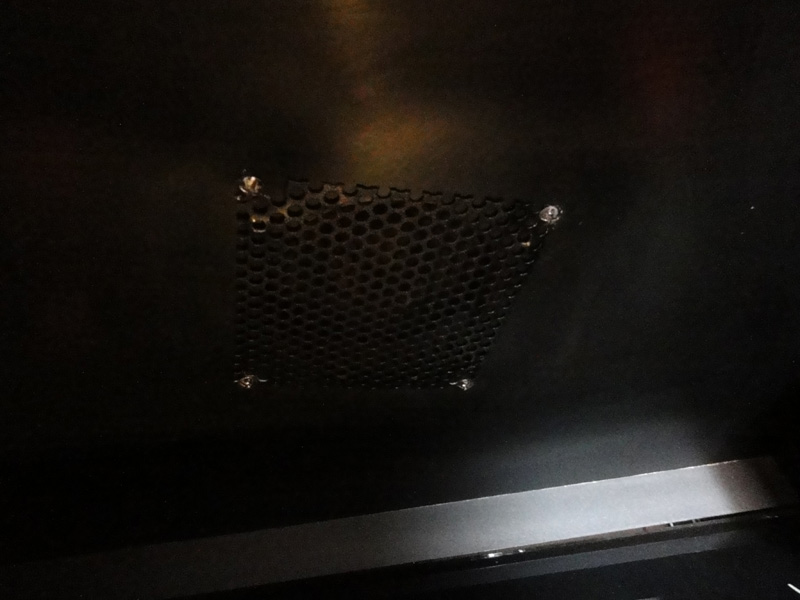

That speaker grill looks far better now :



(Mhhh, this picture reminds me that I may have to paint these 4 screws in black too...)

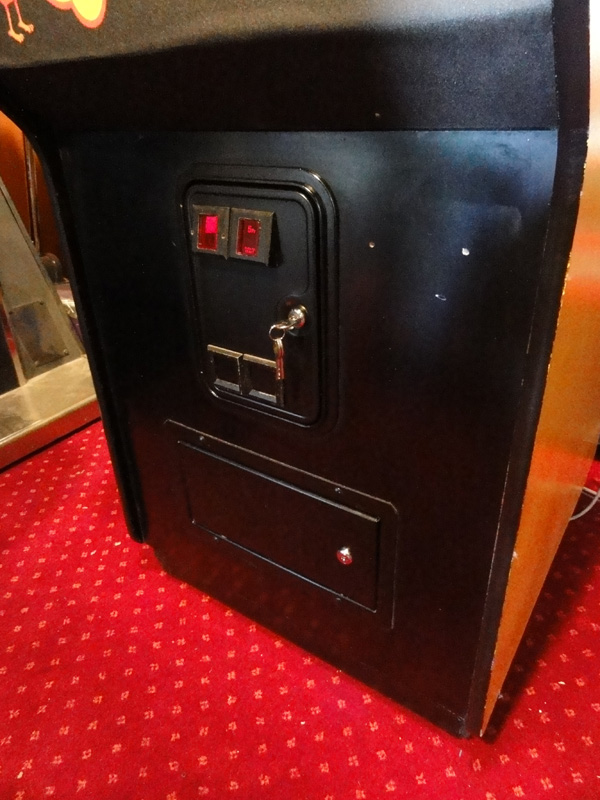

And of course, all the other parts :

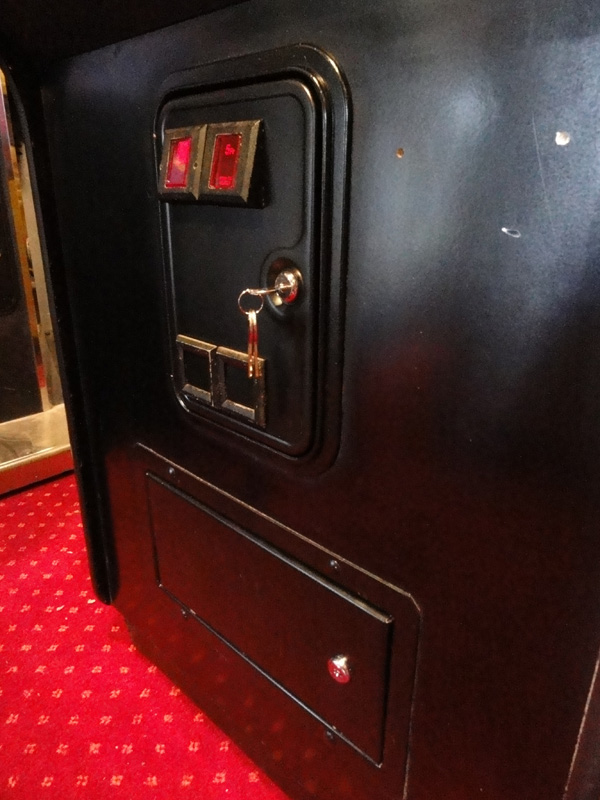

Looks far better now  Kiss
Logged

Superully
ArcadeLifeStyler'
***
Posts: 6265


Southern Part of Germany


View Profile
« Reply #79 on: June 18, 2010, 10:36:51 AM »

muuuuuuch better, bruno! Smiley

tow things i noticed:
- is the speaker grill attached like this (out of alignment) for a reason?
- are you going to fix those small wood damages to the front?
Logged

all i need is ... PONG - and a select few others: TOUCH ME, DRAGON'S LAIR, JOUST, ROBOTRON, MR DO, SAN FRANCISCO RUSH THE ROCK!!!
DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11534


Singe's castle


View Profile WWW
« Reply #80 on: June 18, 2010, 10:44:21 AM »

- is the speaker grill attached like this (out of alignment) for a reason?
- are you going to fix those small wood damages to the front?

Well, it's strange but the speaker grill has originally fixed in that position... so I keep it like that. There is no other hole around, so I presume it's really the original location / position  Cool.
There's no more wood damage in the front  Wink ... except two holes in the front (an operator plate was fixed there). It'll a very easy fix that I'll probably do  Wink
Logged

DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11534


Singe's castle


View Profile WWW
« Reply #81 on: June 19, 2010, 08:41:24 AM »

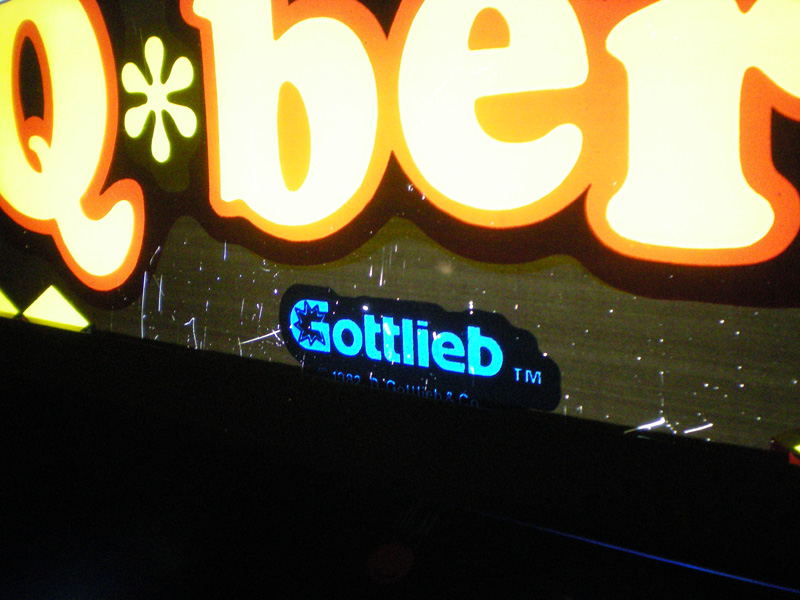

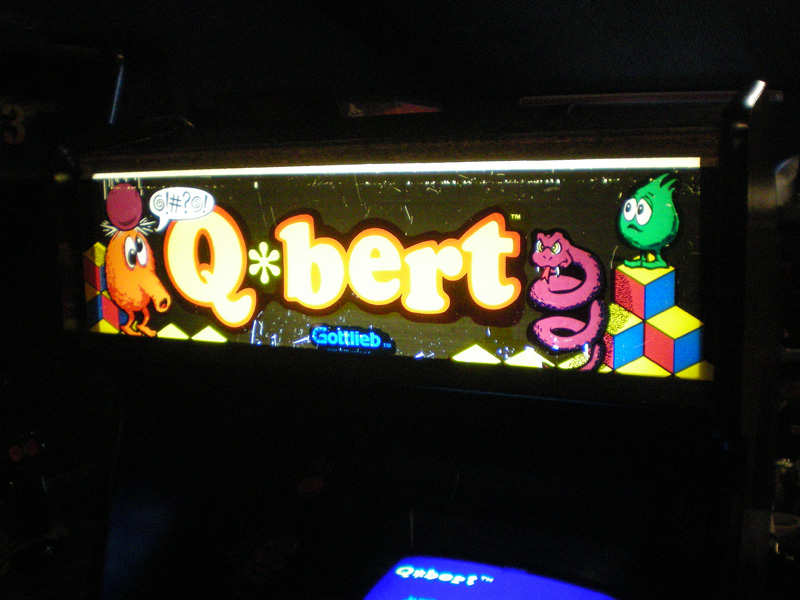

The original marquee, once lit, looks very poor  confused arrow





I already tried in the past to fix similar things on marquee... but I never succeeded to correct the problem properly.

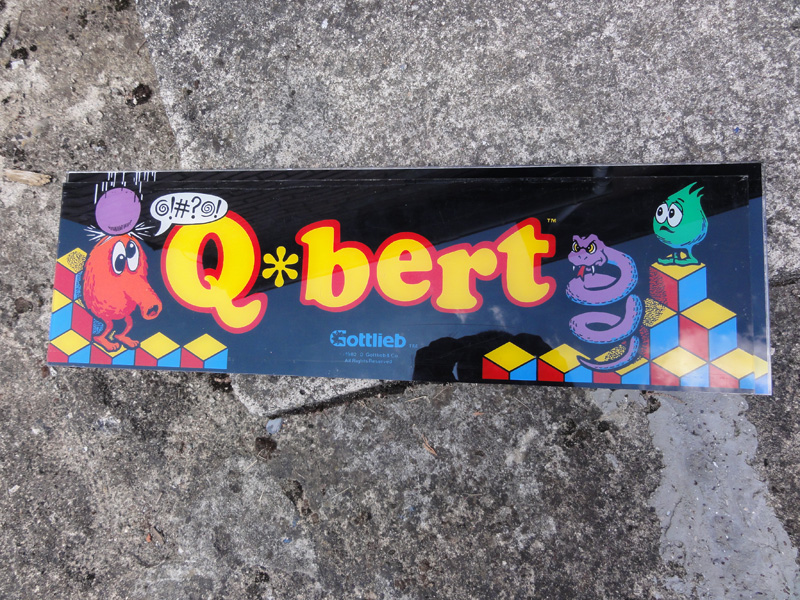

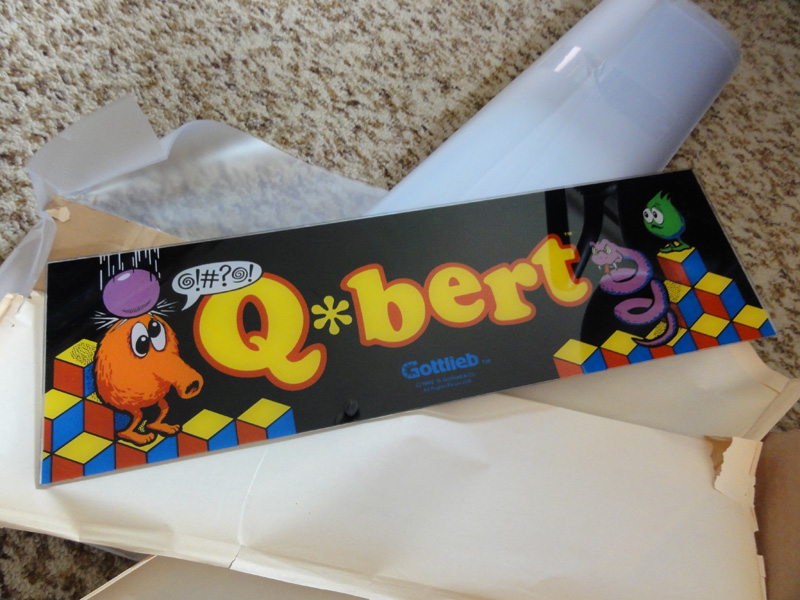

So let's go with an other marquee. Got this one from US in a perfect condition (NOS or repro.... but it's too perfect IMO to be a NOS, so let's presume it's a repro Roll EyesKiss  arrow



And here's a new difference between this Euro Q*Bert and the US model... the size of the marquee  arrow



The US one is bigger. Not a big difference... but a difference anyway :



Ok, Fortunately for me, the height of the US one won't be a problem, there's enough room... but I'll have to cut a small portion of the width  Cool

I'm not afraid to cut plexi anymore  arrow

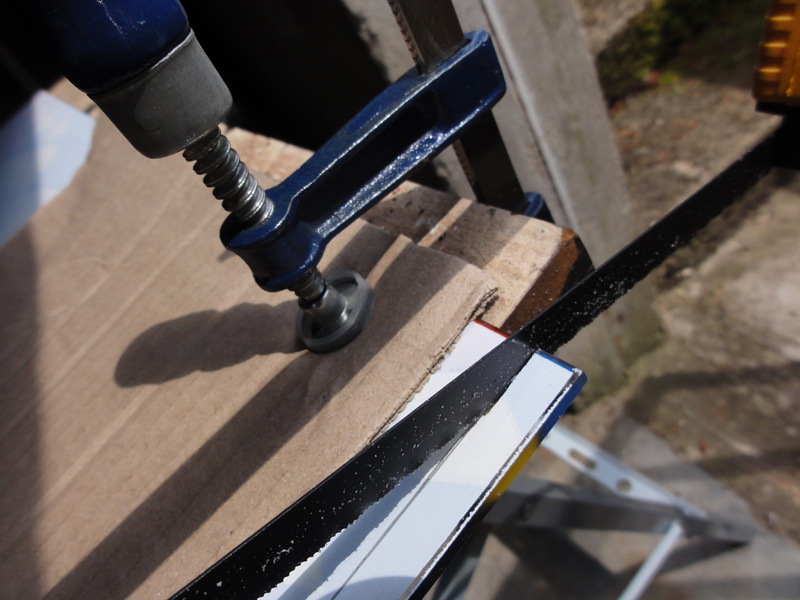

I do it manually (like I did in this old video), very slowly and with a larger saw in order to remain quite right....

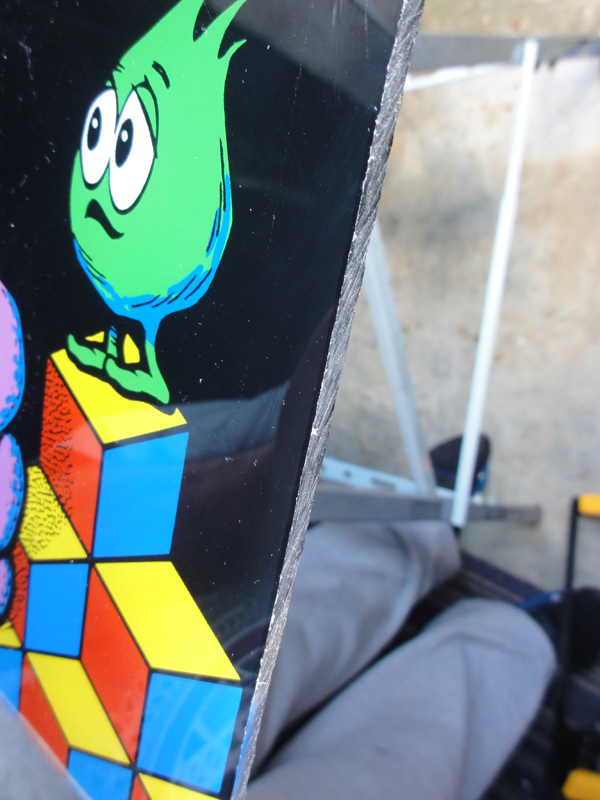

See, it's clean  arrow

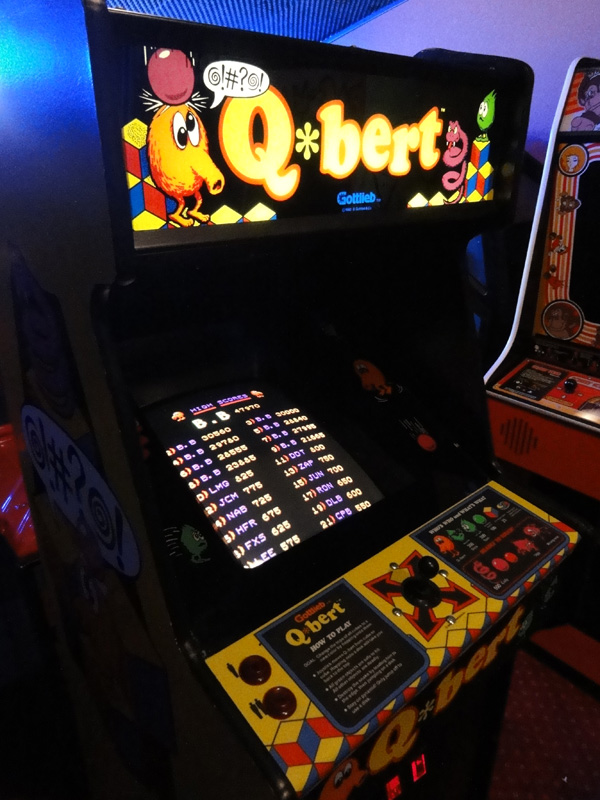

On location  Kiss  arrow




Logged

funkycochise
Member
**
Posts: 259



View Profile
« Reply #82 on: June 19, 2010, 08:57:13 AM »

yeah, great !!!
Logged
Muerto
ArcadeLifeStyler'
***
Posts: 3800


Denmark


View Profile
« Reply #83 on: June 19, 2010, 09:27:45 AM »

yeees!!!
Logged

DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11534


Singe's castle


View Profile WWW
« Reply #84 on: June 20, 2010, 10:49:22 AM »

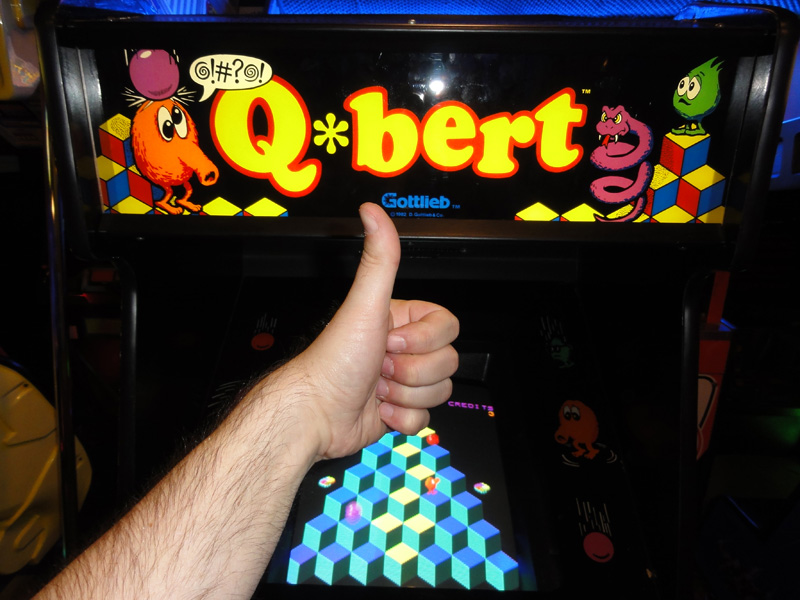

Yes... This is it!  Wink

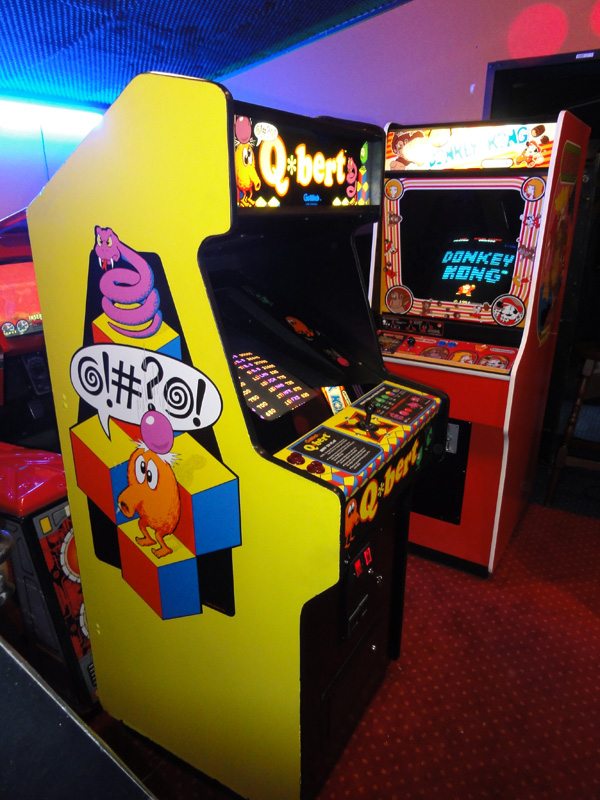

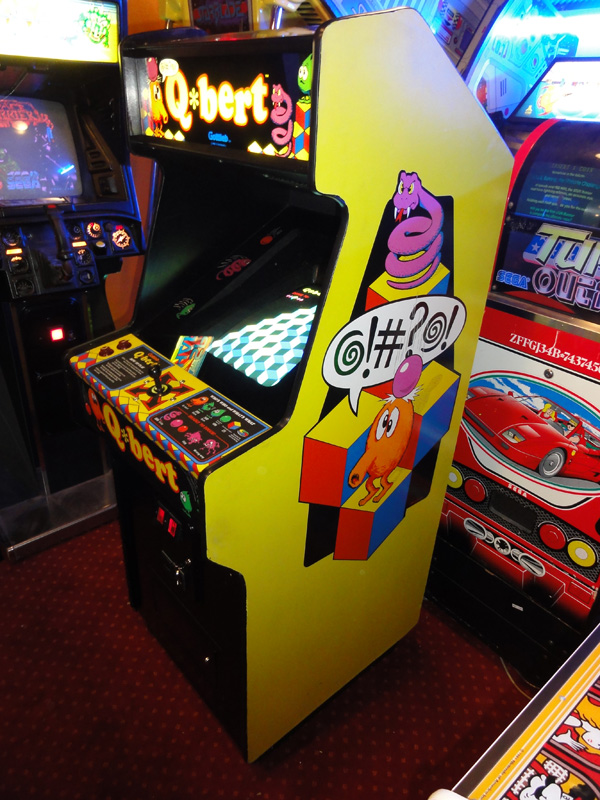

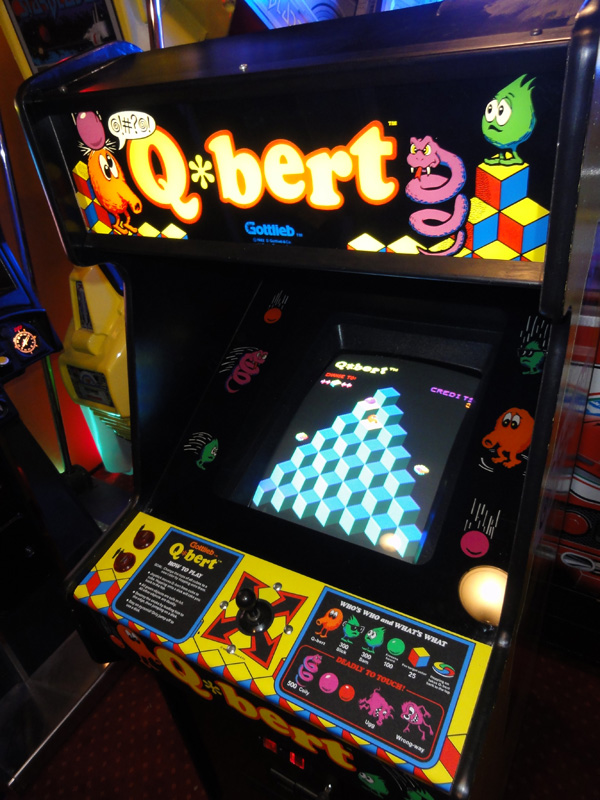

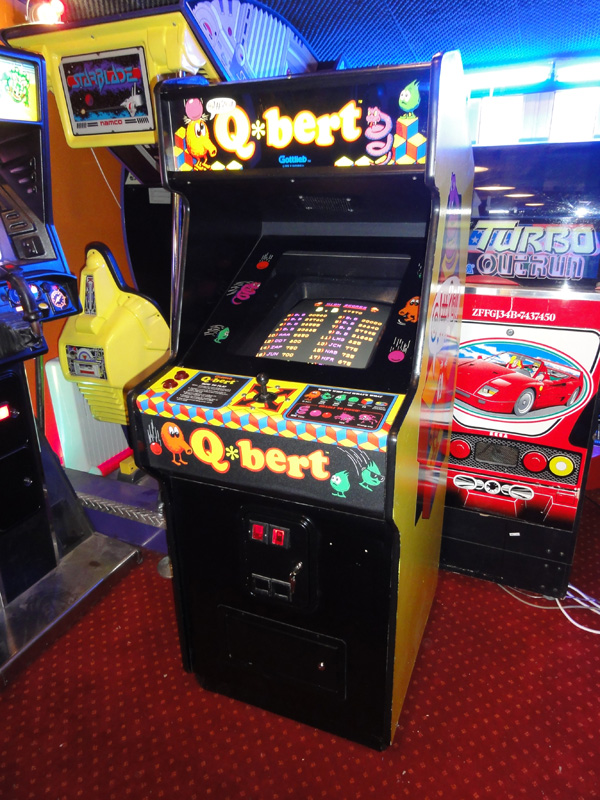

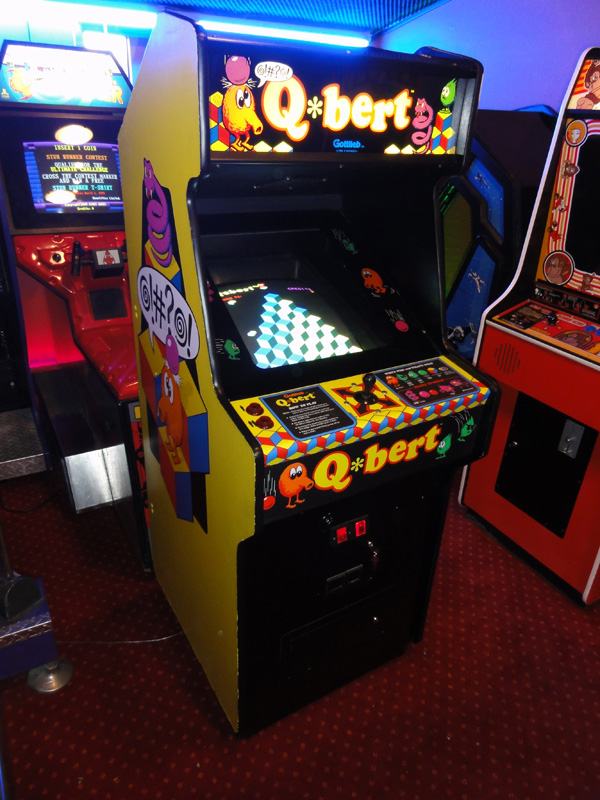

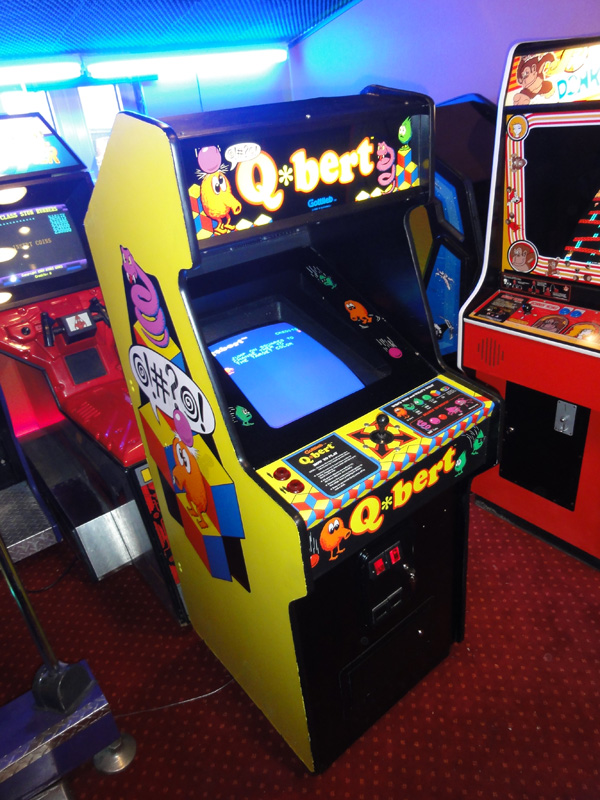

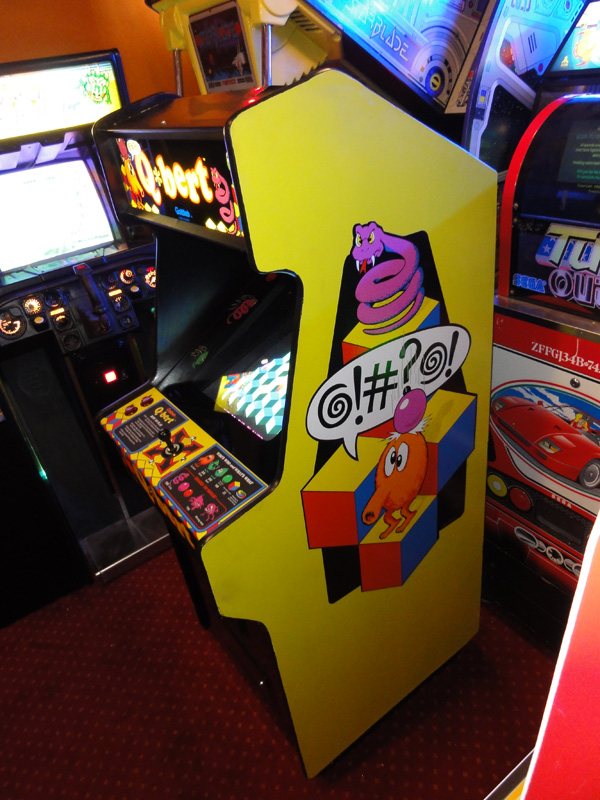

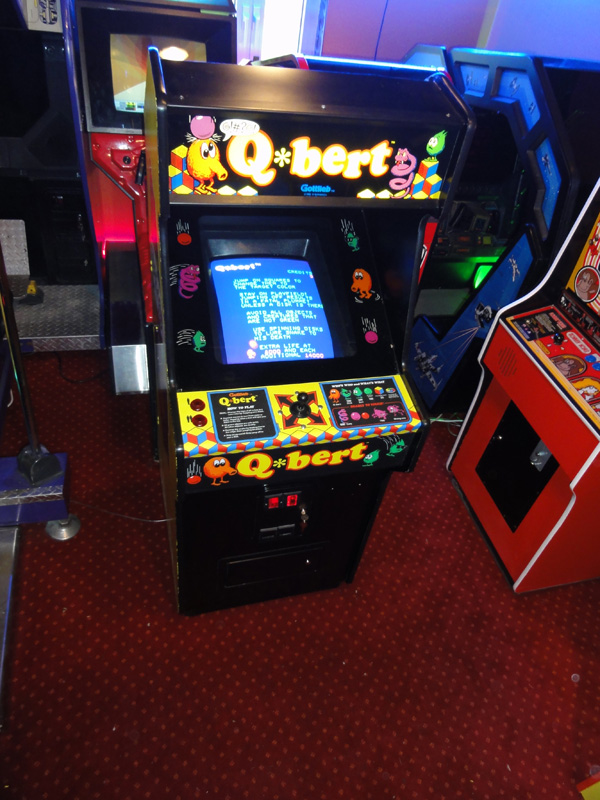

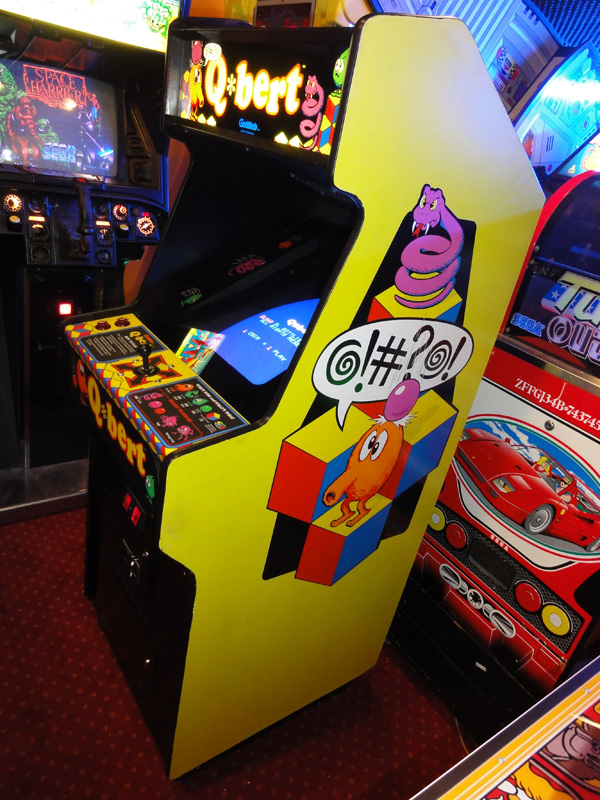

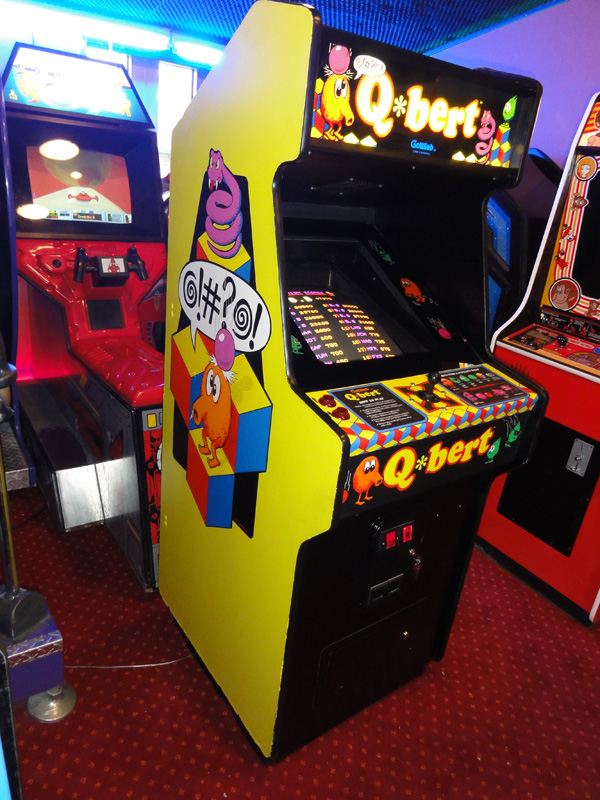

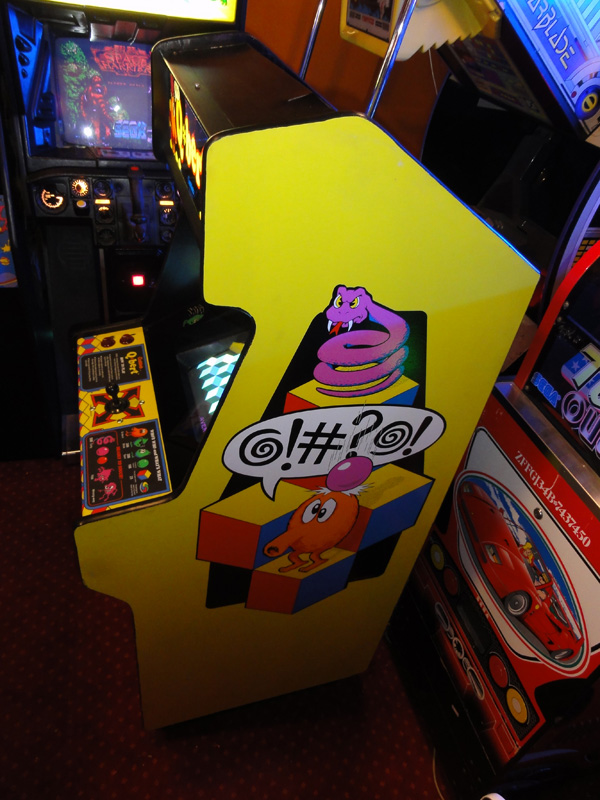

I consider this restoration done  Cool Yeps, maybe still some minors things to do later (change the screws colors on the panel, two small holes to hide,....) ... but ... hey? Who cares? This cabinet already rocks perfectly now!  Kiss Kiss Kiss .. and let me show you how it looks right here, right now :

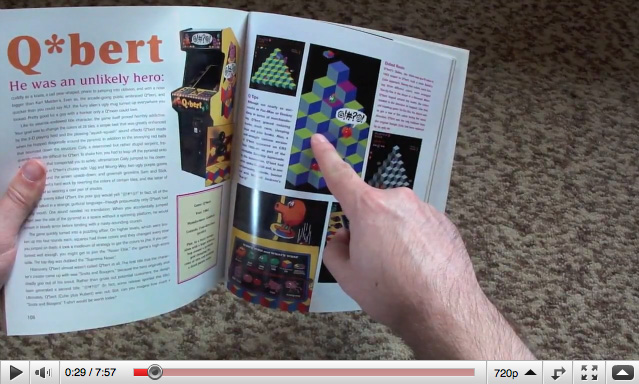

Now, take some pop-corn, click on this video... and because it's a 720HD vid' (do not forget to select that option on youtube), do not hesitate to select the full screen option!  Wink  arrow



Enjoy  Wink
« Last Edit: June 20, 2010, 10:53:27 AM by DarthNuno » Logged

Superully
ArcadeLifeStyler'
***
Posts: 6265


Southern Part of Germany


View Profile
« Reply #85 on: June 20, 2010, 11:20:27 AM »

incredible video, bruno! man, you went through a lot of trouble to film that, but the result was well worth it.  Space Ace Space Ace Space Ace

btw, which program did you use for that map route thingy? looks indiana jones-que Cool

I consider this restoration done  Cool Yeps, maybe still some minors things to do later (change the screws colors on the panel, two small holes to hide,....) ...

wanna take a bet that those screws will never get changed?  Wink i know that from my own experience: if i don't do something minor right now, i'm never going to do it!

but once again: PERFECT!!! i'm totally jealous, but you deserve that game.

oh, a couple more things: are you running the game on original hardware with an original monitor? do you have the knocker installed?
Logged

all i need is ... PONG - and a select few others: TOUCH ME, DRAGON'S LAIR, JOUST, ROBOTRON, MR DO, SAN FRANCISCO RUSH THE ROCK!!!
DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11534


Singe's castle


View Profile WWW
« Reply #86 on: June 20, 2010, 12:11:10 PM »

Thanks Ully,

I'm using AdvanceMame/Dos RGB via scart. No knocker but it's possible to interface it, I would say. I'll check for that.

Yes, doing a such video takes a lot of time (I worked on it yesterday all the evening, and all this morning). I'm using iMovie (on my dear iMac  Kiss Kiss Kiss), and the 'Indiana Jones' map route is an effect integrated in iMovie.

 Smiley
Logged

gyruss
ArcadeLifeStyler'
***
Posts: 2320


The Netherlands


View Profile
« Reply #87 on: June 20, 2010, 12:24:30 PM »

 Shocked Shocked looks like new again!
Logged
Etienne MacGyver
ArcadeLifeStyler'
***
Posts: 7512


The Netherlands


View Profile
« Reply #88 on: June 20, 2010, 12:57:49 PM »

i have only one word :

SUPER !!!!
Logged

Looking for Repro Decals ?  Visit my webstore !  arrow  http://www.easywebshop.com/arcadedecals
Superully
ArcadeLifeStyler'
***
Posts: 6265


Southern Part of Germany


View Profile
« Reply #89 on: June 20, 2010, 01:02:11 PM »

No knocker but it's possible to interface it, I would say. I'll check for that.

you NEED to have that knocker, bruno! go for it ... Space Ace
Logged

all i need is ... PONG - and a select few others: TOUCH ME, DRAGON'S LAIR, JOUST, ROBOTRON, MR DO, SAN FRANCISCO RUSH THE ROCK!!!
