« Reply #45 on: February 10, 2010, 11:42:26 PM »

Brilliant !  again to the same store with a complete cab ! LOL!

Or maybe I should learn how to create a bar code that would display '@!#?@!?' on the cash register!  Tongue

That would be something like this   Cheesy

The only thing the barcode generator gives an error here is this symbol "#"  Grin

So........is this an EAN code or UPC? lol Wink
Logged

Wanted: Cadillacs and Dinosaurs CPS1 Q-Sound pcb | SegaSonic The Hedgehog Art & instruction set
Etienne MacGyver
ArcadeLifeStyler'
***
Posts: 7550


The Netherlands


View Profile
« Reply #46 on: February 11, 2010, 12:54:23 PM »

dont know, just googled barcode generator  Cheesy

http://www.barcodesinc.com/generator/index.php
Logged

Looking for Repro Decals ?  Visit my webstore !  arrow  http://www.easywebshop.com/arcadedecals
arcadefever
Member
**
Posts: 232



View Profile WWW
« Reply #47 on: February 12, 2010, 03:23:38 AM »

 Grin HAHAHAHAHAHAHAHAHAHA Grin Grin Grin Grin

That was super funny !!!!!!!

Well done Nuno....well done  Grin Grin Grin Grin Grin Grin Grin
Logged

Level42
ArcadeLifeStyler'
***
Posts: 13541


Ridderkerk, arcade capital of Europe !


View Profile WWW
« Reply #48 on: February 13, 2010, 01:26:07 PM »

You know, just for the laughs I would be wanting to do this.... Grin
Logged

DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11612


Singe's castle


View Profile WWW
« Reply #49 on: February 28, 2010, 06:56:11 PM »

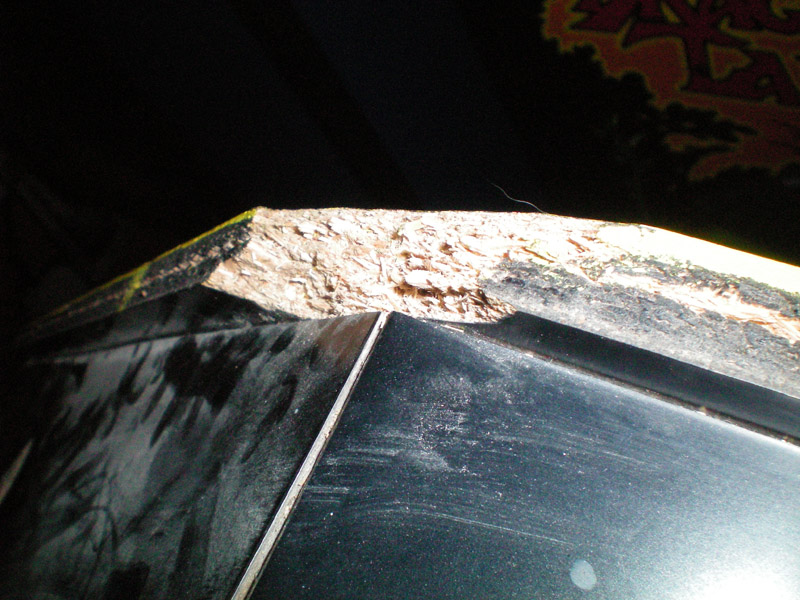

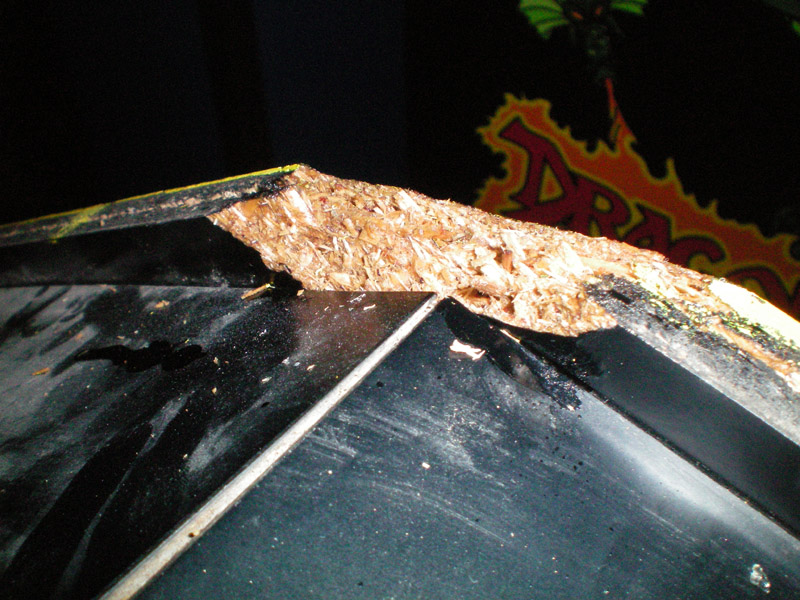

OK, now I've to fix that damaged corner  Undecided  arrow



Damn! I hate that kind of wood! So fragile  Evil

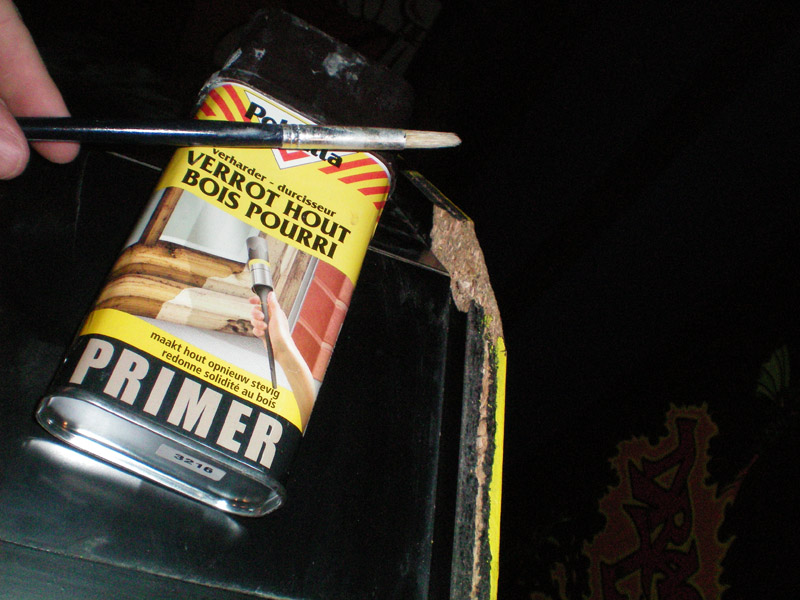

Ok, first let's remove with a metal brush the small parts of wood who aren't well attached. Before the wood filer, I need a good base. So I solidify the base with this PRIMER for wood  arrow



It's a kind of glue. After applying that primer, the wood is strong like a rock :

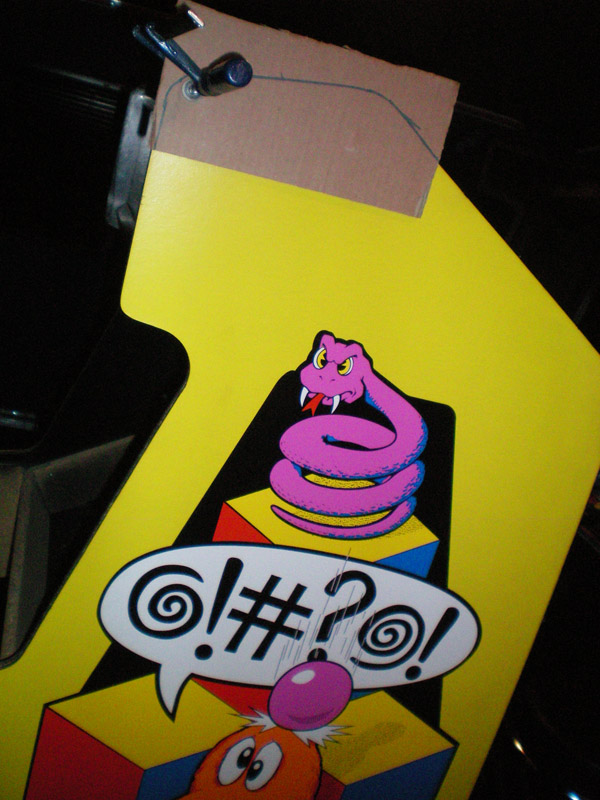

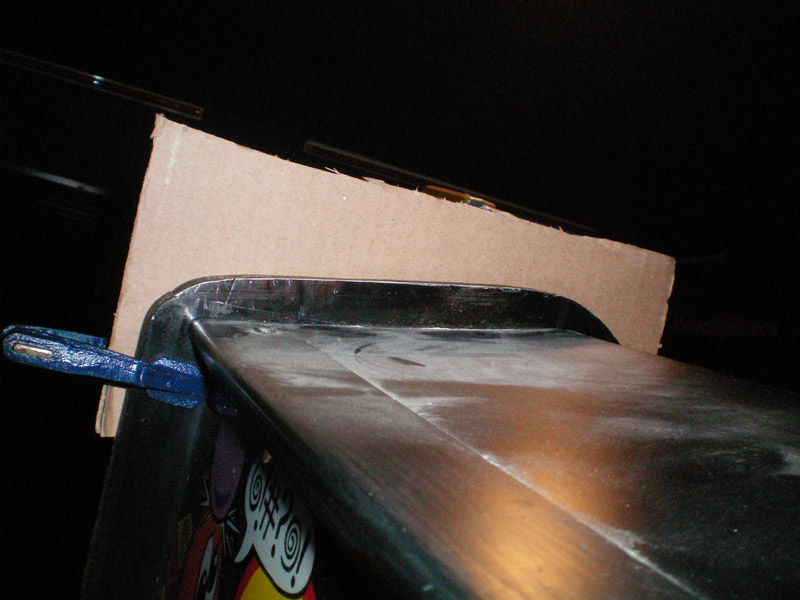

OK, I need to reproduce the shape. So let's make a pattern with the other 'corner side', like this  arrow

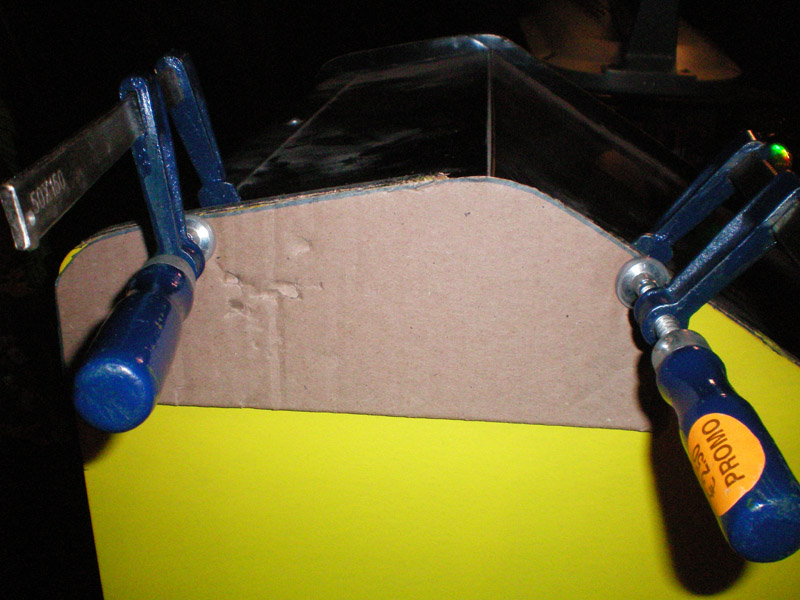

Here's the full pattern...



...cutting it...

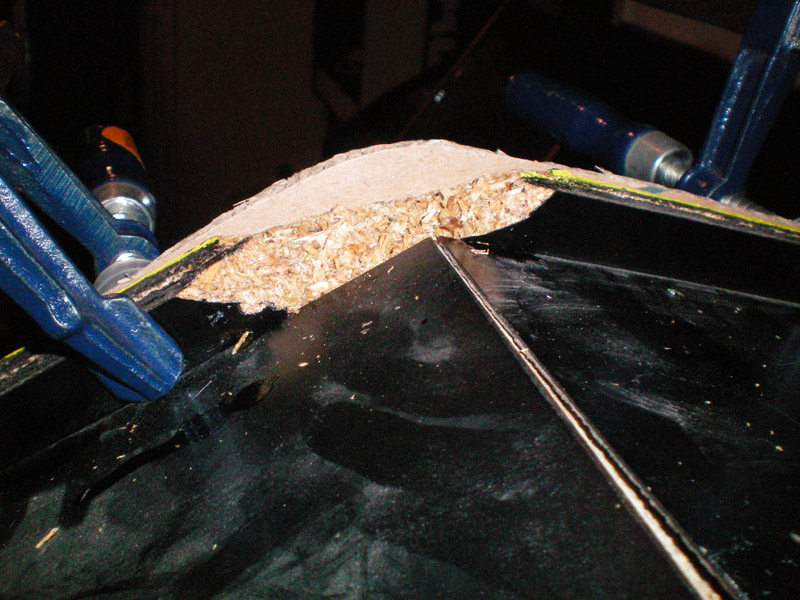

Done. Now I've a good guide for the corner to rebuild with the usual wood filler :

Logged

Superully
ArcadeLifeStyler'
***
Posts: 6273


Southern Part of Germany


View Profile
« Reply #50 on: February 28, 2010, 08:45:33 PM »

copying the shape of a cabinet is always the right "weapon of choice". can't wait to see that q*bert up and running!
Logged

all i need is ... PONG - and a select few others: TOUCH ME, DRAGON'S LAIR, JOUST, ROBOTRON, MR DO, SAN FRANCISCO RUSH THE ROCK!!!
DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11612


Singe's castle


View Profile WWW
« Reply #51 on: March 13, 2010, 08:04:31 AM »

Let's start to build the missing corner.

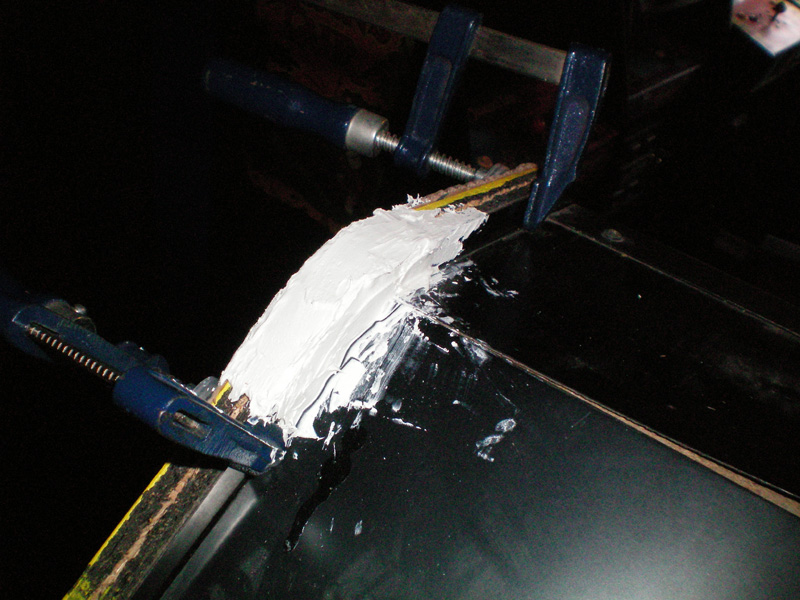

1st pass of wood filler :



Yes, because there too much wood missing, it's better to do several layers. It'll be more resistant.

2nd layer :

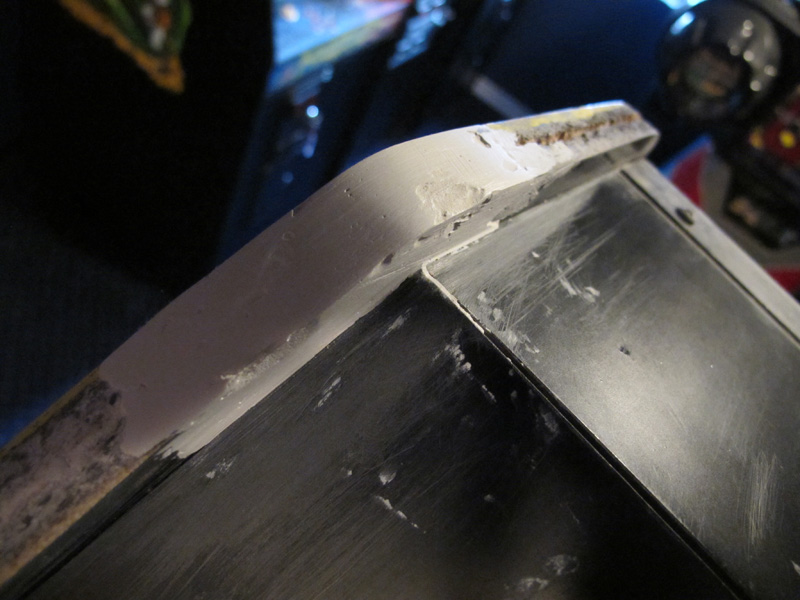

After sanding, it's almost done :

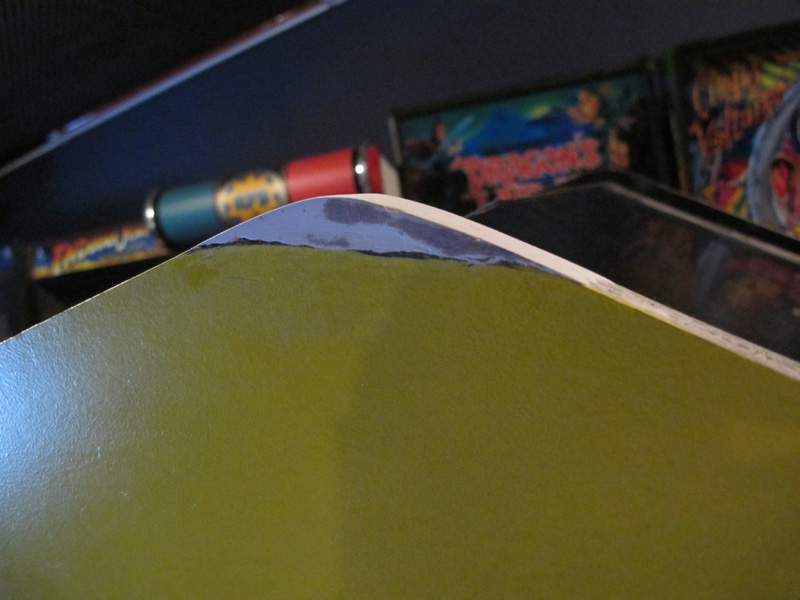

Few adjustments later... this is it  Kiss  arrow



 pacman

Logged

Muerto
ArcadeLifeStyler'
***
Posts: 3823


Denmark


View Profile
« Reply #52 on: March 13, 2010, 08:49:13 AM »

very nice, a little more filler and itīs on to painting  Smiley
Logged

Superully
ArcadeLifeStyler'
***
Posts: 6273


Southern Part of Germany


View Profile
« Reply #53 on: March 13, 2010, 08:41:54 PM »

Few adjustments later... this is it

nitpicker-mode ON:

i can still see holes there  Wink  Cool

nitpicker-mode OFF
Logged

all i need is ... PONG - and a select few others: TOUCH ME, DRAGON'S LAIR, JOUST, ROBOTRON, MR DO, SAN FRANCISCO RUSH THE ROCK!!!
DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11612


Singe's castle


View Profile WWW
« Reply #54 on: March 21, 2010, 08:53:55 AM »

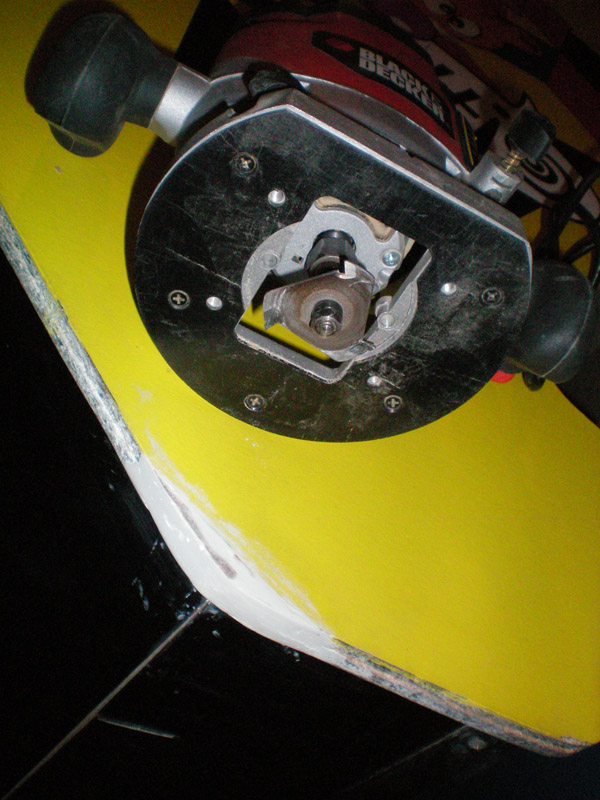

Next step : "The Trench". Router is ready  arrow



note : the brown part is a remainder of paperboard (used of the pattern replica) which is now 'encrusted' with the wood filler Wink

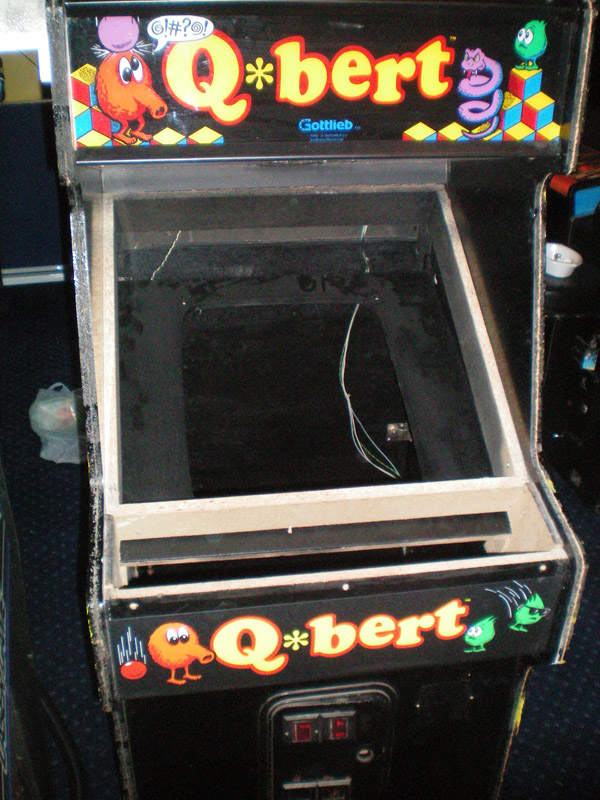

Now that I'm working on the top of this cab, I can notice this on the other upper side  arrow



...evidences of previous repairs. That upper part has been replaced or repaired. See the screws for example. Fine but why wasn't the new trench dug in the middle? Let's dig a new 'centered' one  arrow



The trench is a little bit too broad now, but it won't be a problem because I'll use hot glue during the T-molding operation  Wink

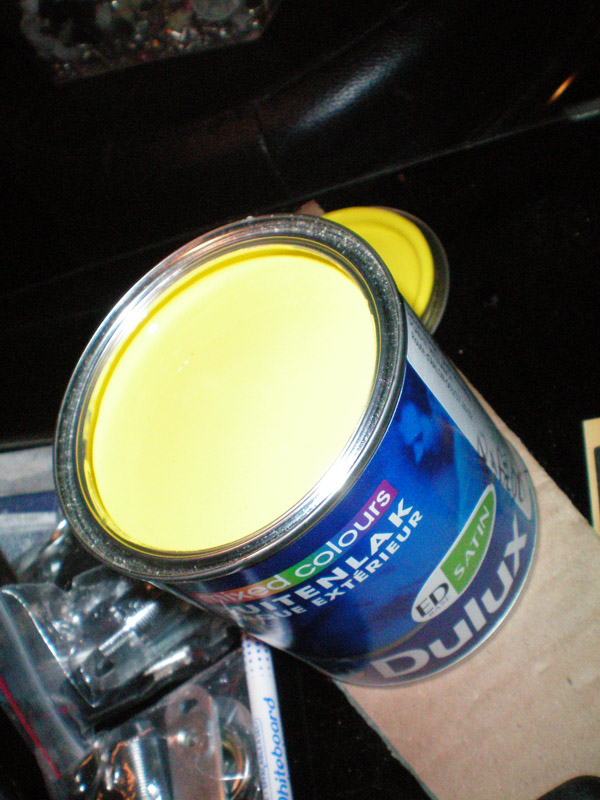

It's time to use my Q*Bert custom yellow paint  Kiss  arrow

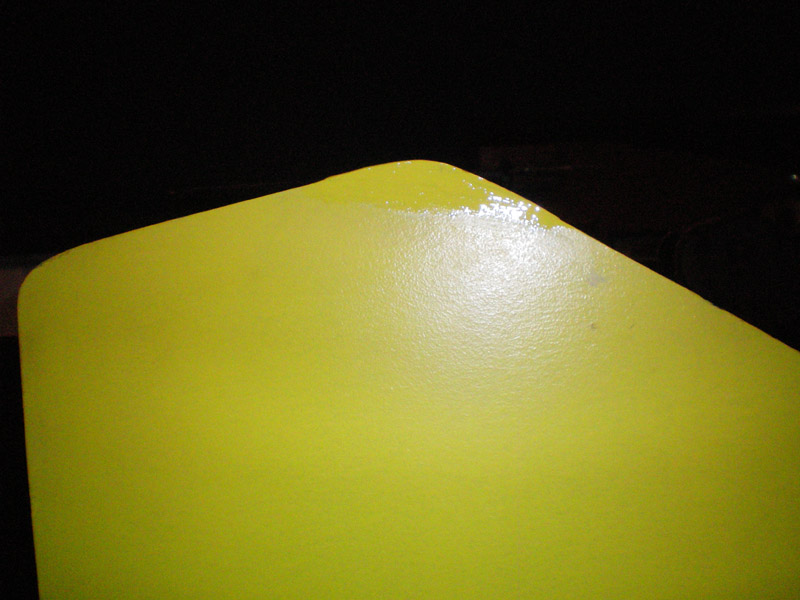

Beware... fresh paint  Tongue  arrow

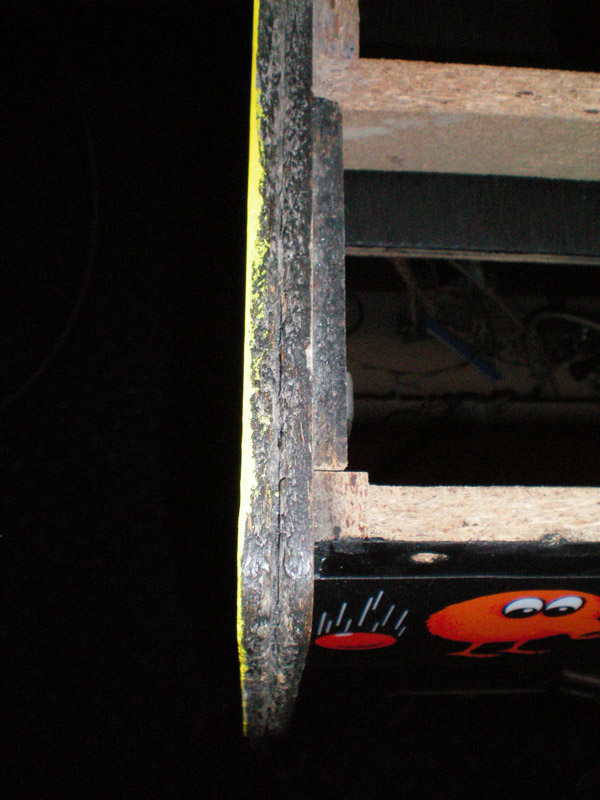

Before the T-Molding, I've to paint the 'trench' in black. The wood used on that cabinet is not the best one. After so many years, the wood inflated slightly (humidity I presume...), and on some areas the wood could very slightly exceed the T-molding. For example on that area :



Here's the tools now :

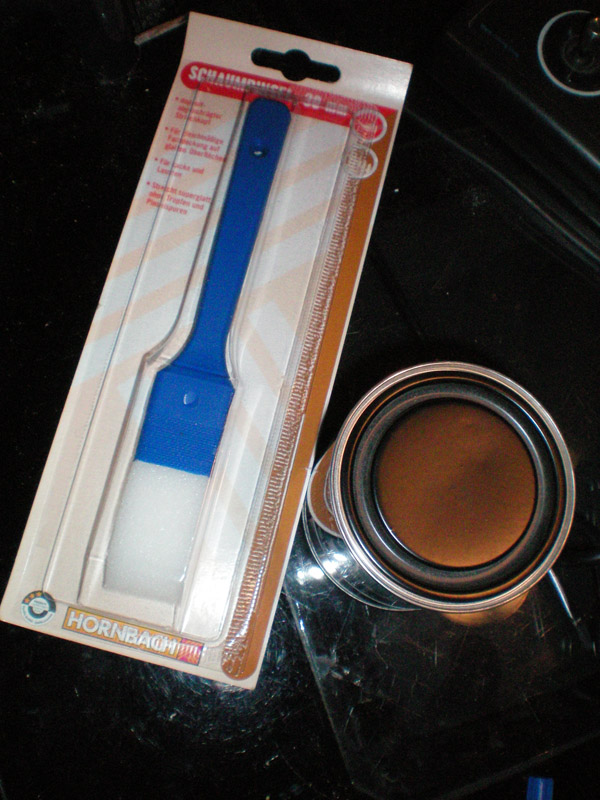

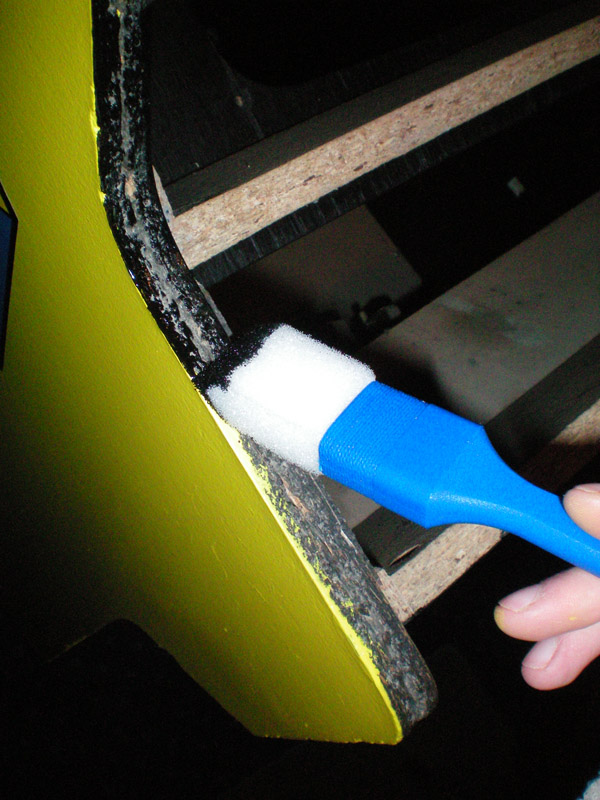

Let's avoid mistakes here  Roll Eyes That's the reason why I'm using that special brush :



Done :

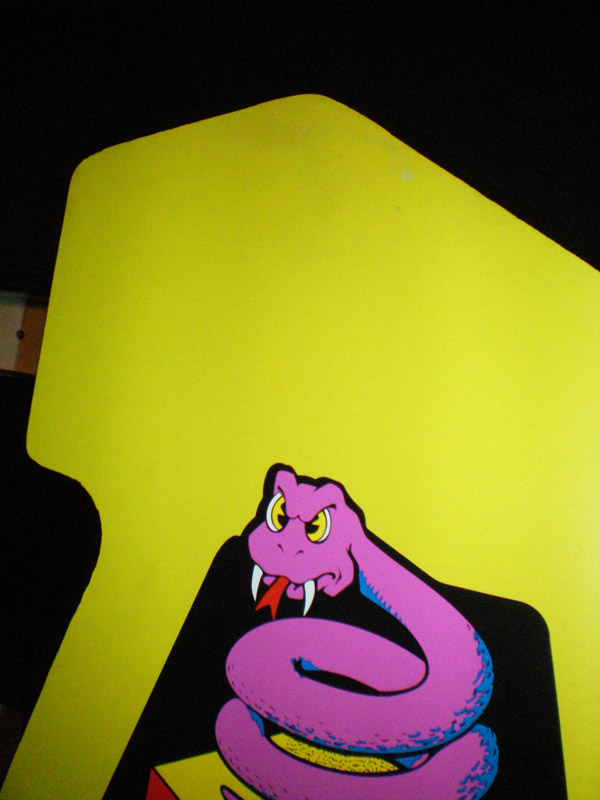

Oh, and of course a picture of the side 'repaired'  Kiss  arrow



Logged

Etienne MacGyver
ArcadeLifeStyler'
***
Posts: 7550


The Netherlands


View Profile
« Reply #55 on: March 21, 2010, 09:14:21 AM »

Like new bruno !
Logged

Looking for Repro Decals ?  Visit my webstore !  arrow  http://www.easywebshop.com/arcadedecals
scr33n
ArcadeLifeStyler'
***
Posts: 1674



View Profile
« Reply #56 on: March 21, 2010, 09:29:32 AM »

Great job Bruno !!!  Kiss Space Ace
Logged

PROJECTS FROM SCRATCH:

Galaga - PacMan - Donkey Kong Red Cab - Track & Field Upright - Tempest - Burgertime - Gyruss - Defender - Track & Field Cocktail - Robotron 2084

RESTORATIONS:

Q*bert - Timber
Superully
ArcadeLifeStyler'
***
Posts: 6273


Southern Part of Germany


View Profile
« Reply #57 on: March 21, 2010, 11:20:00 AM »

well done, bruno - and the color seems to be spot on. the scanner they are using at "your" home depot seems to be producing excellent results!
Logged

all i need is ... PONG - and a select few others: TOUCH ME, DRAGON'S LAIR, JOUST, ROBOTRON, MR DO, SAN FRANCISCO RUSH THE ROCK!!!
ckong
ArcadeLifeStyler'
***
Posts: 3175


The Netherlands


View Profile
« Reply #58 on: March 21, 2010, 09:02:56 PM »

Nice work Bruno.

I never saw such a brush before, but now I have, and I'm sure that it will be used in my future restorations.
Logged
Superully
ArcadeLifeStyler'
***
Posts: 6273


Southern Part of Germany


View Profile
« Reply #59 on: March 22, 2010, 07:41:47 AM »

perhaps i'm stupid, but what can that brush do what others can't? does it allow for more delicate work?
