« Reply #210 on: January 08, 2013, 12:13:01 AM »

Yeah game needs to run first of course.

I don't remember which version I played BITD. It was 1 game only in London. Back then I found all the video going on so fast totally confusing. Watching the video now it's no problem at all. Times have changed  Grin Grin
Logged

uncletom
Member
**
Posts: 243



View Profile
« Reply #211 on: January 08, 2013, 08:19:40 AM »

Level42, you need to be twice as fast as the game to master it. About 2 cups of coffee will do it.

I would try to  use the original projectors as these are CRT types and as such have the best performance compared to any LCD or DLP projectors today, even if the new projectors have better brightness and colors. The convergence can surely be adjusted if need be.

That "v-mix" PCB seems like the Gen-lock for the Amiga, I remember. A Video-mixing hardware that merges the layers together, sort of like putting subtitles into a film. The G3 is simply a dual screen laser game, and could infact be set up similarly like the Darius by Taito, that is if Bruno would like a smaller version of G3 later when he decides to open a karate dojo for girls only in his gym.
Logged
Jason42
Jr. Member
*
Posts: 19


View Profile
« Reply #212 on: January 08, 2013, 09:18:03 AM »

Thanks guys for your support on this!  Smiley

just a question: what inputs the projectors have? i mean... the G3, a desktop with dual vga output, a couch in front of the players... space desktop (or home theater) Cheesy

In very short, there are two laser disc players sending the left + right signal (via BNC) into a special board (along all the boards that run the game) called 'V-MIX'. These two laser disc players produce the background of the game (CGI graphics, at the top of the technology back in 1994).
In addition of the background image (left+right), there are 2 set of boards in charge of computing the enemy ships and all the mechanic of the game. Why 2 set of boards? Well one set per screen! Left and Right! So each set of boards are sending the images processed (via usual RGB signal) into the same 'V-MIX' than the one used by both laser disc players. Do you still follow?  roll eyes
OK, so the purpose of that unique 'V-MIX' board is ... to mix the images sent by the LD player and the images sent by the two set of boards, and produce two final video signals to send to the 2 projectors. The input of the projectors are 4 BNC for a native RGBS signal coming twice from the V-MIX board.  Cool A true piece of technology at the time!

Looks like the V-Mix board just use SCART signals for the game and Composite for the background, and giving SCART signals to the projectors... Yep, a true piece of technology.
(in case of debug, you can make a BNC to SCART, it may work...)

Love that tech stuff.

So, do you plan using the original projectors or are you going to try and hook up some new one's ?

I guess at least the light intensity would be a lot better on new one's. Also the CRT one's can have convergence problems and they eat a lot of power....

Do you even know if they still work ?

Normally I'm all for keeping things original, but I played Daytona2 on the full-motion version and that one had the projectors replaced by modern day beamers and the picture was simply amazing....

(Sorry if any of that info is already on here....I love this thread but some things I forgot/didn't read  oppps oppps)

I don't think there's modern projector that use SCART input Smiley (and, making a upscaler to use VGA inputs are really costy and painful (if you want to do it yourself)) (you maybe want to take projector you can mod, it may save a lot of money by not buying 2*$300 of lamps each 2000hours Smiley )

Level42, you need to be twice as fast as the game to master it. About 2 cups of coffee will do it.

I would try to  use the original projectors as these are CRT types and as such have the best performance compared to any LCD or DLP projectors today, even if the new projectors have better brightness and colors. The convergence can surely be adjusted if need be.

That "v-mix" PCB seems like the Gen-lock for the Amiga, I remember. A Video-mixing hardware that merges the layers together, sort of like putting subtitles into a film. The G3 is simply a dual screen laser game, and could infact be set up similarly like the Darius by Taito, that is if Bruno would like a smaller version of G3 later when he decides to open a karate dojo for girls only in his gym.

Or the raster bender from furrtek Smiley http://furrtek.free.fr/?p=crea&a=rastbend
« Last Edit: January 08, 2013, 09:28:51 AM by Jason42 » Logged
Jason42
Jr. Member
*
Posts: 19


View Profile
« Reply #213 on: January 08, 2013, 09:23:03 AM »

(oops, double-post fail  oppps )
Logged
Level42
ArcadeLifeStyler'
***
Posts: 13554


Ridderkerk, arcade capital of Europe !


View Profile WWW
« Reply #214 on: January 08, 2013, 09:38:06 AM »


I would try to  use the original projectors as these are CRT types and as such have the best performance compared to any LCD or DLP projectors today, even if the new projectors have better brightness and colors. The convergence can surely be adjusted if need be.

So If brightness and colors are better on new LCD and DLP projectors, why do CRT projectors still have the best performance ? The only advantage I see is analogue and thus infinite amount of colors, but I don't think this outweighs the disadvantages. The biggest disadvantage of these old CRT projectors is brightness, right next is convergence issues, and of course they can be adjusted, but not everybody is up to it.

Normally I'm all for keeping to CRT stuff for old games, but since the picture is projected on a big white screen, I don't really see the problem.

Finding a modern projector with RGB inputs with 15kHz sync may indeed be a challenge, and I wonder how the el-cheapo Converters would perform with this game.


But anyway, we are just dreaming up stuff, Bruno has other worries/ goals now.

What I do wonder: wouldn't it have been a good idea to first get the game running before moving and re-assembling everything....I mean.....what if you can't get it running ? Or is that simply NO option WinkWink
Logged

Etienne MacGyver
ArcadeLifeStyler'
***
Posts: 7587


The Netherlands


View Profile
« Reply #215 on: January 08, 2013, 10:27:49 AM »

What I do wonder: wouldn't it have been a good idea to first get the game running before moving and re-assembling everything....I mean.....what if you can't get it running ? Or is that simply NO option WinkWink

Just mame it  Grin Grin Grin
Logged
mumboking
Jr. Member
*
Posts: 33


Lurker


View Profile
« Reply #216 on: January 08, 2013, 11:00:51 AM »

What I do wonder: wouldn't it have been a good idea to first get the game running before moving and re-assembling everything....I mean.....what if you can't get it running ? Or is that simply NO option WinkWink

Just mame it  Grin Grin Grin

Or... PS1
Logged

I enjoy reading about arcade cabinets. I don't own one though... Sad
Luigi
ArcadeLifeStyler'
***
Posts: 1683



View Profile
« Reply #217 on: January 08, 2013, 11:47:22 AM »

This is really exciting.....I mean the process of re-building the theater....that technical blabla is really boring  Wink  Grin
Logged
Belike
ArcadeLifeStyler'
***
Posts: 4738


Budapest, Hungary


View Profile
« Reply #218 on: January 08, 2013, 12:03:07 PM »

This is really exciting.....I mean the process of re-building the theater....that technical blabla is really boring  Wink  Grin
+1, pics talk. Grin
Logged
uncletom
Member
**
Posts: 243



View Profile
« Reply #219 on: January 08, 2013, 12:05:53 PM »

Did Bruno test the 3D game hardware at some point? I have seen him test some LD-player that worked. But not the CG stuff.

As for the LCD/DLP vs CRT projectors, performancewise I mean any panning and quick movements are shown better with a CRT than LCD.
« Last Edit: January 08, 2013, 12:07:33 PM by uncletom » Logged
DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11639


Singe's castle


View Profile WWW
« Reply #220 on: January 08, 2013, 02:31:22 PM »

EPISODE 03: "Borowski? Who is Boroswki?"

Starring : Darth Nuno, the carpet seller


Before going further on the reassembling, I need to clean/restore these 6 player base supports, or named 'Gun Base Assy' by Namco in the manual.



As you can see, the '5 years hibernation' of these parts inside my garden shed causes additional damage on them :

Vinyl corrugated!  Sad  arrow



...failed adhesively / detached...



Mhhh, no other choice than to restore them! Damn it! It's gonna be a massive *additional* work!  Ghost

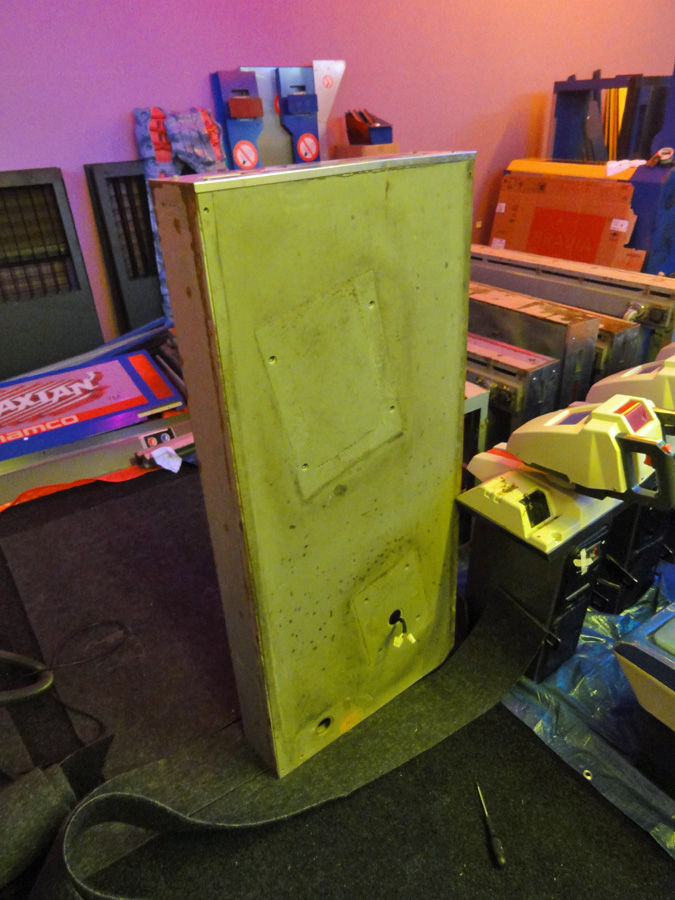

Ok, let's see what I can do. Here's the front view of the first 'Gun Base Assy'  arrow



Arf... most of the screws are ... rusted! And no way to remove them without damage them!!!



Black 'wires/connectors protection' panel removed... but now the leadscrew is broken inside!



Mhhh, let's hope I won't have too much trouble with these rusted screws...



Argh!?



No!   Evil



So once again, no other way than to break them with a drill, like this!  arrow



I finally can remove the back part of the 'Gun Base Assy'. It contains a tube light :



Ok, everything is now removed. Do you spot the black spots on the vinyl? Cigarette Burns...all of them!  arrow

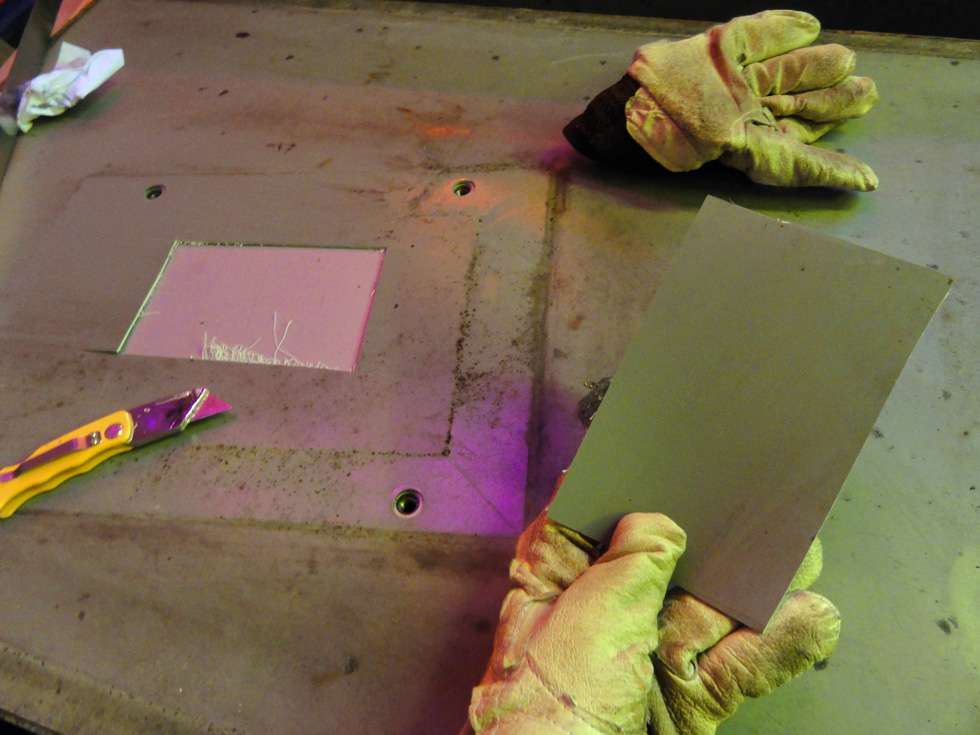

I cut a part of the vinyl -a clean and undamaged part- located in a hidden place, under the seat...



...let's remove it!

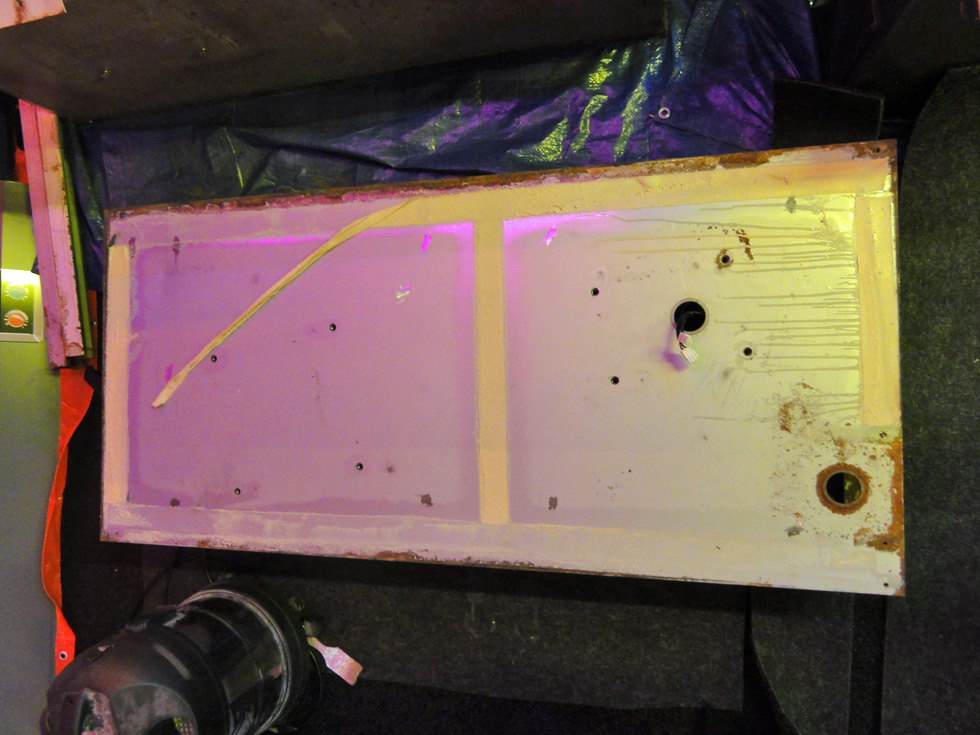

It's fixed with strong double-sided adhesive tape :



I use Thinner to remove it. It works great, but this liquid is very toxic! I cannot breath that for too long... It smells like hell!

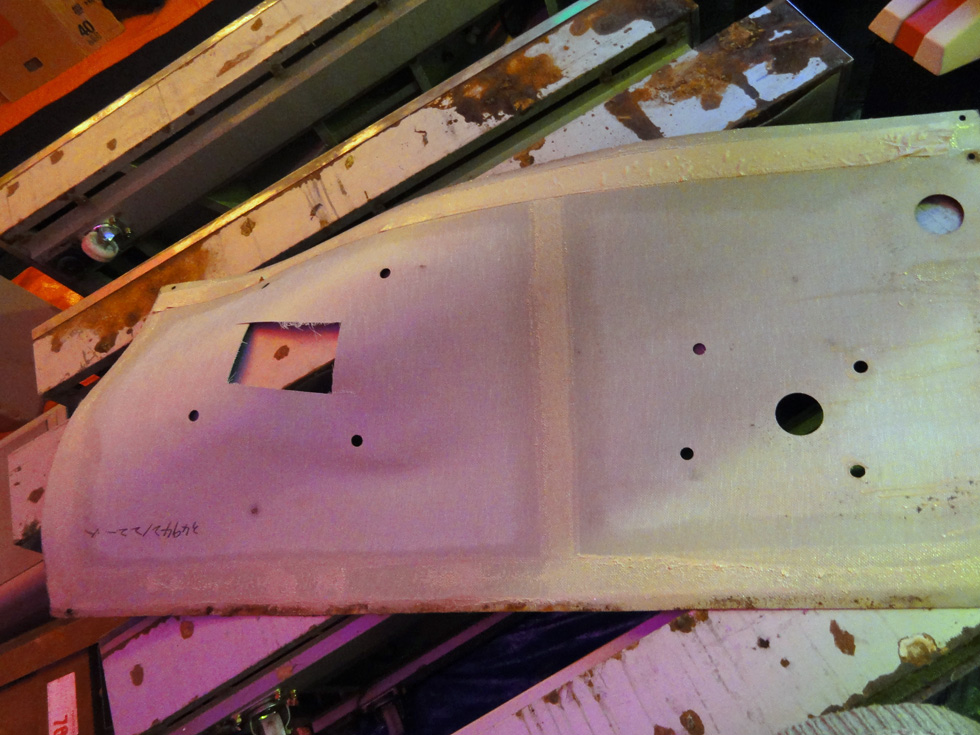

No more glue!  arrow



The back of the original vinyl ...



...and its reference I presume? Whatever...



... because I'll use the 'clean' vinyl sample in order to find a brand new one!

After several carpet/vinyl shops visited, I finally found a very close match ...in the same shop where I got my carpet!  Cool

Darth Nuno : Here's the vinyl I'm looking for...
The seller : Borowski!
Darth Nuno : Borowski? Who is Boroswki?
The seller : It's the vinyl you're looking for! Boroswki 4604
Darth Nuno :Perfect! Let go for it!



The End
« Last Edit: January 08, 2013, 05:56:34 PM by DarthNuno » Logged

Luigi
ArcadeLifeStyler'
***
Posts: 1683



View Profile
« Reply #221 on: January 08, 2013, 02:41:08 PM »

OUCH...you better get rid of as much of these rusted screws as possible, Bruno. The keep rusting 'til they break Sad
Logged
aganim
Jr. Member
*
Posts: 41


View Profile
« Reply #222 on: January 08, 2013, 02:47:12 PM »

Great Work!

 Space Ace
Logged

Search Nintendo arcade cabinet Wink
ataritoobin
Member
**
Posts: 410



View Profile
« Reply #223 on: January 08, 2013, 06:18:27 PM »





 Grin
Logged
DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11639


Singe's castle


View Profile WWW
« Reply #224 on: January 10, 2013, 08:53:04 AM »

Episode E01 & E02 are now available in this video Wink  arrow
