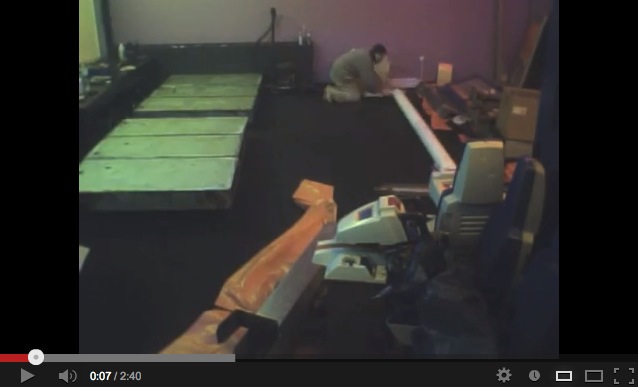

Episode E05 is now available in this video ;)  :arrow:



 8)

DarthNuno

  • Administrator
  • ArcadeLifeStyler'
  • *****
  • Posts: 11647
  • Singe's castle
    • View Profile
    • Dragon's Lair Fans / Arcade LifeStyle
Re: ## Road Trip ## GALAXIAN THEATER from NAMCO !!!
« Reply #273 on: January 22, 2013, 09:56:14 PM »
...and here's the Episode E06 : Monolith! in video :arrow:



 8)

Nic-fryer

  • Member
  • **
  • Posts: 110
    • View Profile
Re: ## Road Trip ## GALAXIAN THEATER from NAMCO !!!
« Reply #274 on: January 24, 2013, 03:22:09 PM »
This may seem like an annoying question for you, Bruno, but when do you think you'll have this project completed?

Oh, and mention it to Scr33n that he should scratch build one of these, it could be interesting :D
- BLANK -

scr33n

  • ArcadeLifeStyler'
  • ***
  • Posts: 1674
    • View Profile
Re: ## Road Trip ## GALAXIAN THEATER from NAMCO !!!
« Reply #275 on: January 24, 2013, 06:01:59 PM »
Oh, and mention it to Scr33n that he should scratch build one of these, it could be interesting :D

 :shock: :shock: :)
PROJECTS FROM SCRATCH:

Galaga - PacMan - Donkey Kong Red Cab - Track & Field Upright - Tempest - Burgertime - Gyruss - Defender - Track & Field Cocktail - Robotron 2084

RESTORATIONS:

Q*bert - Timber

Level42

  • ArcadeLifeStyler'
  • ***
  • Posts: 13555
  • Ridderkerk, arcade capital of Europe !
    • View Profile
    • Arcade 42
Re: ## Road Trip ## GALAXIAN THEATER from NAMCO !!!
« Reply #276 on: January 24, 2013, 07:32:54 PM »
LOL  ;D

I expect Scr33n to finish something like that in 2 months easily.


 ;D ;D

DarthNuno

  • Administrator
  • ArcadeLifeStyler'
  • *****
  • Posts: 11647
  • Singe's castle
    • View Profile
    • Dragon's Lair Fans / Arcade LifeStyle
Re: ## Road Trip ## GALAXIAN THEATER from NAMCO !!!
« Reply #277 on: January 24, 2013, 08:07:42 PM »
This may seem like an annoying question for you, Bruno, but when do you think you'll have this project completed?

Well ::) ;) ...stay tuned guys!  8)

Oh, and mention it to Scr33n that he should scratch build one of these, it could be interesting :D

I can provide all the measures, yeah!  ;D

DarthNuno

  • Administrator
  • ArcadeLifeStyler'
  • *****
  • Posts: 11647
  • Singe's castle
    • View Profile
    • Dragon's Lair Fans / Arcade LifeStyle
Re: ## Road Trip ## GALAXIAN THEATER from NAMCO !!!
« Reply #278 on: January 24, 2013, 11:05:01 PM »
EPISODE 08: "Like a huge Meccano"

Starring : Darth Nuno

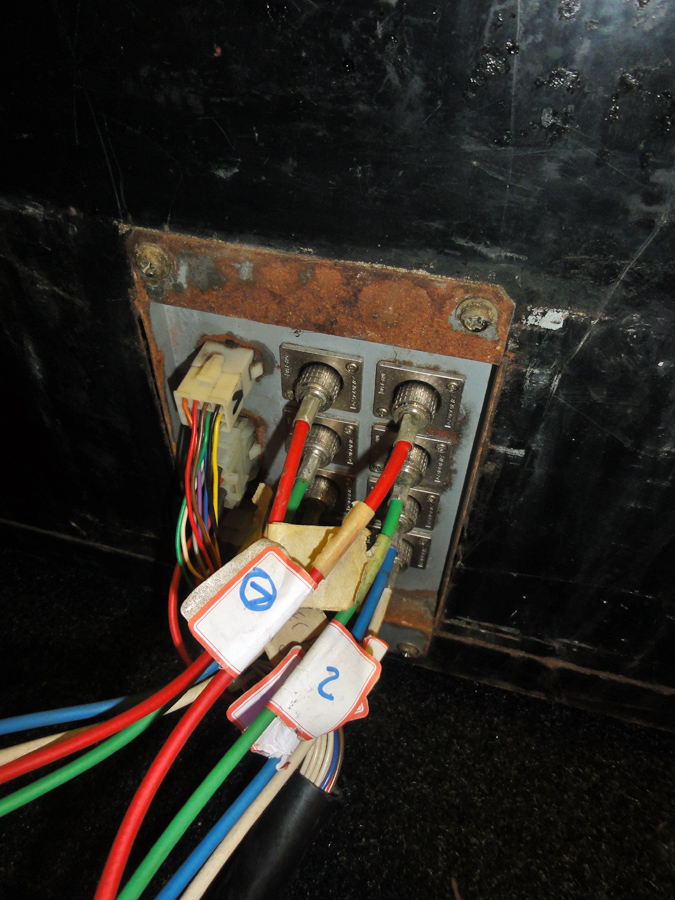

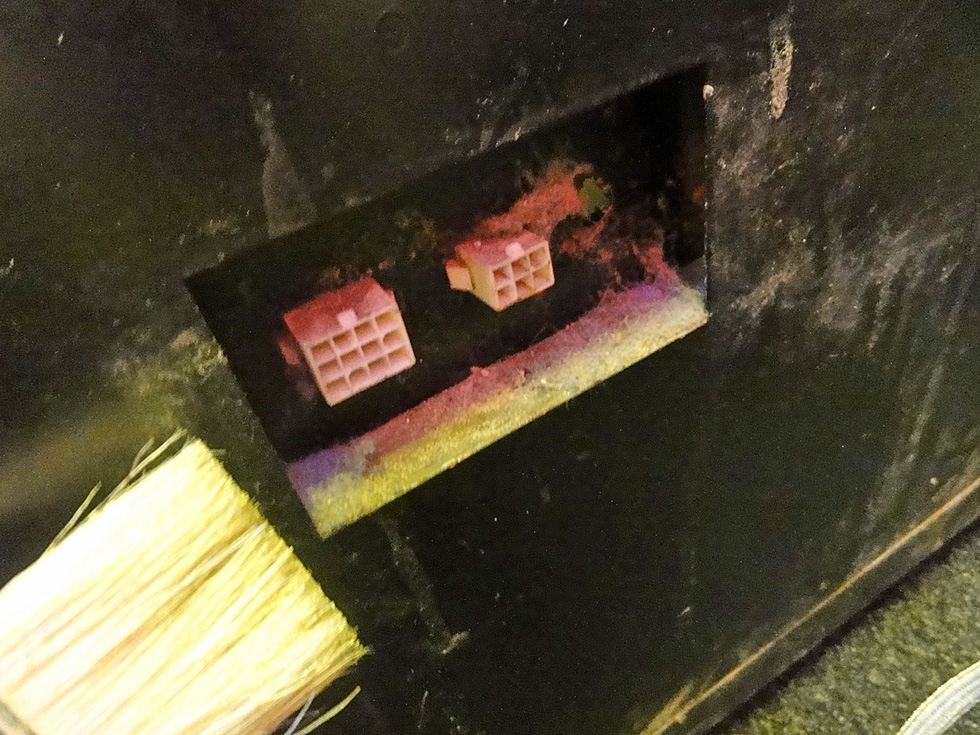

The 6 gun base assy' are all connected to the 3 'control box'. Here's one of the six connectors, located at the rear side of a'control box' :



2 connectors per 'control box' simply means... 6 connectors for 6 gun base assy', sounds good, huh!  8)
They all need a good cleaning...

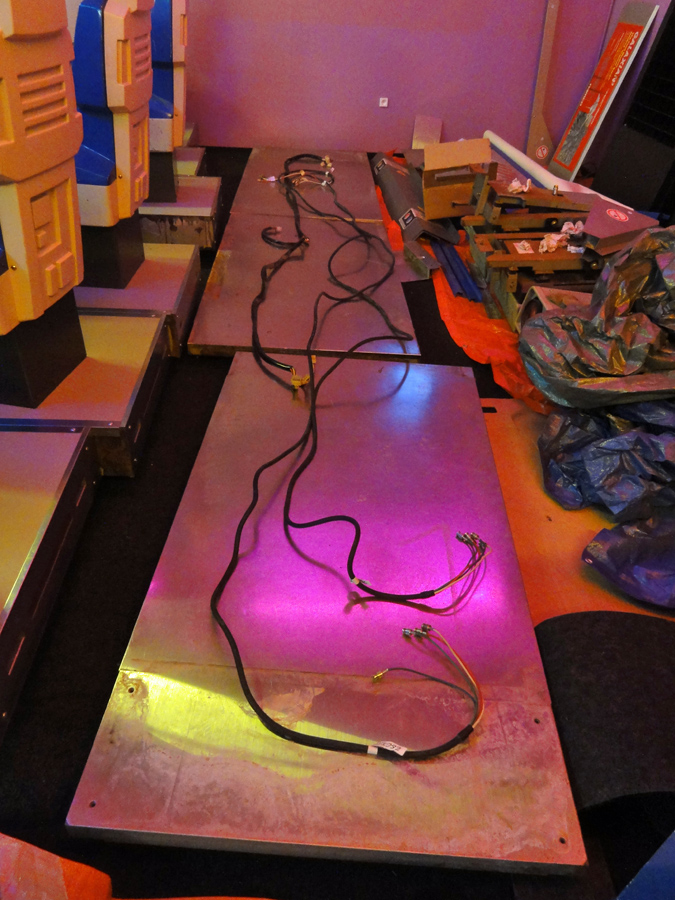

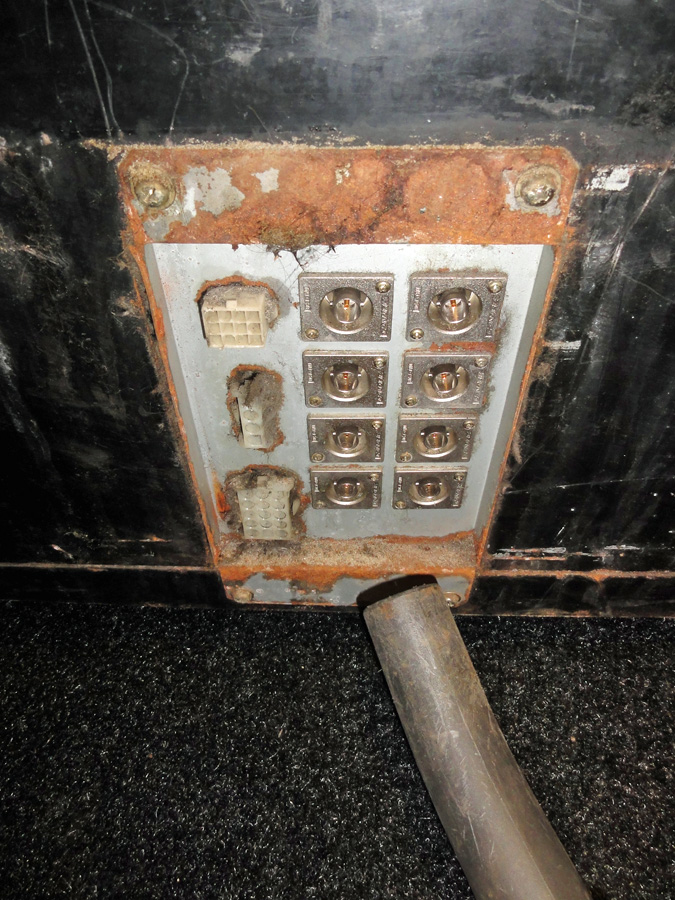

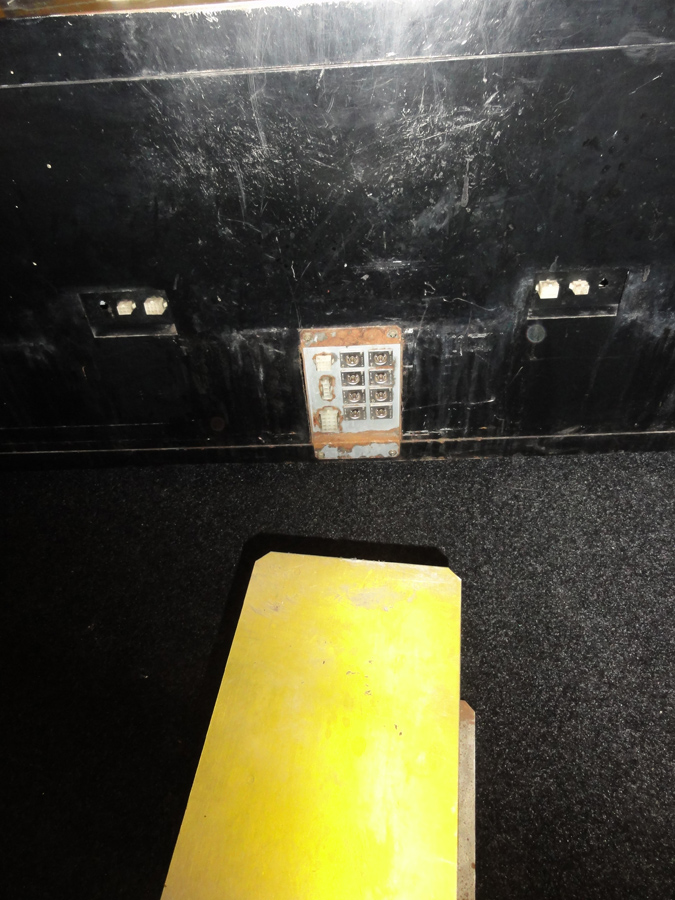

In the middle of the 'control box' located ...in the 'middle' (between player #3 and #4), you can see the connectors used to plug power/sound/video...



...that will go to the front of the theater, inside the 'central tunnel' here...

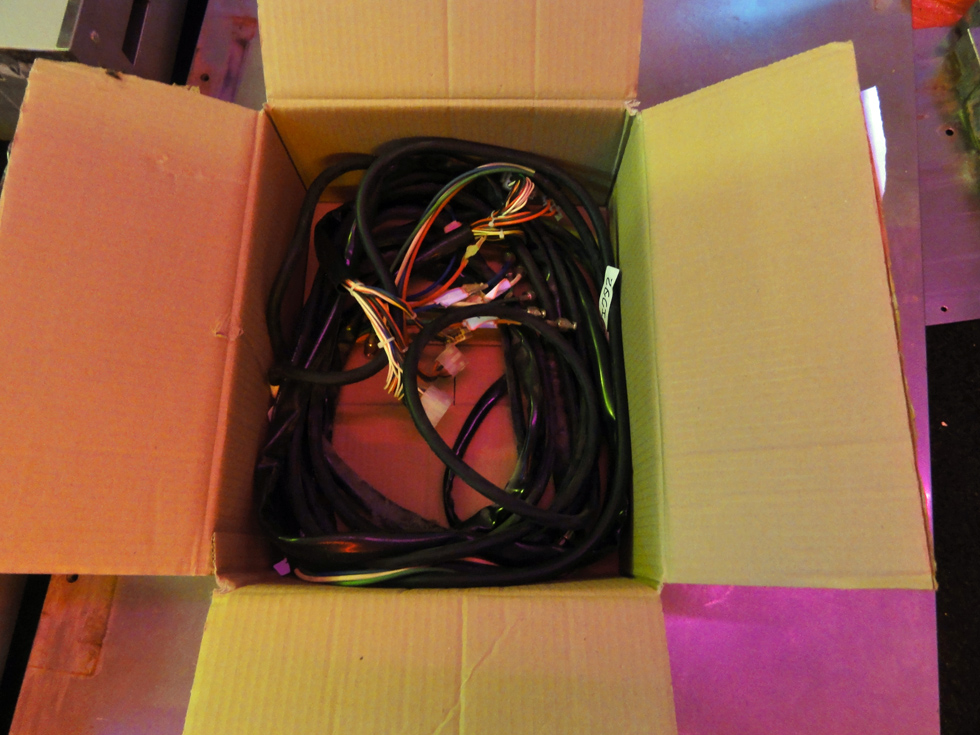

...via these two HUGE cables...



...now un-boxed...



...and connected!  8)  :arrow:



See these parts...

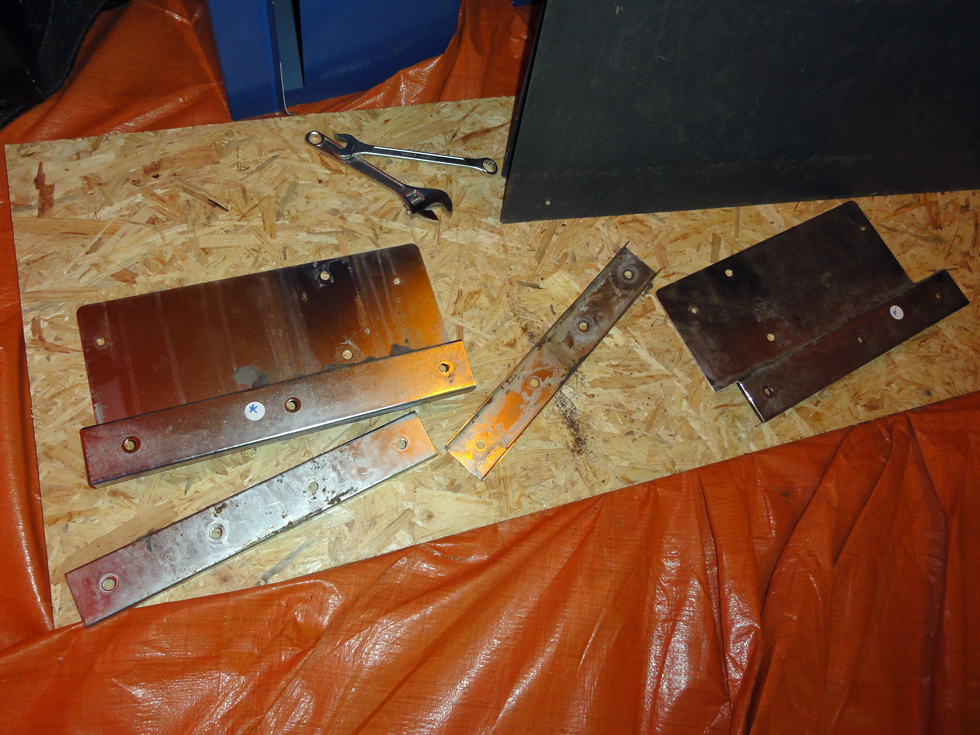

Like a huge Meccano! Here's what to do with them  :arrow:



Yes, they will fix the three 'bases' together...

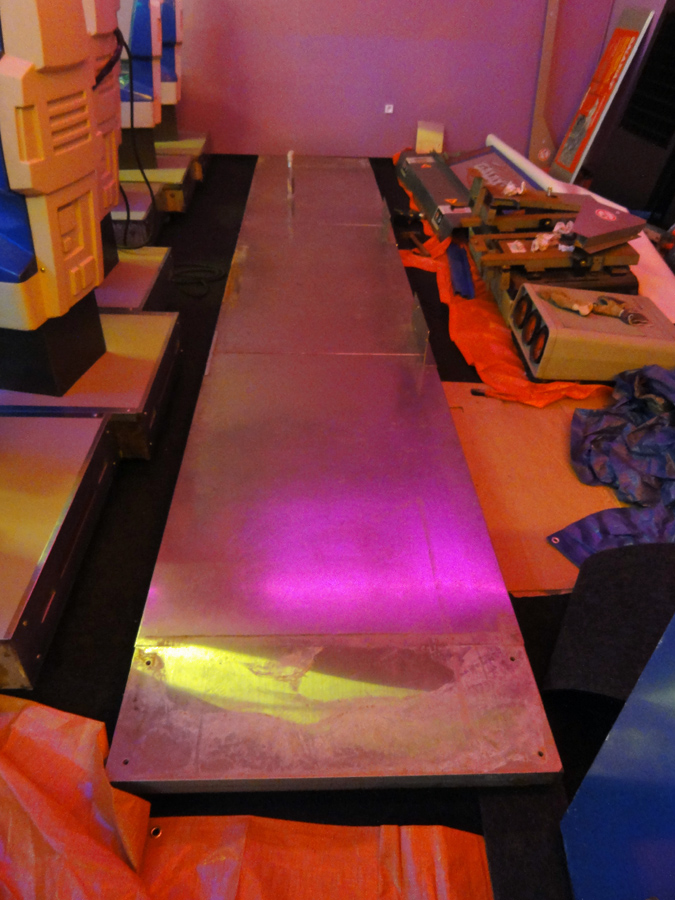

Done!  :arrow:



Here's an other huge part :

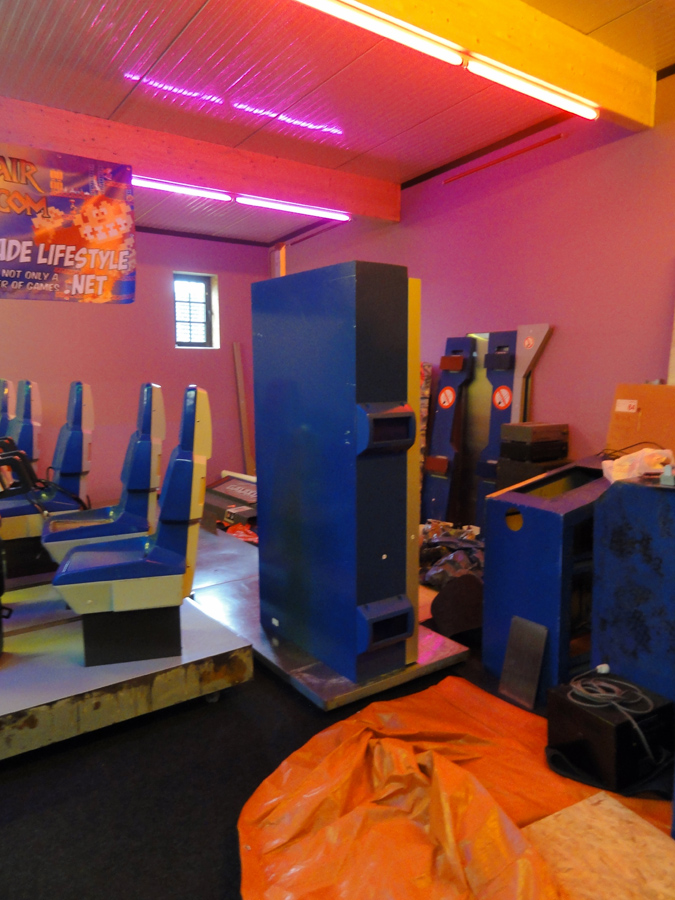

It's called 'side pillar'. Now on location  :arrow:



All the front base has to be push against the 6 gun base assy', which must be also pushed against the three control boxes.

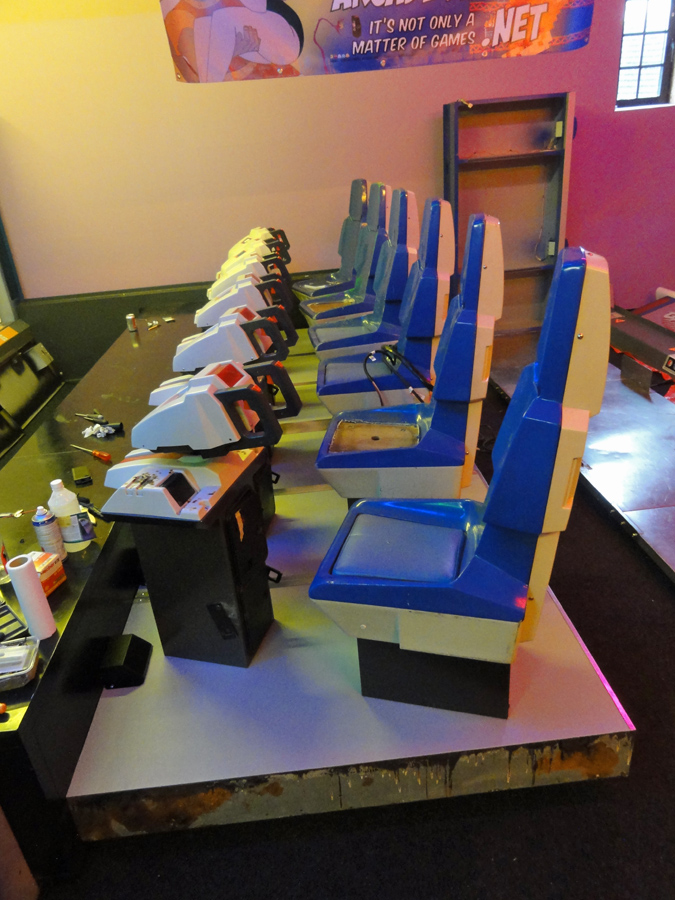

So, it's now time to push & connect the 6 gun base assy' to the control boxes, like this  :arrow:



Done!

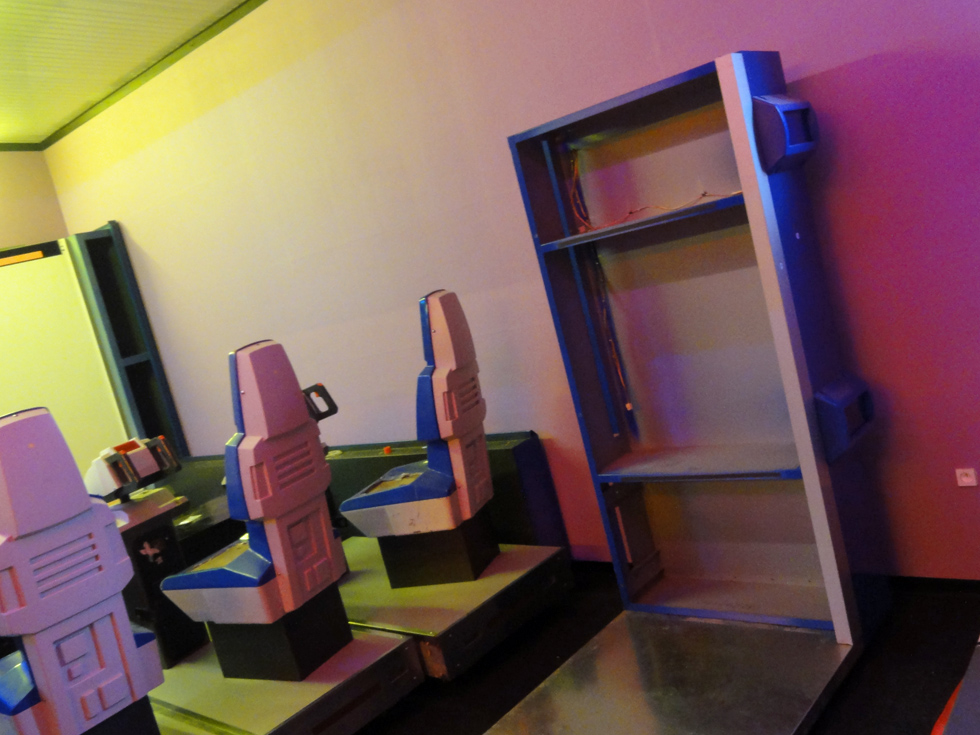

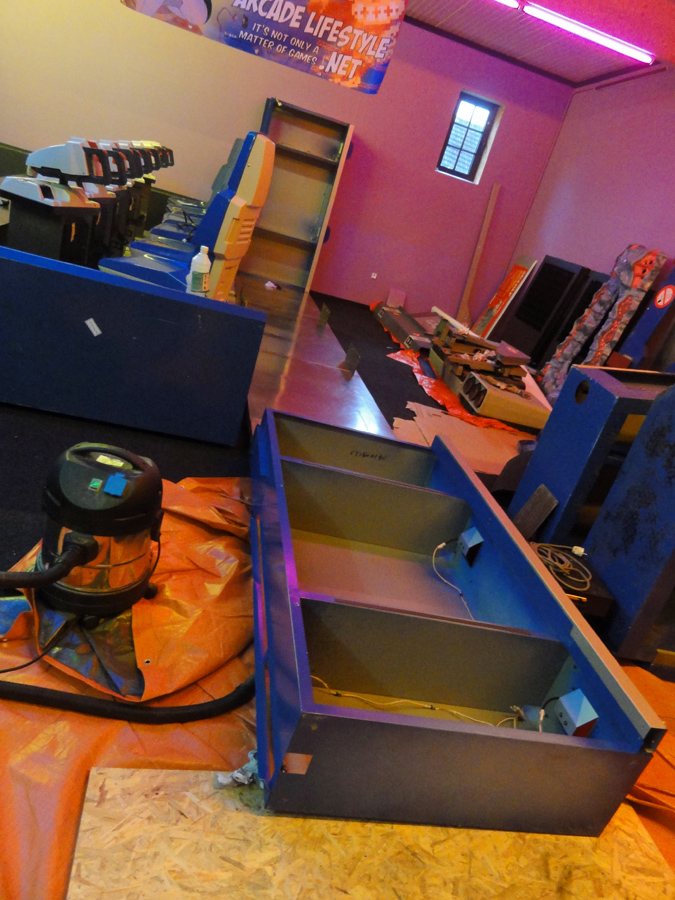

Before pushing all the front base against the 6 gun base assy, I have to fix the last part of the left wall...done!  :arrow:



I decided to become 'blood brother' with that machine... nan  :P I stuck my finger when moving alone the front base part... nothing at all!



Darth Nuno : Left Side Pillar...do you hear me?
SP : Yes, my master.



Darth Nuno : Rise!  ;D

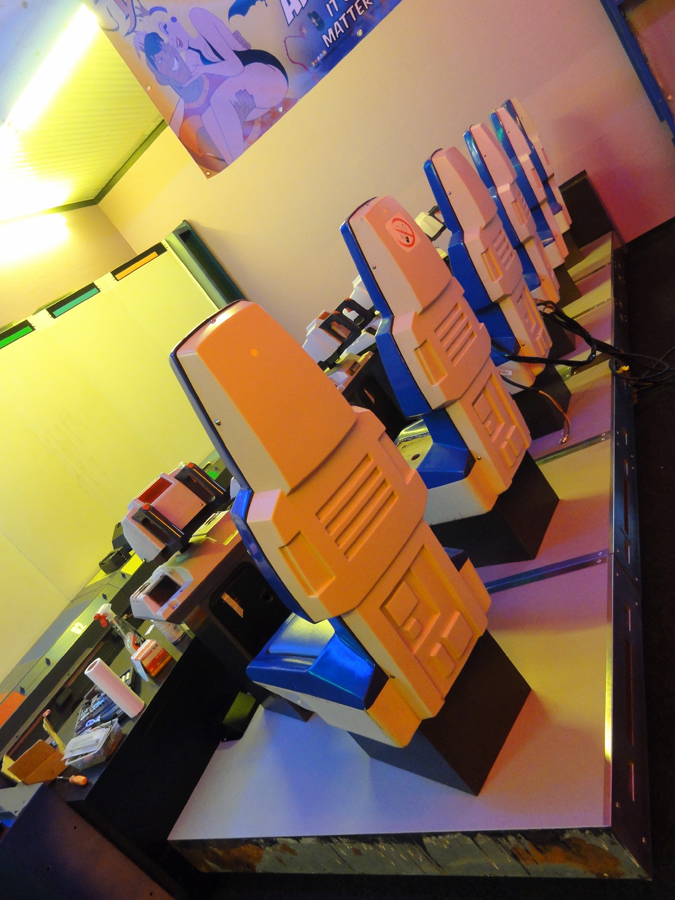

I decide to connect the front base to the rest of the Theater now, before it will be to heavy for moving it on my carpet :

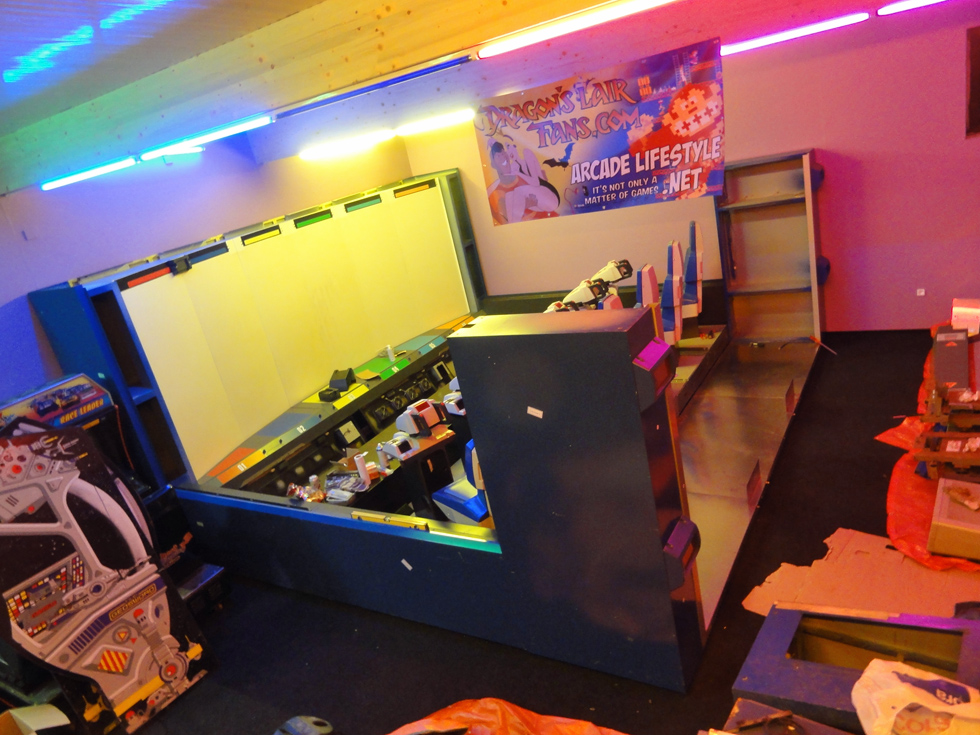

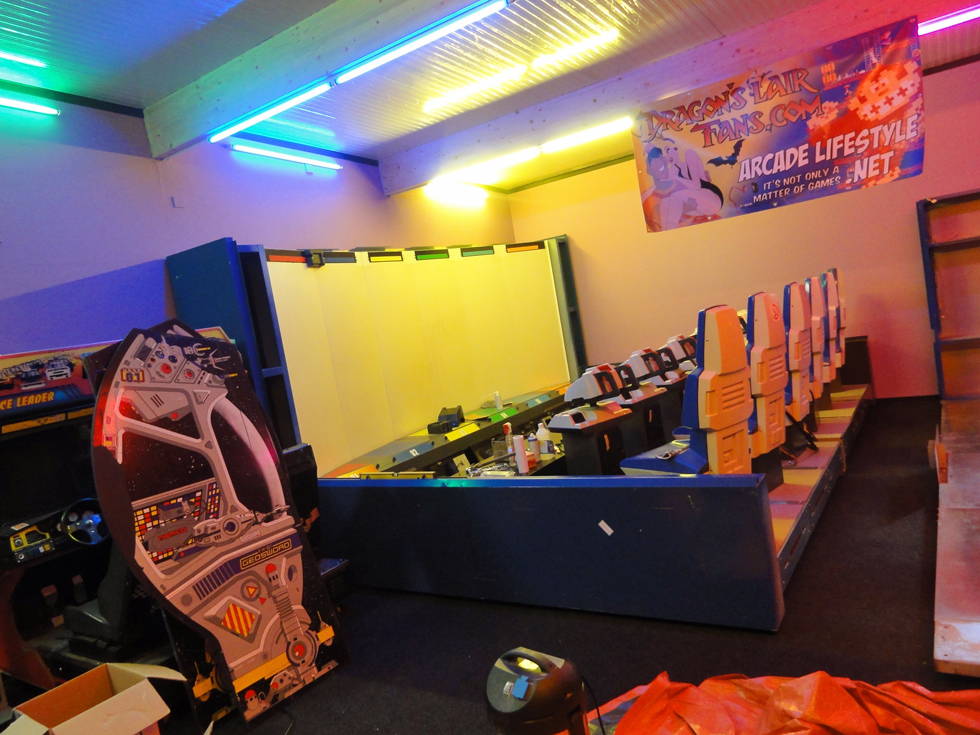

Wow... now we can really start to 'size' the monster!  :P :-*

The End
