Author Topic: ## Road Trip ## GALAXIAN THEATER from NAMCO !!!  (Read 663139 times)

baritonomarchetto

  • ArcadeLifeStyler'
  • ***
  • Posts: 542
    • View Profile
Re: ## Road Trip ## GALAXIAN THEATER from NAMCO !!!
« Reply #390 on: February 24, 2013, 01:35:50 PM »
Bruno, what was exactly the "extention" of the malfunction? Not working projectors? Inputs? Boards problem?
"A true Gentleman leaves no puzzle unsolved"

DarthNuno

  • Administrator
  • ArcadeLifeStyler'
  • *****
  • Posts: 11646
  • Singe's castle
    • View Profile
    • Dragon's Lair Fans / Arcade LifeStyle
Re: ## Road Trip ## GALAXIAN THEATER from NAMCO !!!
« Reply #391 on: February 24, 2013, 06:13:32 PM »
Bruno, what was exactly the "extention" of the malfunction? Not working projectors? Inputs? Boards problem?

Mhhh, TBH I don't really know what's wrong or not. All I remember is that one month before the road trip, there was a problem on a LDP (CGI background not displayed on one screen), sounds problem maybe?, lightning problem?.... When I bought it, a part of the deal was 'no question' to the 'seller', so I didn't really checked what's wrong or not...and keep all these interrogation for later ::)... and that 'later' is now!  ;)
The road trip day, when we were there, I remember they powered off the Theater, and if I remember well, no more CGI on screens (which means no more LDP working!)... so... I'll discover what's wrong after rebuilding it. I have spare for almost everything, so ... keep the faith!  ;D
« Last Edit: February 24, 2013, 08:50:01 PM by DarthNuno »

ARCADESAVER

  • Jr. Member
  • *
  • Posts: 54
    • View Profile
Re: ## Road Trip ## GALAXIAN THEATER from NAMCO !!!
« Reply #392 on: February 28, 2013, 09:09:19 AM »
The CRT projector works? or is it only the LDP?

uncletom

  • Member
  • **
  • Posts: 243
    • View Profile
Re: ## Road Trip ## GALAXIAN THEATER from NAMCO !!!
« Reply #393 on: February 28, 2013, 09:49:46 AM »
If the game displays no background gfx, only the CG layer, then the projectors are OK. What Bruno needs to look at is the control boxes, preferably starting with the connections and wiring.

DarthNuno

  • Administrator
  • ArcadeLifeStyler'
  • *****
  • Posts: 11646
  • Singe's castle
    • View Profile
    • Dragon's Lair Fans / Arcade LifeStyle
Re: ## Road Trip ## GALAXIAN THEATER from NAMCO !!!
« Reply #394 on: February 28, 2013, 10:24:48 AM »
EPISODE 13: "Slave!"

Starring : Darth Nuno

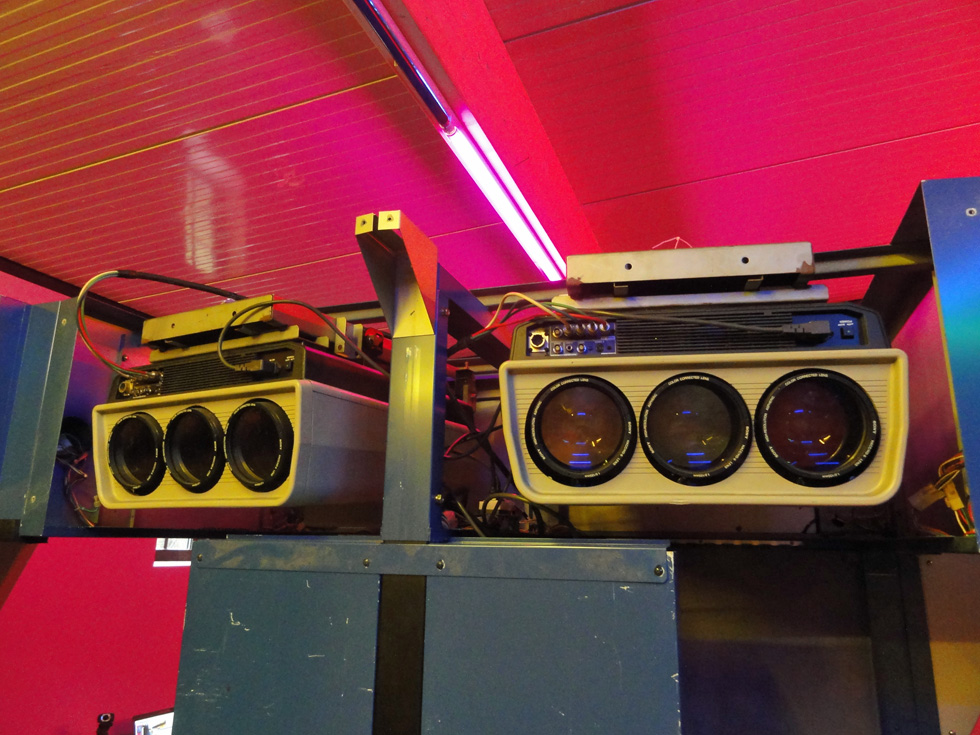

It's time to finalize all the connectivity. Here's the two projectors ...connected! Signals going to them are pure RGB via BNC.



As I said previously, I'll wait to see if they work fine before putting back the blue frames around them, and arrange better the wires.

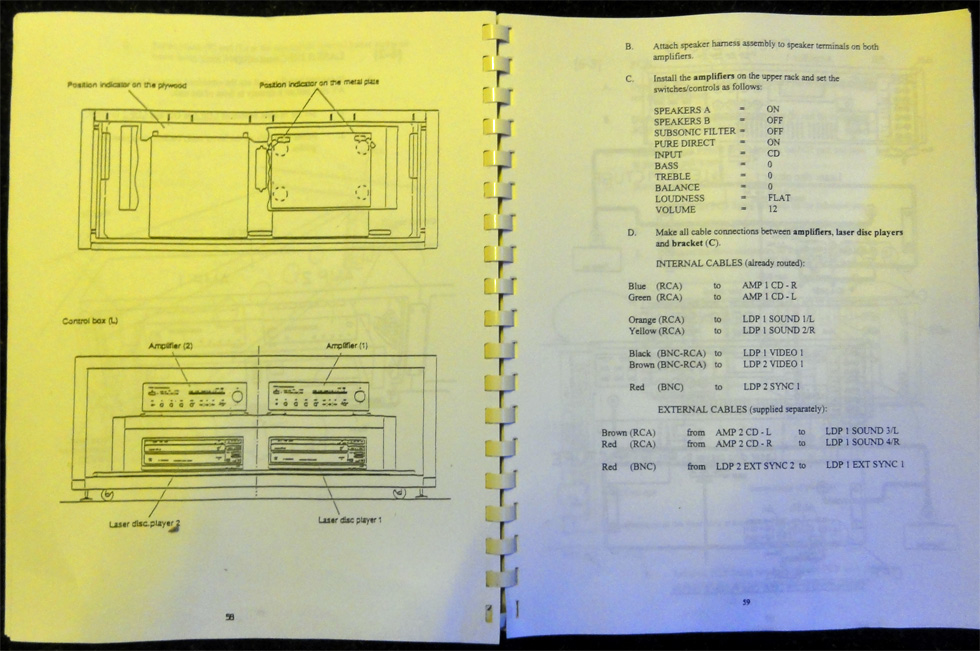

Ok, let's connect the 2 LD players and the 2 sound amplifiers. With the help of the instruction manual, it should no be too difficult...

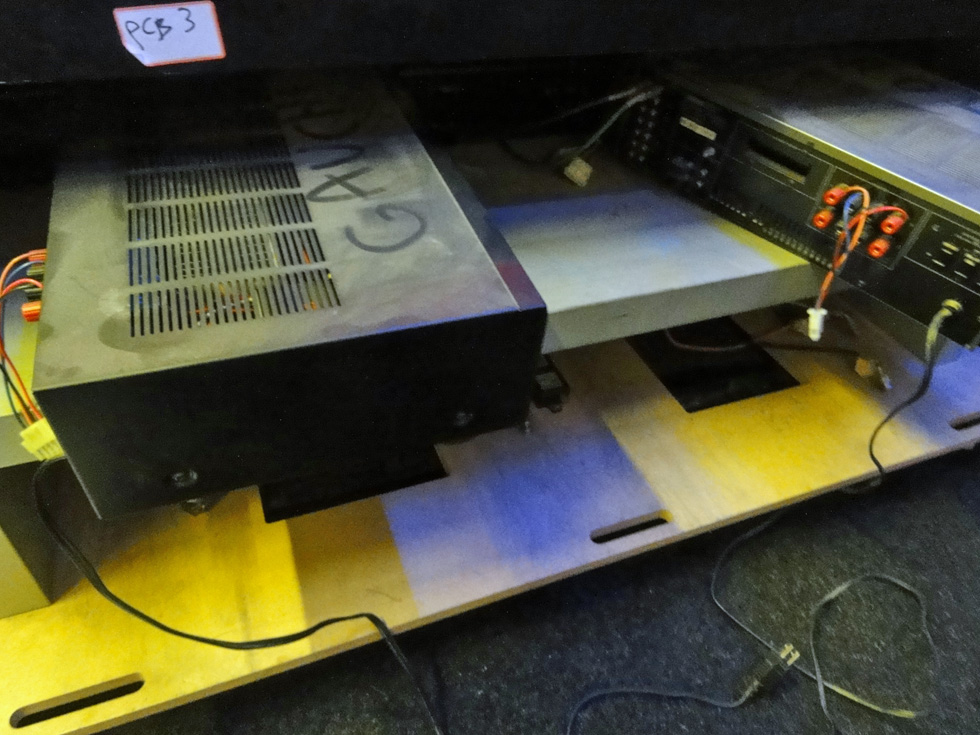

I start with the two beautiful Yamaha sound amplifiers, high end model at the time, and sooo vintage nowadays  :-*

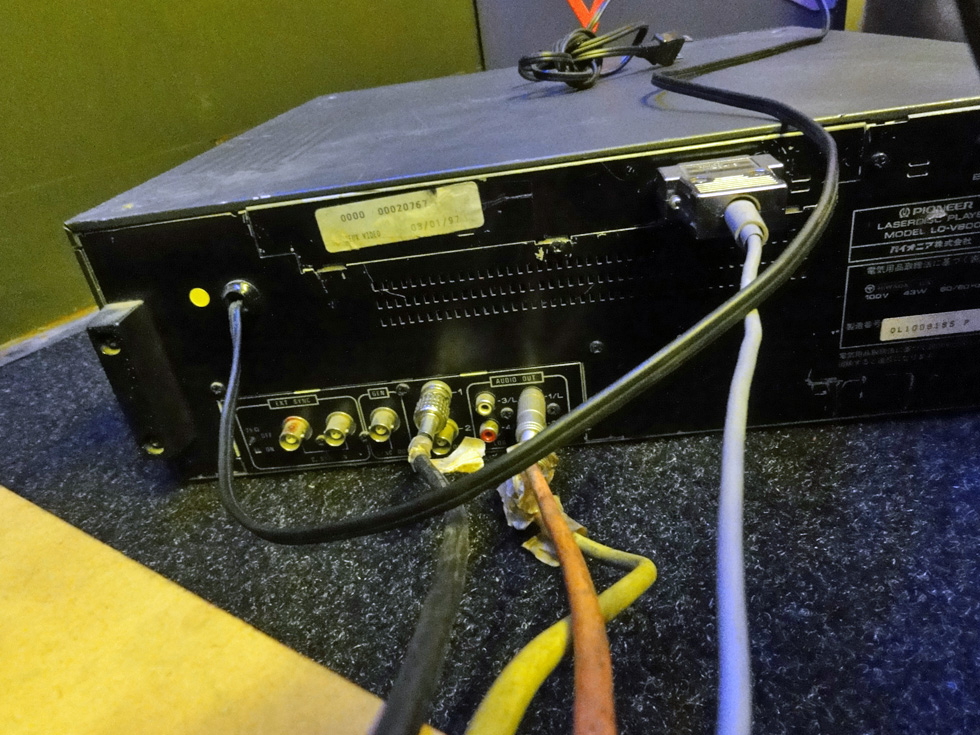

Let's prepare the LD Player #1  :arrow:



'Man at work'  :)  :arrow:



As far as I remember, none of the 2 LD players were working when I disassembled the GT6 5 years ago. So I use the LD-V800 I got from Bigjeje during this event. It's a special player... because it was used on an other Galaxian Theater! The one located in Paris, in 'La tĂȘte dans les nuages" game room, the biggest one in Paris at the time. Bigjeje is working there, and he sold me the last GT6 parts left...including that LD player... 8)
I've tested the basic functions on it : power on, eject/play disc on my TV. Seems to work so far, so let's hope the other functions used 'in game' will also work...

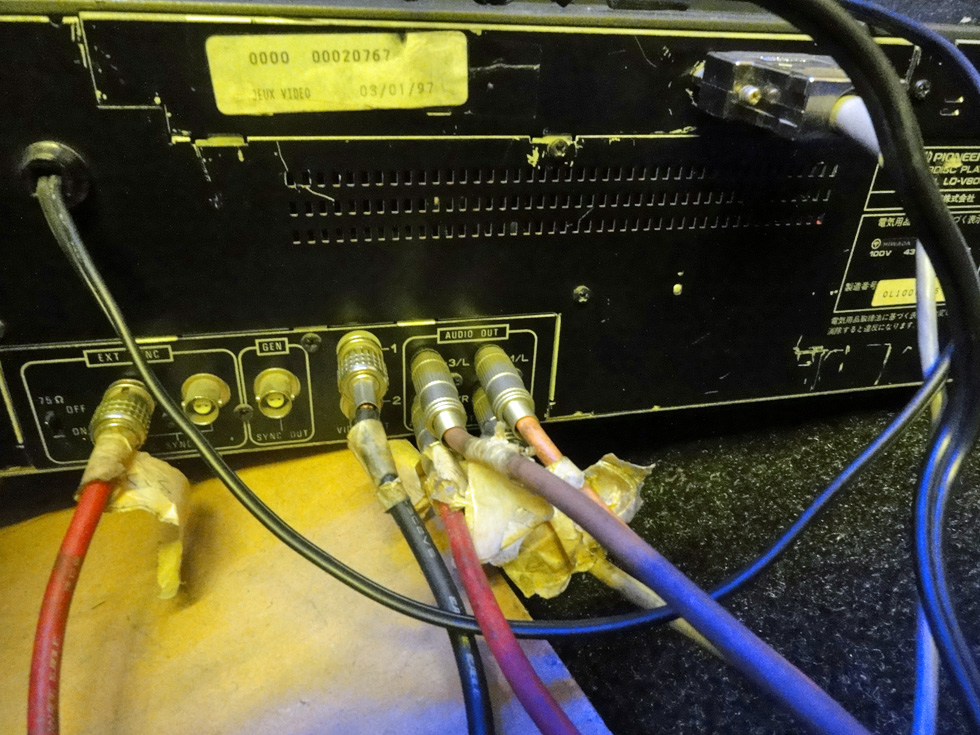

OK, all the necessary wires are now connected to the LDP #1  :arrow:



Here's how it works basically :

The LDP #1 does almost all the job!  ;D

For the sound, it provides to the AMP #1 the left/right audio signal for the front of the theater, but also it provides to the AMP #2 the left/right audio signal for the rear of the theater. You can see the 4 RCA/cinch connector plugged

For the video, it provides the left 'background' image via the BNC connector.

In addition it also sends a sync signal to the LDP #2

Oh, and of course you can spot the RSC232 connector... from where the LDP got orders from the game!  ;D

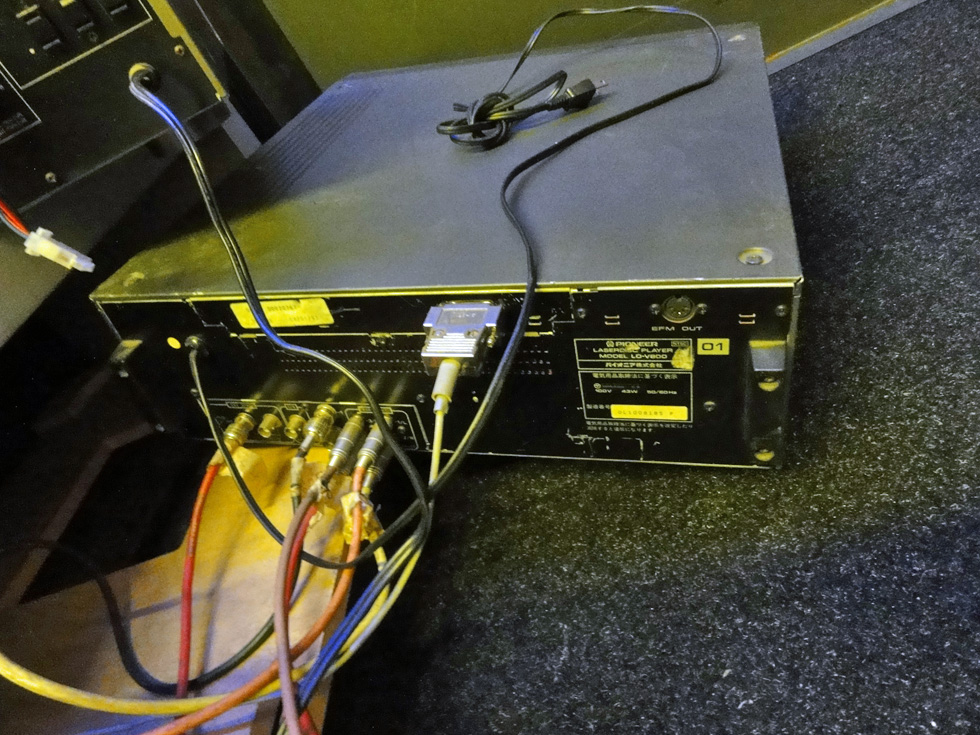

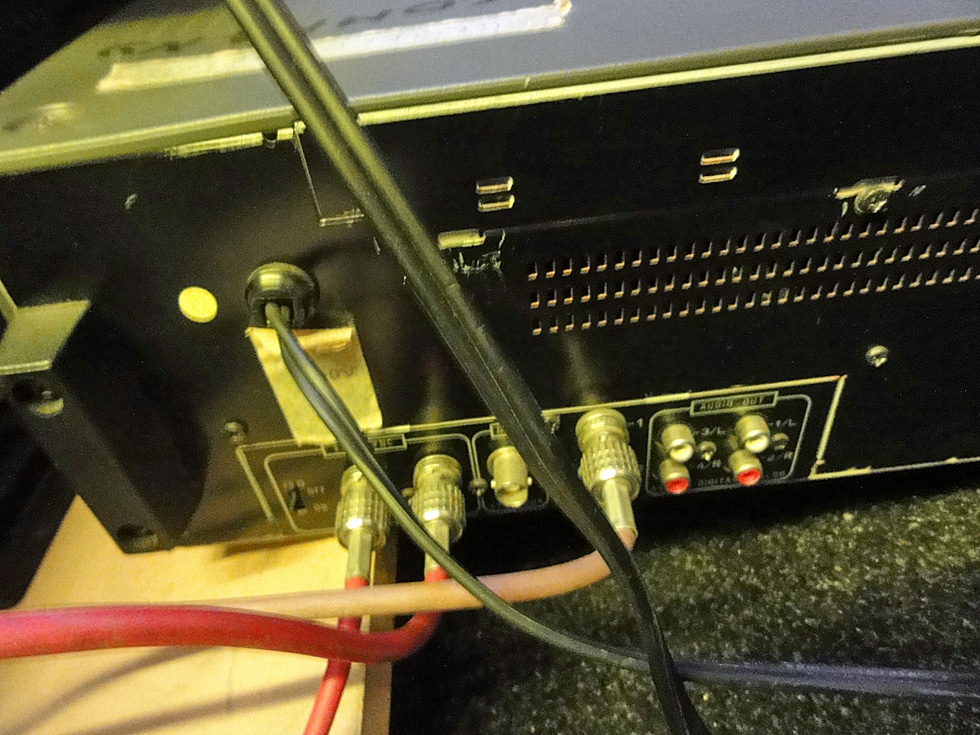

For the LDP #2, I'll use a player I got during the initial road trip... it's not one of those inside the Theater (supposed non working). It's one from many I got form the operator who can't tell if they were working or no...it's gonna be a surprise then! Now fully connected  :arrow:



As you can see, that LDP #2 does only one thing : received orders from the RS232, got a sync signal for the LPD #1 and display the right 'background' part of the screen. No sound is used from it. Let's call him the slave!

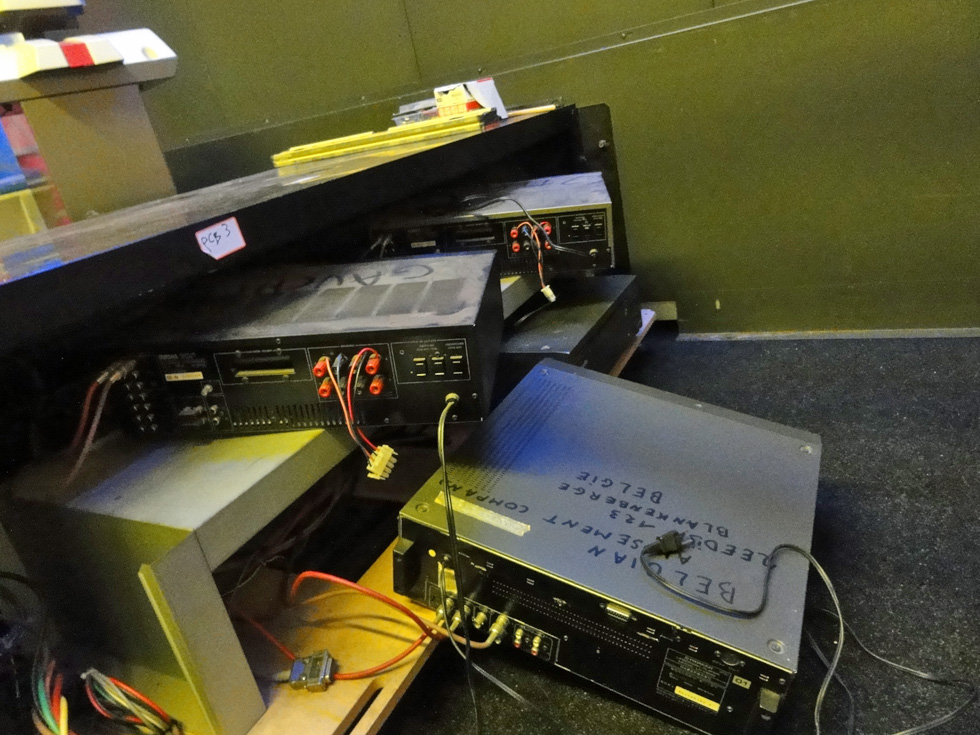

...a general view....

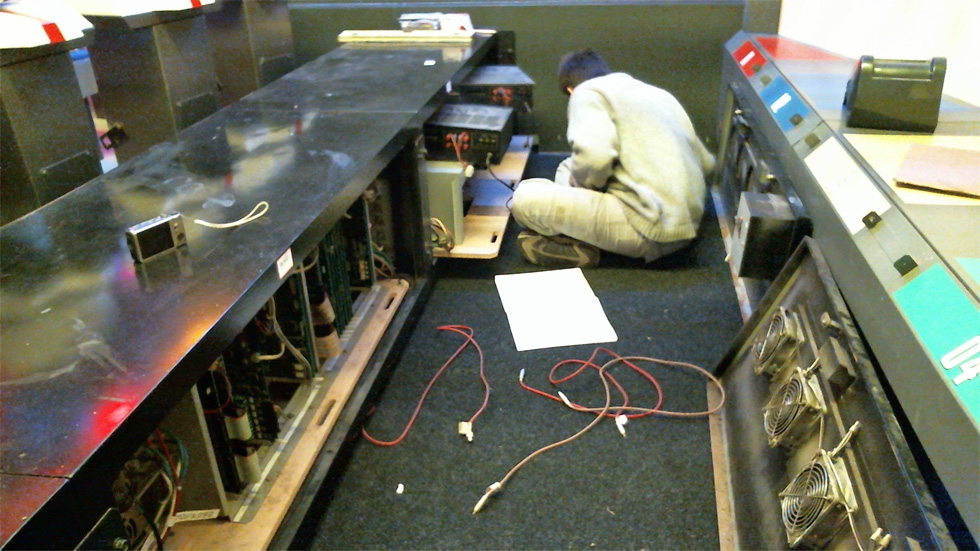

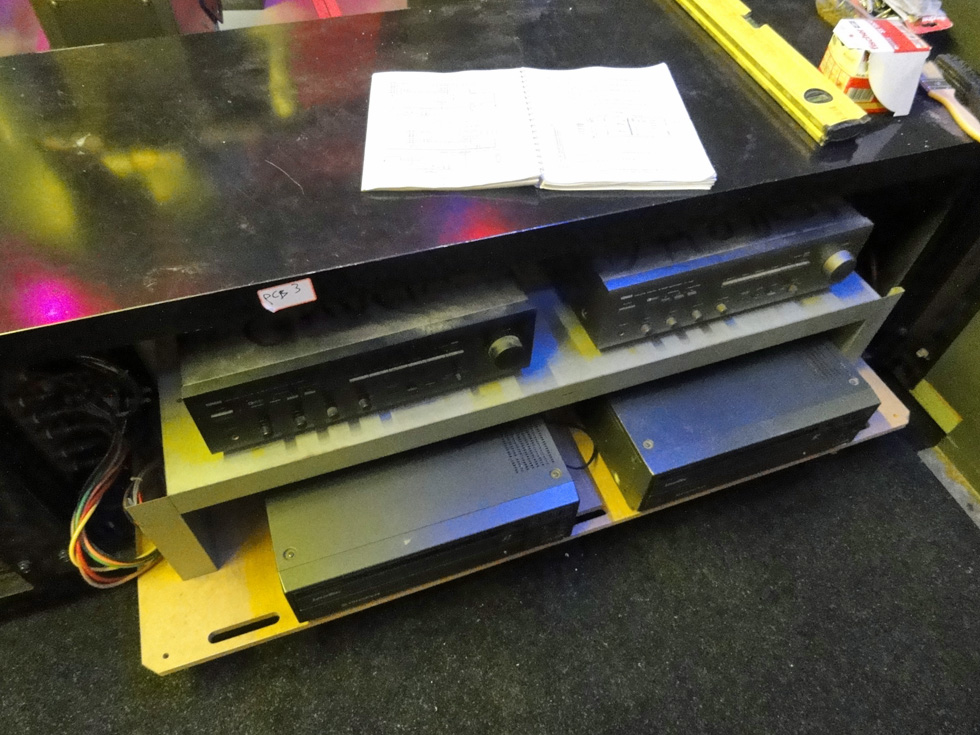

...before moving all that stuff in their original location!  :arrow:



So here we are... I would say everything is now connected... so ... I guess the next step is plugging on the monster?

Are you ready? No wait ... I prefer having this before, just in case!  :arrow:



Ok, now I'm ready!

3


2


1


THE END OF SEASON 6

Stay tuned for the next season  ;)

uncletom

  • Member
  • **
  • Posts: 243
    • View Profile
Re: ## Road Trip ## GALAXIAN THEATER from NAMCO !!!
« Reply #395 on: February 28, 2013, 10:30:40 AM »
Big Bottle Of Champagne!

.. oh yeah, I'm still very tuned.

Nic-fryer

  • Member
  • **
  • Posts: 110
    • View Profile
Re: ## Road Trip ## GALAXIAN THEATER from NAMCO !!!
« Reply #396 on: February 28, 2013, 10:31:00 AM »
I don't actually mean this

I HATE YOU BRUNO
- BLANK -

Luigi

  • ArcadeLifeStyler'
  • ***
  • Posts: 1685
    • View Profile
Re: ## Road Trip ## GALAXIAN THEATER from NAMCO !!!
« Reply #397 on: February 28, 2013, 10:47:30 AM »
ah, how I hate cliffhangers  :-\


Can't wait.....GO GO GO !!!  :)

funkycochise

  • Member
  • **
  • Posts: 259
    • View Profile
Re: ## Road Trip ## GALAXIAN THEATER from NAMCO !!!
« Reply #398 on: February 28, 2013, 11:25:36 AM »
you rule, mate  ;D

Etienne MacGyver

  • ArcadeLifeStyler'
  • ***
  • Posts: 7607
  • The Netherlands
    • View Profile
Re: ## Road Trip ## GALAXIAN THEATER from NAMCO !!!
« Reply #399 on: February 28, 2013, 11:28:34 AM »
i see a wink, so i guess its working  ;)

ARCADESAVER

  • Jr. Member
  • *
  • Posts: 54
    • View Profile
Re: ## Road Trip ## GALAXIAN THEATER from NAMCO !!!
« Reply #400 on: February 28, 2013, 11:54:11 AM »
yeahh seems so  ;D

Superully

  • ArcadeLifeStyler'
  • ***
  • Posts: 6300
  • Southern Part of Germany
    • View Profile
Re: ## Road Trip ## GALAXIAN THEATER from NAMCO !!!
« Reply #401 on: February 28, 2013, 01:56:53 PM »
all i need is ... PONG - and a select few others: TOUCH ME, DRAGON'S LAIR, JOUST, ROBOTRON, MR DO, SAN FRANCISCO RUSH THE ROCK!!!

uncletom

  • Member
  • **
  • Posts: 243
    • View Profile
Re: ## Road Trip ## GALAXIAN THEATER from NAMCO !!!
« Reply #402 on: February 28, 2013, 01:59:16 PM »
Ah yes. I know her. She does have certain .. issues.

Is she still on the meds?

lowlevel

  • Jr. Member
  • *
  • Posts: 71
    • View Profile
Re: ## Road Trip ## GALAXIAN THEATER from NAMCO !!!
« Reply #403 on: February 28, 2013, 03:14:26 PM »
Aaargh..... can't wait for the next season..
MK2, UMK3, KI, WWF, NBA JAM TE, REVX, LE2, AfterBurner, Outrunners twin, Virtua Racing twin and 7 pins

Wil2000

  • Jr. Member
  • *
  • Posts: 70
    • View Profile
Re: ## Road Trip ## GALAXIAN THEATER from NAMCO !!!
« Reply #404 on: February 28, 2013, 04:30:26 PM »
Damned! I can't believe you made such a cliffhanger!
