Some measure needed for Punch Out CP repro

[baritonomarchetto]

Hi all,

having not found up to today a reasonably priced original Punch-Out control panel, i am evaluating the home made way (a freind of mine has a bender so i will ask him for "cheap" help  ).

To do so, i do need some measure of the panel



In addition to these 4 data, i would need the thickness of the panel and eventually some dimension i am missing

Could someone here help on this

Thanks a lot

[Muerto]

Hi!

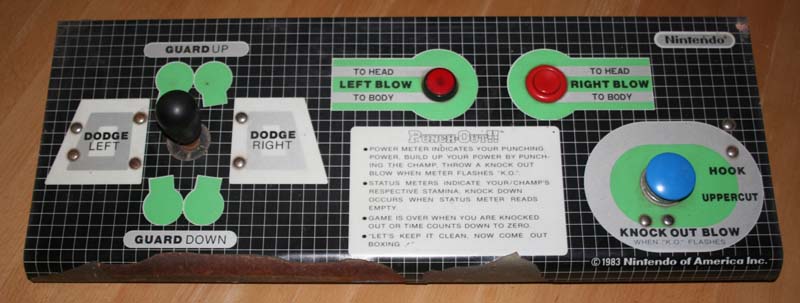

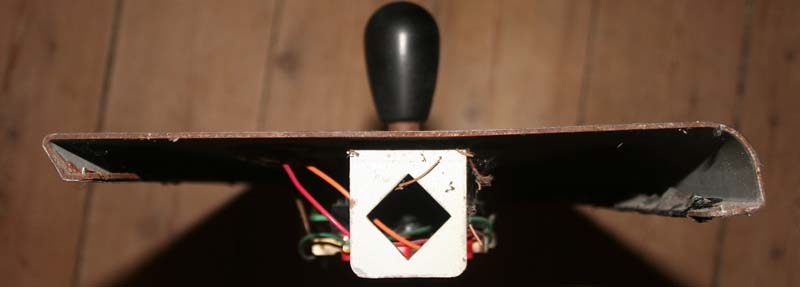

I have an original Punch Out, but my CP don´t look like the one you have drawn....:

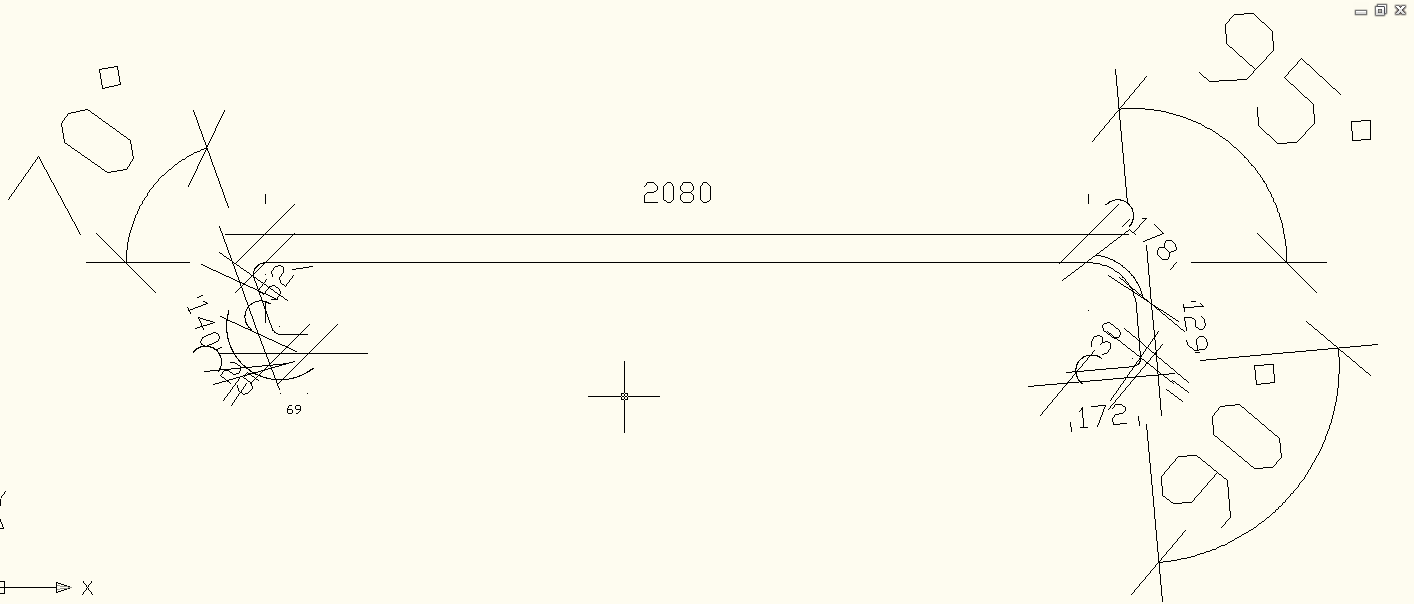

The measures you have to devide with 10 to get in mm (millimeter) - hope this is usable
And the thickness of the metal is 2mm.







The 25, 52, 178 and 30 is the ARC length..

Grap the CAD file HERE

[baritonomarchetto]

Thank you VERY much Muerto

I have never seen the profile of an original PO CP, so my drawing was only a poor attempt

Could you please give me also the width?

many thanks

[Muerto]

You're welcome

And the width is 598mm
