Author Topic: Breakout Consolettes?  (Read 5125 times)
kralleman
Jr. Member
*
Posts: 56


View Profile
« on: November 04, 2016, 12:27:08 AM »


Hi!
I recently acquired a Breakout consolette style cabinet and I would like to know more about it. The monitor chassis and neck pcb says "Atari Europe" and the serial sticker on the back of the cabinet says Atari Theatre. Mine does not say "Consolette" like the ones I have seen pictured here on the forums. Were these common throughout Europe? Where were they built? France?

EDIT: I guess this one looks more like mine: http://www.flyerfever.com/post/98616925348/breakout


* IMG_20161004_194740.jpg (230.3 KB, 720x960 - viewed 202 times.)
« Last Edit: November 04, 2016, 12:35:12 AM by kralleman » Logged
Etienne MacGyver
ArcadeLifeStyler'
***
Posts: 7550


The Netherlands


View Profile
« Reply #1 on: November 04, 2016, 07:54:46 AM »

I have seen this at the first Eurocade, i think its Luigi's or Captain Kirk's

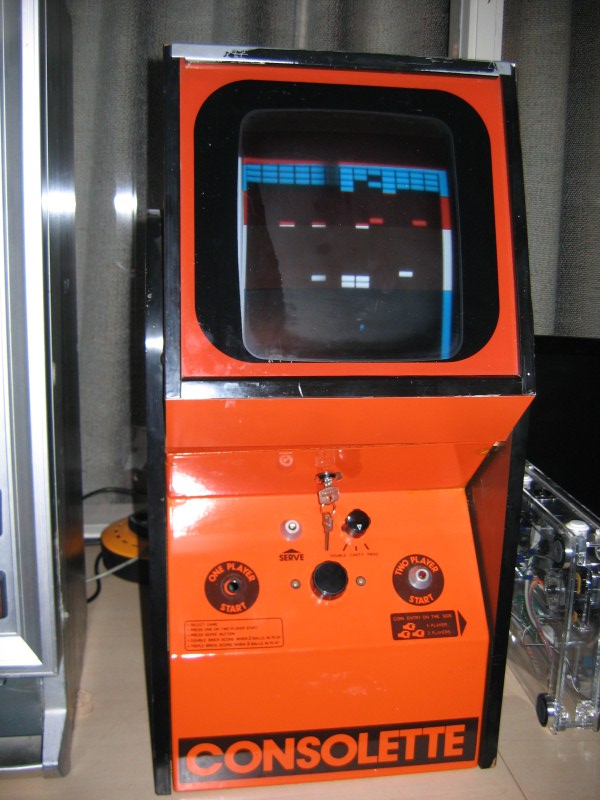

Here pics from Eurocade where my son is having a go at it  Wink







Logged

Looking for Repro Decals ?  Visit my webstore !  arrow  http://www.easywebshop.com/arcadedecals
Pinge
Member
**
Posts: 303



View Profile
« Reply #2 on: November 04, 2016, 06:30:43 PM »

Har to see but that one has a extra knob? Is it for Super Breakout maybe?

Awesome cabinet anyways, I was there in the warehouse when we found krallemans... he was quick to call dibs  Evil  lol
Logged

- Always looking for Playchoice & Mega-Tech -
kralleman
Jr. Member
*
Posts: 56


View Profile
« Reply #3 on: November 04, 2016, 06:53:45 PM »

Yes, hard to see but mine's a little bit different. Mine does not say Consolette on the front for instance.
Logged
kralleman
Jr. Member
*
Posts: 56


View Profile
« Reply #4 on: November 04, 2016, 09:21:42 PM »

The monitor of my cabinet is not working. A fuse and a couple of resistors are badly burnt. Still, it seems as if the cabinet has never been put out to operate on location. Except for the burnt parts, everything is shining as new and the coin counter is on 00089(!). Also, the serial number of the cabinet is 62.

I found the below post where someone repaired a consolette-monitor, but my french is too rusty to figure out the details. Will see what google translate has to say about it when I have time to sit down with my cabinet. http://forum.system-cfg.com/viewtopic.php?f=18&t=5594
Logged
Superully
ArcadeLifeStyler'
***
Posts: 6273


Southern Part of Germany


View Profile
« Reply #5 on: November 05, 2016, 12:23:51 PM »

Fantastic!!! Is that the one from ebay?
Logged

all i need is ... PONG - and a select few others: TOUCH ME, DRAGON'S LAIR, JOUST, ROBOTRON, MR DO, SAN FRANCISCO RUSH THE ROCK!!!
kralleman
Jr. Member
*
Posts: 56


View Profile
« Reply #6 on: November 05, 2016, 12:29:54 PM »

I bought this from an old operator so it's unlikely that it is the same machine as the one from ebay.
Logged
backflipper
Jr. Member
*
Posts: 14


View Profile
« Reply #7 on: November 26, 2016, 11:32:35 PM »

Wow this is awesome.
I have  a super breakout upright but wish I had one of these 8-)
Logged
Pinge
Member
**
Posts: 303



View Profile
« Reply #8 on: November 27, 2016, 12:52:16 AM »

Wow this is awesome.
I have  a super breakout upright but wish I had one of these 8-)


Im in the same boat as you, a SB upright and no consolette.
Logged

- Always looking for Playchoice & Mega-Tech -
kralleman
Jr. Member
*
Posts: 56


View Profile
« Reply #9 on: December 27, 2016, 02:06:23 PM »

Some components on the chassis looked like they were missing, and some resistors were badly burnt making it difficult to identify them. But spectroman here on the forums was kind enough to provide me with some schematics for the chassis so I have now been able to replace those. Also, I recapped one of the chassis-pcbs (there are two) and now she fires up! At least one of the pulled caps was shorted.

The picture still needs adjustment, but I will wait with that until I have recapped the other board. So, thanks a lot spectroman!


* consolette.jpg (51.52 KB, 451x692 - viewed 189 times.)
Logged
xadhoom
Member
**
Posts: 138



View Profile
« Reply #10 on: December 27, 2016, 08:43:09 PM »

Ask spectroman for more info. He has one
Logged
Level42
ArcadeLifeStyler'
***
Posts: 13541


Ridderkerk, arcade capital of Europe !


View Profile WWW
« Reply #11 on: December 28, 2016, 11:34:31 AM »

Love these little bastards WinkWink

What monitor is in there ?

So probably thie monitor burnt out very quickly and it wasn't repaired but put aside.....amazing....
Logged

kralleman
Jr. Member
*
Posts: 56


View Profile
« Reply #12 on: December 28, 2016, 11:52:59 AM »

I don't fully understand what the previous owner attempted. There were some badly burnt resistors and close to them a transistor that was only soldered on one leg. The other two legs were loose. Not like a cold solder joint just entirely unsoldered. A human fault. Either someone started a repair but never finished or someone completely forgot to solder those legs back and turned it on, ultimately firing those resistors and the fuse.

The only marking on the chassis is "Atari Europe". I also saw the text "synoptique moniteur 3175 00" on one of the schematics I believe. I'm not sure if synoptique is a brand.
Logged
spectroman
Jr. Member
*
Posts: 85


View Profile
« Reply #13 on: December 29, 2016, 03:24:28 PM »

synoptique mean a functional schematic in french.

The 13" moniteur is  an "hacked version" of the 19"

The flyback is powered by a 12V (instead of 24V on the 19"), but the chassis only produce 24V.  So they add a zener, a balast transistor and a Resistor soldered on the wire (not on pcb) to produce 12V.

Logged
spectroman
Jr. Member
*
Posts: 85


View Profile
« Reply #14 on: December 29, 2016, 03:29:03 PM »

Love these little bastards WinkWink

What monitor is in there ?

So probably thie monitor burnt out very quickly and it wasn't repaired but put aside.....amazing....

there're unamed, here is the schematic :

http://database.gamoover.net/20161111170125-Atari-Europe-B-W-13-consolette-.pdf
Logged
