## The LAZY road trip' + WIP ## PACMANIA !!! PACMANIA !!! PACMANIA !!! ^^

[Superully]

wonderful! now you only need a pcb to finish this ...

[DarthNuno]

not exactly... I've also some work to do regarding the control panel and ... the Atari Joystick as you'll see.

[level42]

My basic strategy is to use a dril that's a little bit larger than the area where the key goes and drill away. Ruin as much as possible. If I think it has had enough I will take a big flat screwdriver and try to force it in as much as possible and then give it a good turn. If it doesn't work, more drilling is needed. Then I try the screwdriver again. At a ceratain point the lock will give and you'll be able to turn it open with the screwdriver. So far my highly unscientific way. But it works.

Oh and you can just as well remove it from the back if that's already open of course

[Etienne MacGyver]

or just pick the lock

after the door opens, then the second option from Level42 is very easy and you dont need to crawl through your cab

[Superully]

well, crawling through the cab at least gives it a first basic cleaning

[DarthNuno]

Let's start to work on the control panel.

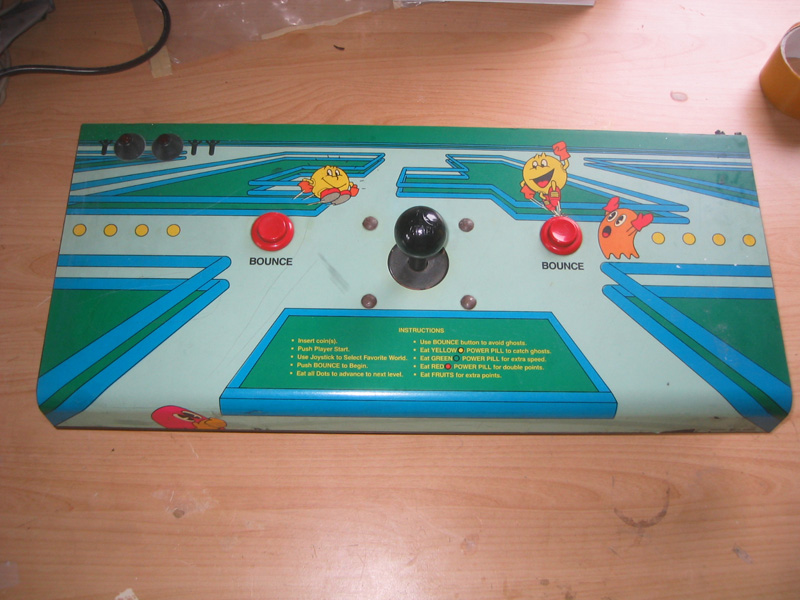

The overall condition is not bad at all...

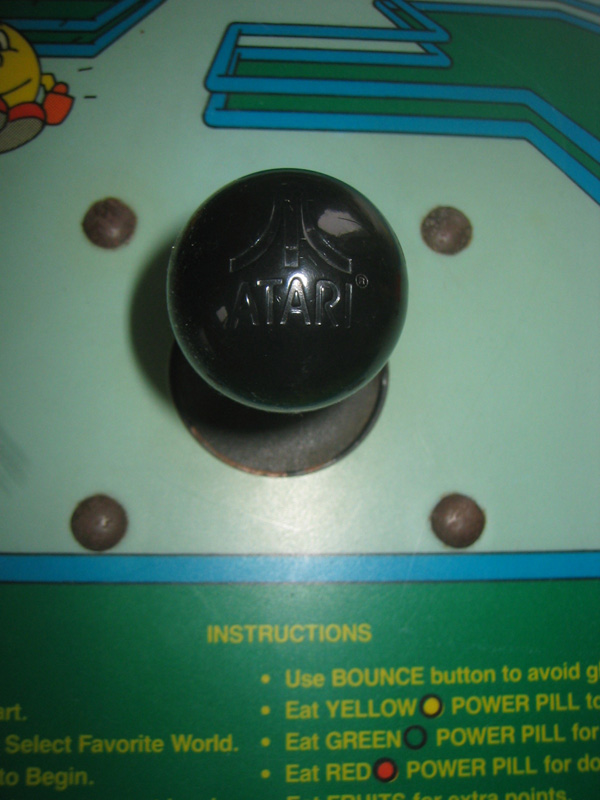

Now let's see why I cannot go 'down' on this original Atari joystick (I cannot hear the sound of the switch) :

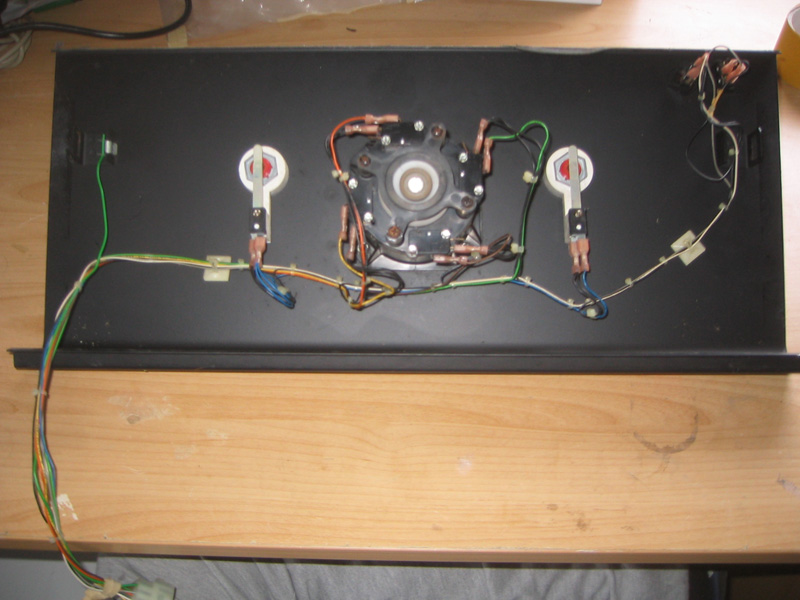

Let's return the control panel... very simple & clean one as you can see

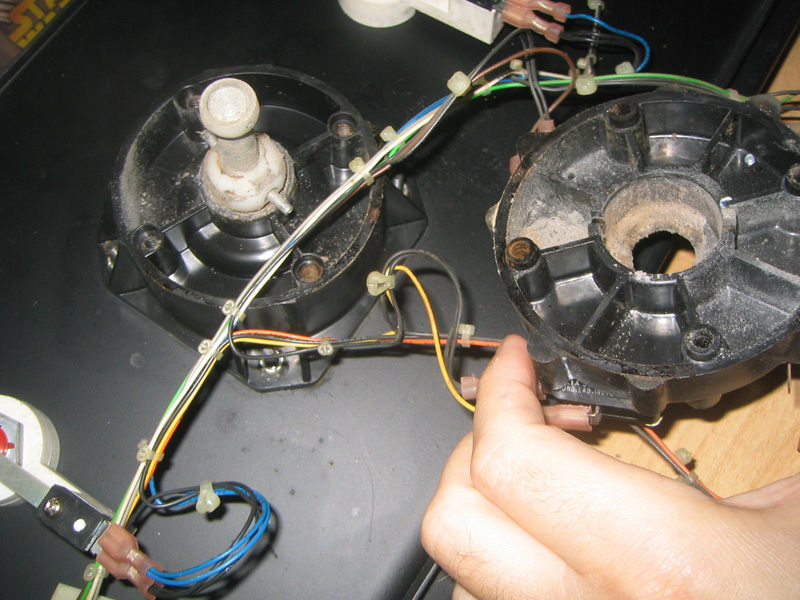

Ok, it seems to be a problem of ...dust   See, the 'white ball' cannot move as it should do    :

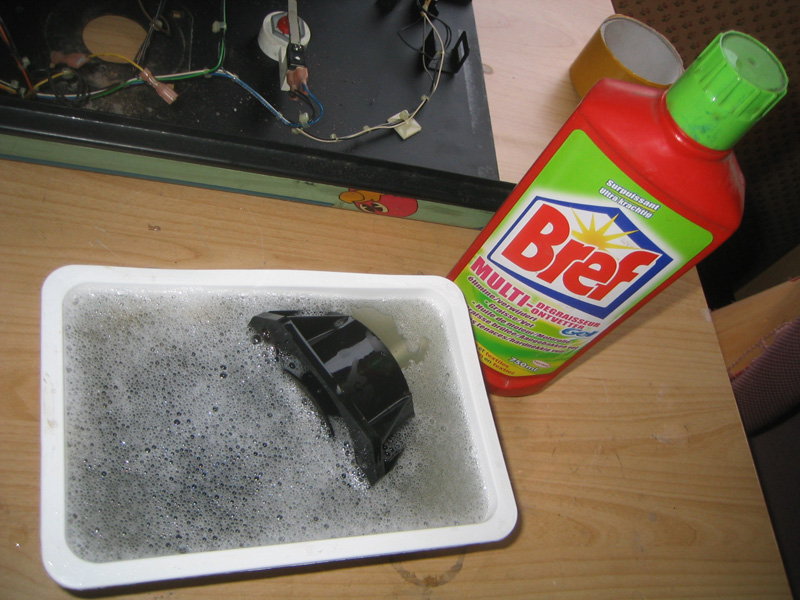

Let's put all the plastic part inside a simple soap+water bath...



'Almost' like new?

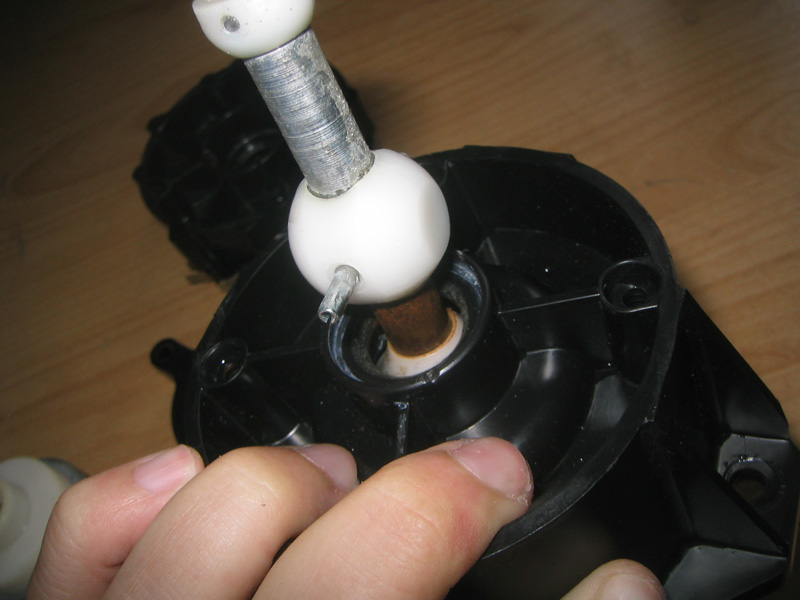

...not exactly, but clean enough to be working now   I can go all in four direction without any resistance now, see the 'white ball' dust free

[Superully]

I can go all in four direction without any resistance now, see the 'white ball' dust free

dust-free perhaps, but not rust-free do i see rust there on the shaft?

[Etienne MacGyver]

I can go all in four direction without any resistance now, see the 'white ball' dust free

dust-free perhaps, but not rust-free do i see rust there on the shaft?

no, thats "decorative brown"

[DarthNuno]

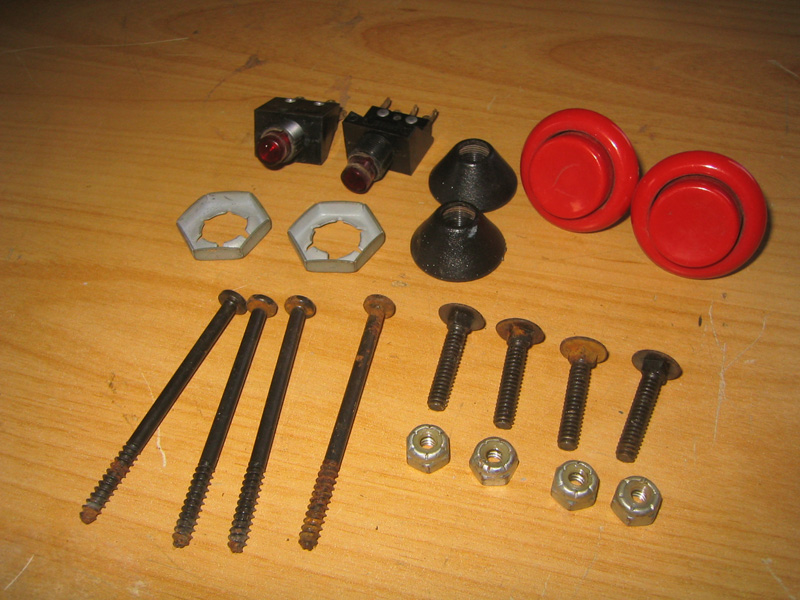

OK, let's continue to clean the CP parts.

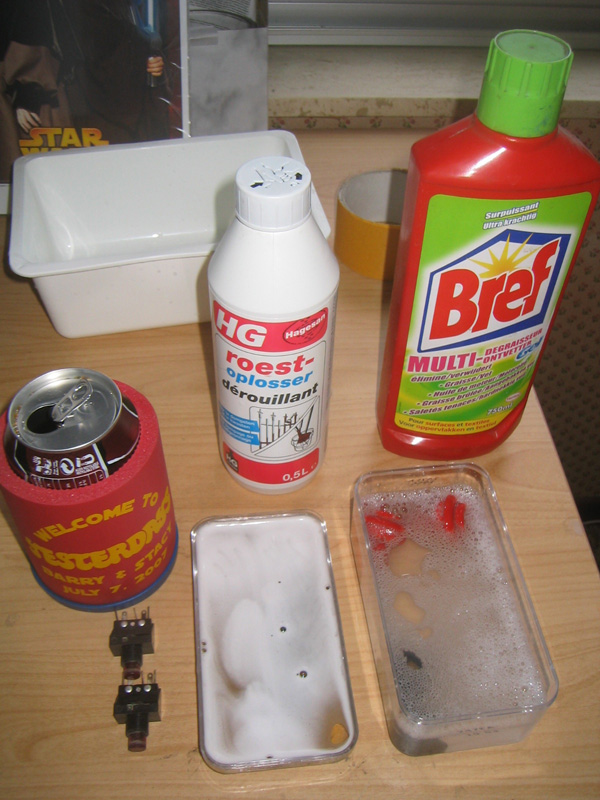

Bath 1 : Anti rust for metal parts / Bath 2 : Strong soap + water for cleaning the plastic parts...



...oh... and yes, 'bath' number 3 for drinking (Dr Pepper inside)

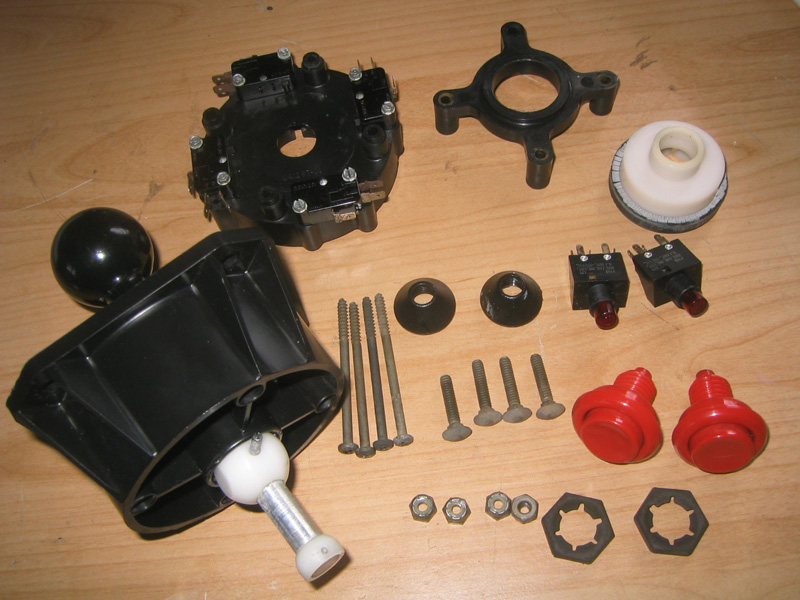

It looks better now :

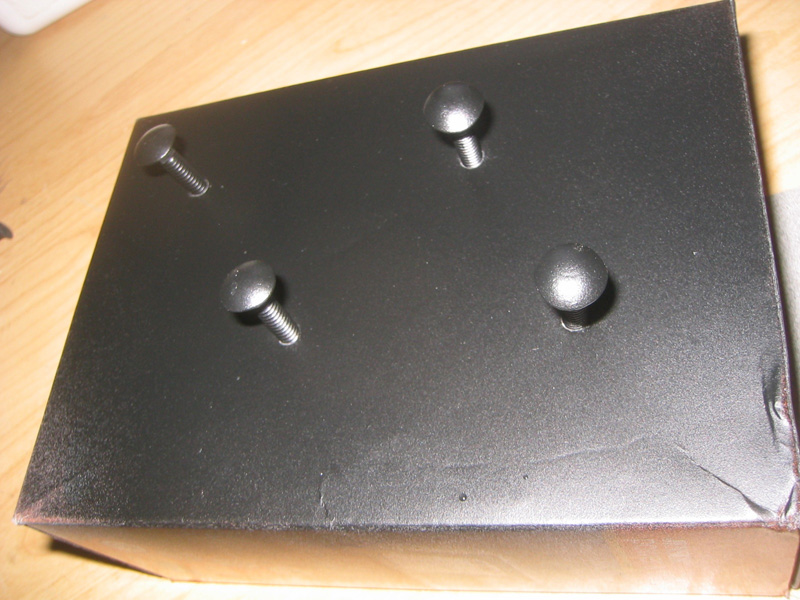

The usual 'mushrooms' picture ... for the 4 screws used to maintain the joystick... beware... fresh paint

[Muerto]

did you sand the 4 screws befor paint?

[DarthNuno]

did you sand the 4 screws befor paint?

Of course

[Muerto]

ok... pics or it did´nt happen!

[DarthNuno]

ok... pics or it did´nt happen!

Hey... it's a 'Lazy' roadtrip, and also... a 'Lazy' restoration... so, I don't publish all the steps

[Muerto]

but i wanna study your technique...

[slowcade]

What grit sandpaper do you use? 200?
