donkey kong build from scratch

[Etienne MacGyver]

Ah, i know them :-)



https://www.dragonslairfans.com/smfor/index.php?topic=2109.msg25947#msg25947

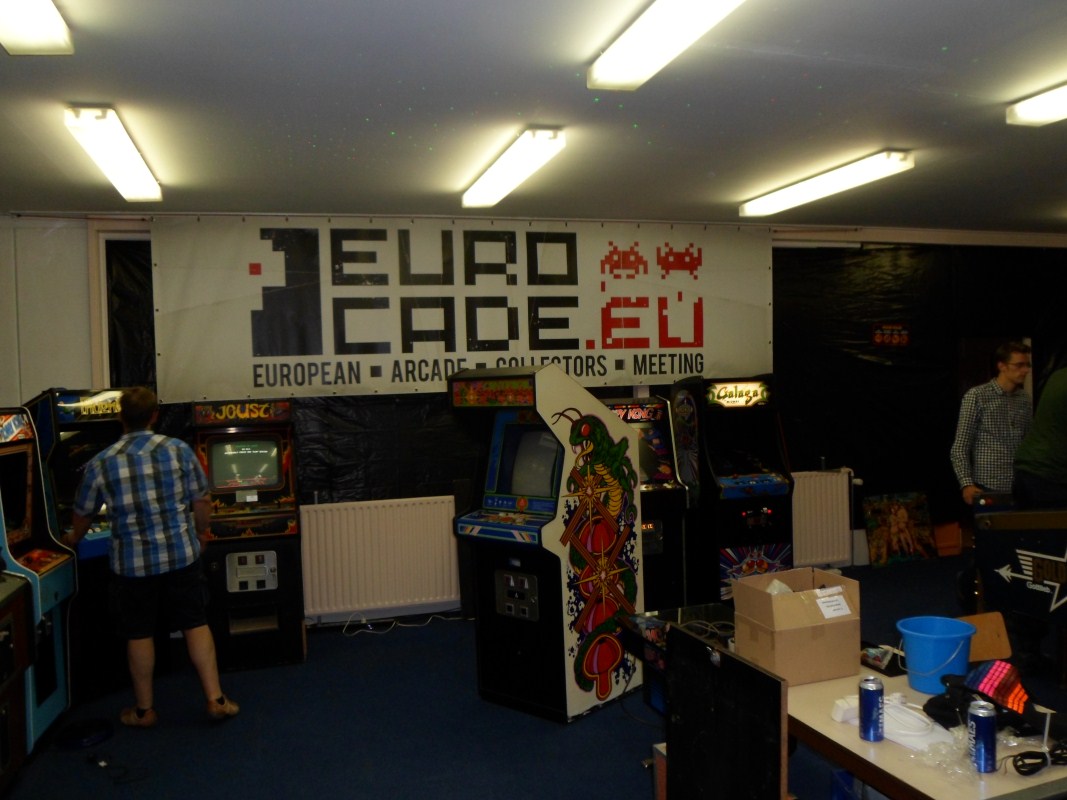

Also the banner came form them :



and the memorabilia i made for Aart at Eurocade 2012:

[count3rkill3r]

someone know what the original size of the side art in cm is?

[Etienne MacGyver]

If i open the PDF from zorg in Illustrator, i see this :

That cannot be accurate, 10 x 12.5 cm

Perhaps someone with original artwork can measure it ?

[count3rkill3r]

I saw on quarterarcade it is +- 56.5 x 71 cm

[Etienne MacGyver]

that would make sence since the cabinet is 85 cm wide at "1"



EDIT:
Here a adjusted version that has the dimentions as the one you specify:

DKSIDEART565x710mm.pdf

I think i would do the same as sjaak, which is printing the complete side on vinyl including the blue

[count3rkill3r]

Hes side isnt completly printed the side art was contour cut


Grtz

[ckong]

the one from sjaak looks OK for me so i think i gonna do it that way.

i safe lots of $$ with that

And it looks fine for me, Ok for the die hards of this forum it will be not okay maybe but for me it is good as it is i never saw a real donkey kong cab in my life because in belgium they are very rare so its ok for me :-)

And after all your cab will be a repro, so I guess it is OK not to use the best stuff available.

[count3rkill3r]

package arrived this morning

looks very good

sorry for the phone pics and the bad shot


there also arrived a i-pac



the side art will arrive tomorrow dunno why they ship in 2 times? lol


grtz

[Sjaak]

Looks good!

the side art will arrive tomorrow dunno why they ship in 2 times? lol

I know..I'm building a fort with all the DHL triangle boxes

[count3rkill3r]

hehe

i only need a good knife for cutting out the bezel ,
I think that is not so simpel i think my wife need to do this

[Superully]

good luck for cutting out the bezel, one of the reasons why i would have invested a little bit more in something solid ready to be used. and what's up with the cpo? colors seems to be off and the overlay itself looks different from the original!

[Sjaak]

colors seems to be off

That could be color variance in your screen, in the cell phone camera or a combination. You shouldn't judge colors based on a cell phone picture displayed on an lcd screen. I've seen the original and the red is much less saturated than that.

And I think that's a two player donkey kong control panel...I don't think count3rkill3r was going for an exact replica...

[count3rkill3r]

Indeed

i am really very happy with the results

the cpo is printed like i want it 2 players the colors are perfect to me i know most of the guys here will go for the most original result but that doesnt bother me i want to make it my way ,ok mayby this is not the perfect forum than but i want to share IT here just for fun

about the bezel cut that will be a bit difficult but i am sure this gonna be allright

Grtz

[Superully]

alright, didn't know that! good luck with the cutting - have fun

[count3rkill3r]

More things arrived


side art



colors seems to be off but thats my camera irl it looks mutch better


i go with an lcd screen , so i ordered a slg3000

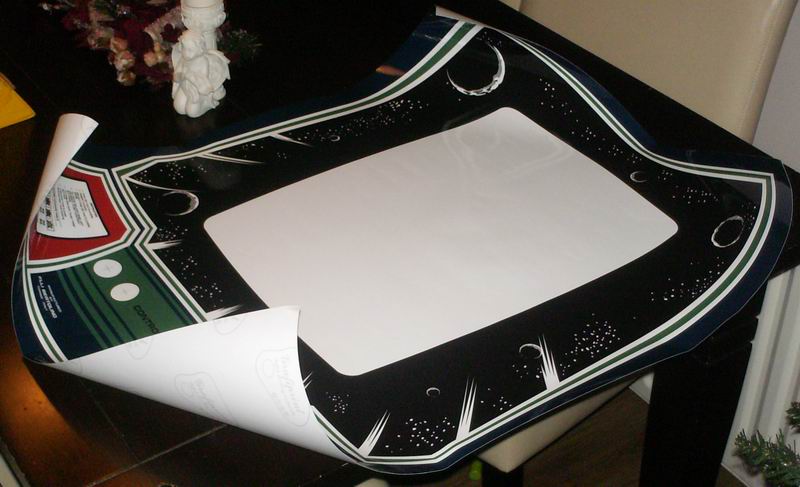

better shot of the bezel




next things i need is

marquee
buttons
joysticks
T molding
coindoor
plexi
lcd screen
pc

and a couple more things i cant remember now
grtz
