I`ve seen some very nice projects with Raspberry Pi. So I took some of the Raspberry Pi and began to play with them. I like the features for arcade and retro gaming offered by such a platform.
So first I tried Chameleon and the Adafruit Arcade Controls Tutorial. Finally I ended up in some project goals.
I want a thin PCB addon with break-outs for interfaces like Power, Audio, Video, Gamecontroller plus some common gamecontroller plugs. Additonally the addon should offer modding interface.
- Thin Client is realized by using gpio for game controller interfaces. Screw Terminals are on-board for connecting Keyboard Encoder
- Audio : Chinch input for line level and pinheader plus screw terminal output for amps and speaker.
- Game Controller Interface for Commodore Amiga, C64 and Atari style 9 pin Joystick
- Game Controller Interface for Neogeo style 15 pin Joystick
- Jamma Interface for use in Bartops or Arcade Cabs.
- Video must be converted from HDMI to your wanted setup. General purpose screw terminals are offered to map RGBS to JAMMA interface
- Power : 5V interface with simple plug (not this USB tiny plug) with on and off switch
- Power 12V and 5V interface for using this project with external 12V amplifier or in Arcade Setups.

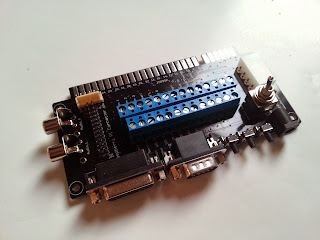

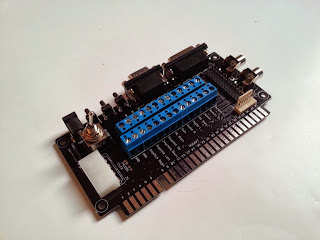

Enough theory, here are the pics
Some examples for the use of connectors

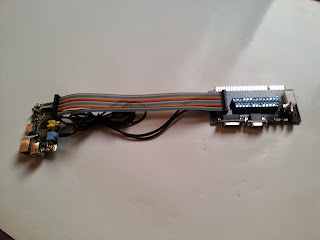

AUDIO, GPIO

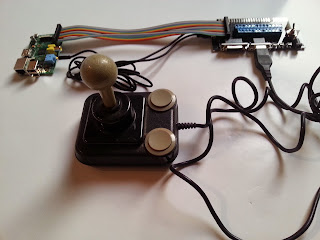

C64 Joystick, GPIO
Connect your Rapsberry Pi to your TV and just start playing with the C64 Joystick your favourite console emulator. GPIO are used for the Gamecontroller Inputs.

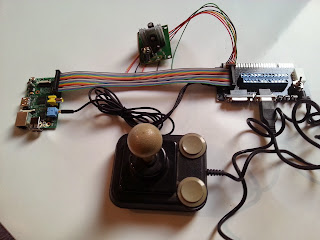

C64 Joystick, GPIO, Audio plus Mono Amp
C64 Joystick, GPIO, Audio plus Stereo Amp
The Audio interface comes with pinout
- 12V
- GND
- Audio Line Level Left
- Speaker-
- Audio Line Level Right
- Speaker+

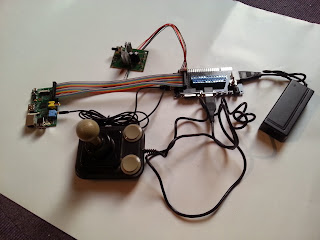

C64 Joystick, GPIO, Audio plus Stereo Amp; 12V and 5V PSU
A short word about the video out. Raspberry offers HDMI and composite out. It would have been so nice to see VGA or something more sophisticated analogue signal. Anyway the Raspberry foundation decided not to support VGA. So video adapters are needed to convert HDMI to a VGA signal with Scanlines or even RGBS for CRTs.
