Re: [From the Love boat/container] : Kung Fu Master! Da Road Trip...
« Reply #30 on: April 12, 2013, 10:18:27 AM »
I do have an original Kung Fu Master boardset that I ripped from my Galaxian cab when I got it. It's been in working order when put in storage, but I'd happily test it again if anyone is interested in it. It's just collecting dust over here.

Martin

Hell yeah!  :spaceace:
Thanks nilfisk!
Bruno you have dibs on that spare board  ;)

DarthNuno

  • Administrator
  • ArcadeLifeStyler'
  • *****
  • Posts: 11709
  • Singe's castle
    • View Profile
    • Dragon's Lair Fans / Arcade LifeStyle
Re: [From the Love boat/container] : Kung Fu Master! Da Road Trip...
« Reply #31 on: April 12, 2013, 07:49:30 PM »
Back from v1 atm (yeah, real time work, it changes!).

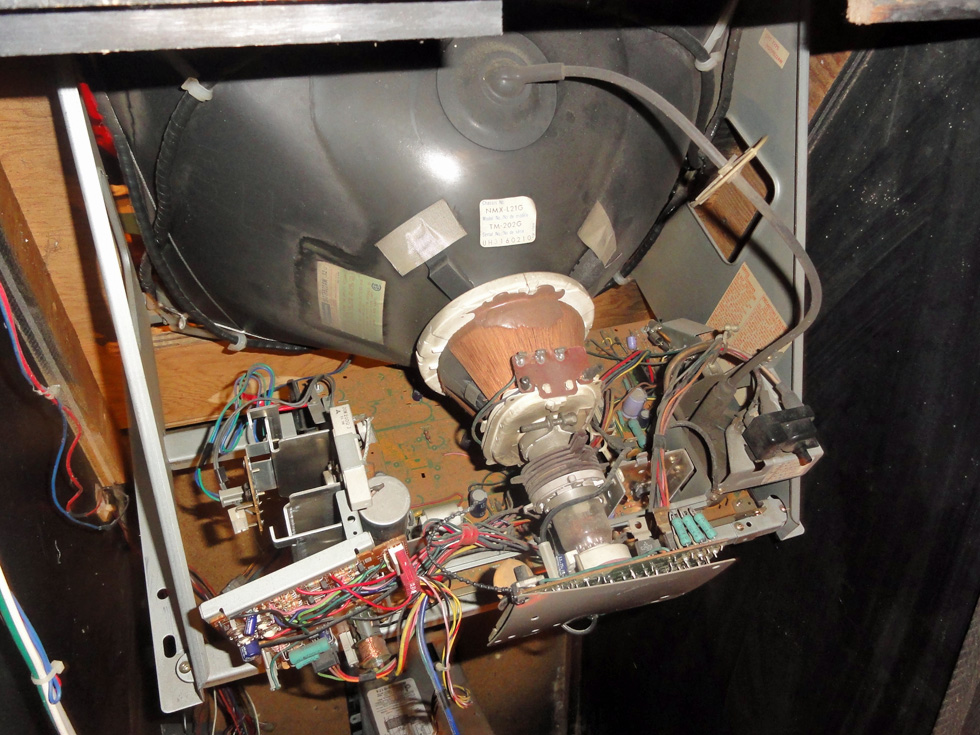

I'm in a hurry. I don't want spending precious time to dismantle a TV and frame it this time. So I'll use one of my *spare* monitor that should be plug'n' play...  let's use this Matsushita nmx l21g  :arrow:



Working! Yeah!  :-*



Yeah, but :

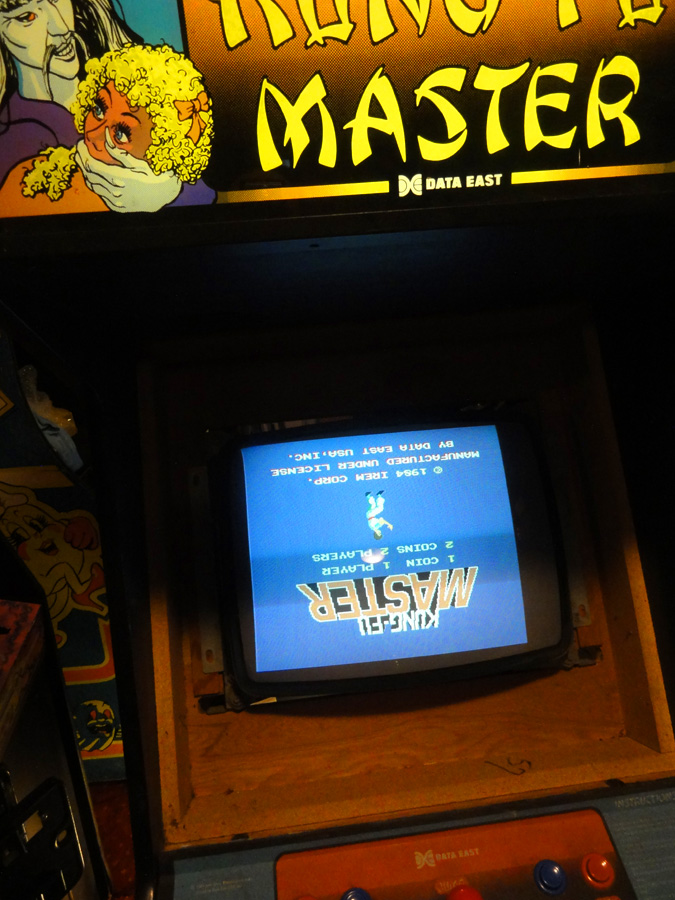

- flipped picture!
- picture size to set.

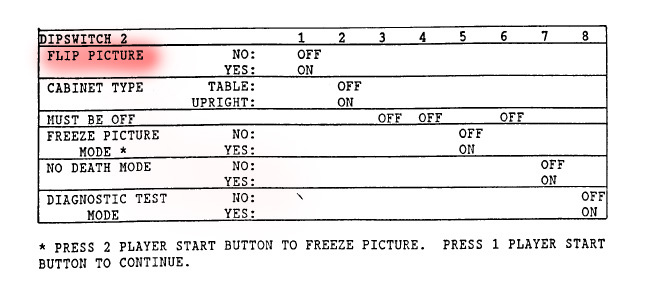

Now that I'm back on my iMac, just checked the Kung Fu Master manual, and I see this  ::)  :arrow:



So next time I'll go in the V1, probably tomorrow morning, I should fix that, and adjust the screen picture size...

DarthNuno

  • Administrator
  • ArcadeLifeStyler'
  • *****
  • Posts: 11709
  • Singe's castle
    • View Profile
    • Dragon's Lair Fans / Arcade LifeStyle
Re: [From the Love boat/container] : Kung Fu Master! Da Road Trip...
« Reply #32 on: April 14, 2013, 07:41:44 AM »
As expected, that switch was the one!  Right picture 'orientation' now :

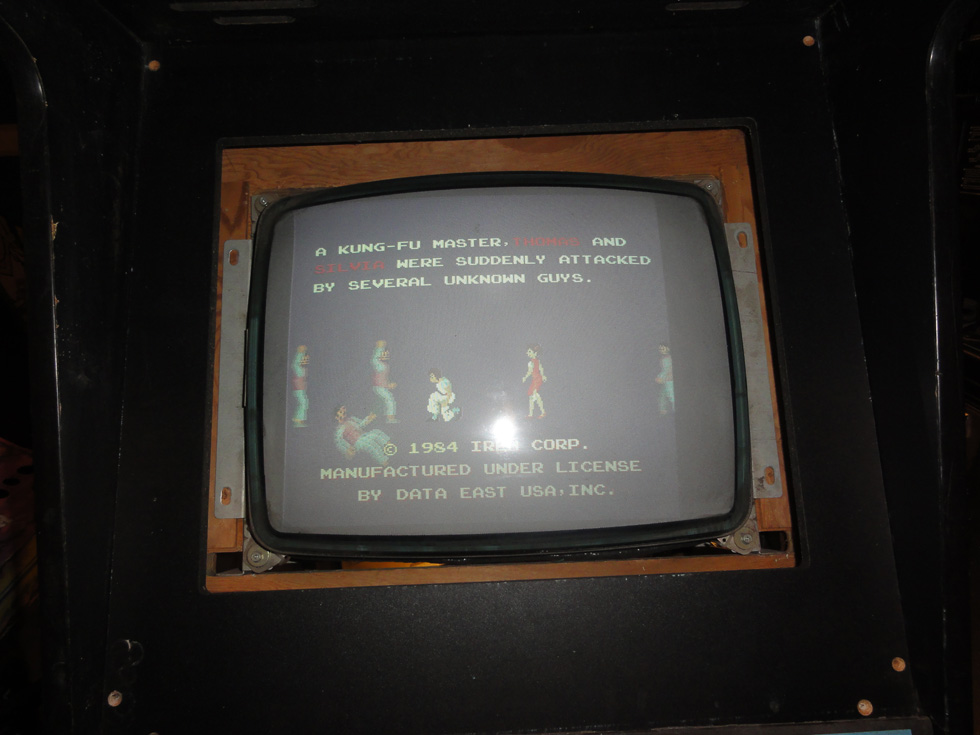

Next step, to setup the picture size. No problem except ... the horizontal size... too small  :arrow:

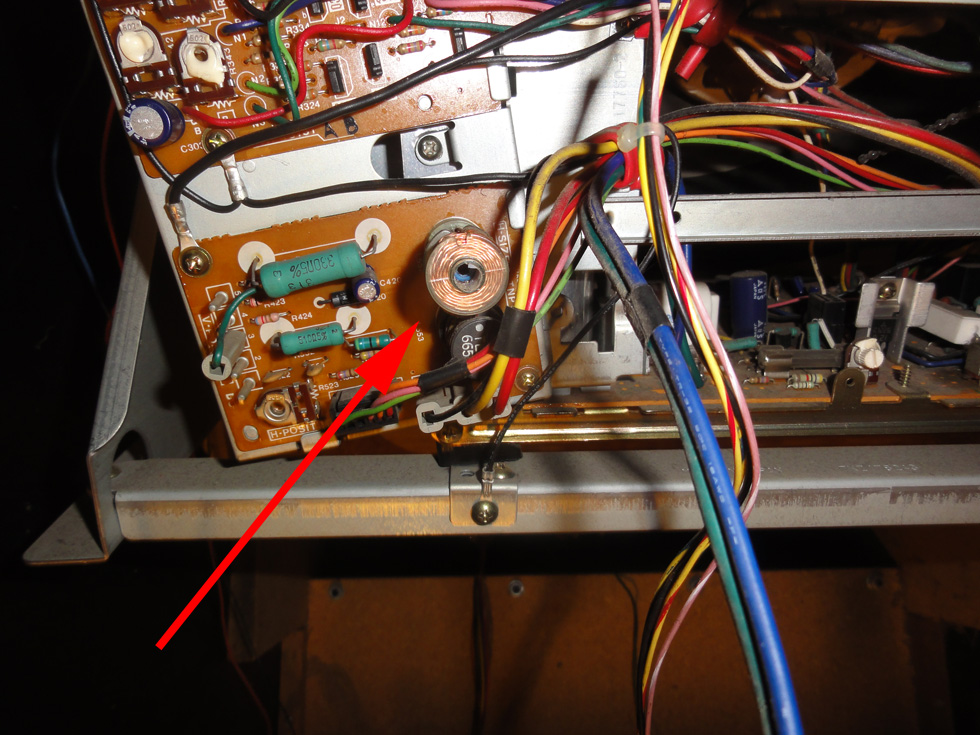

It supposed to be 'this', but when using an allen key to rotate inside, there's no effect at all, not even a single move of the picture? Part to replace?  :arrow:

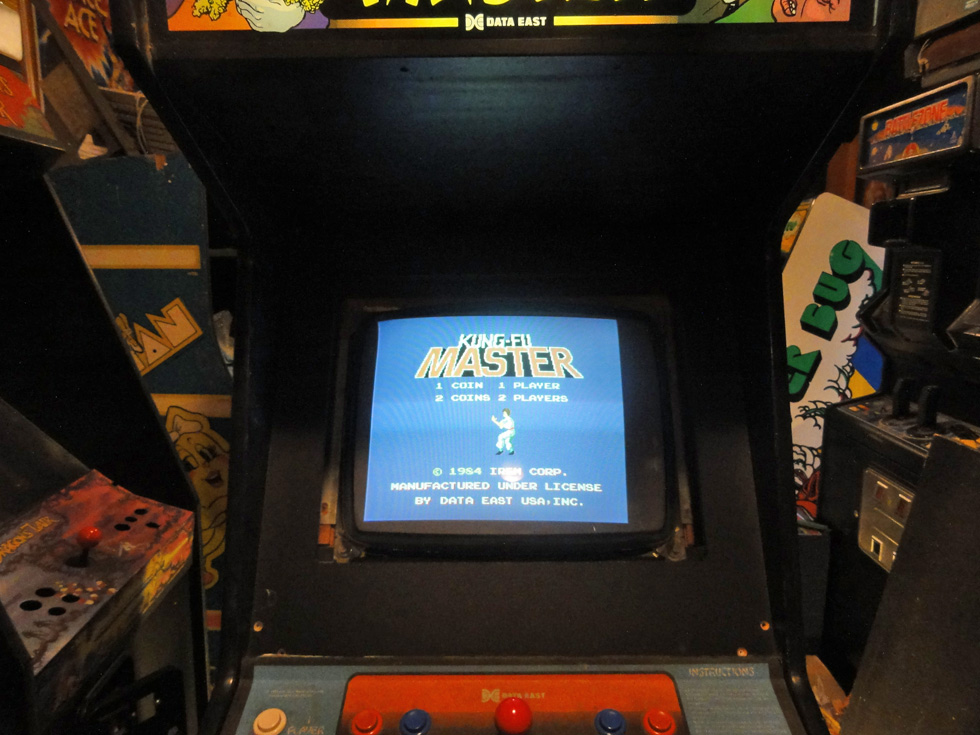

This doesn't stop me to play my first game in good condition :

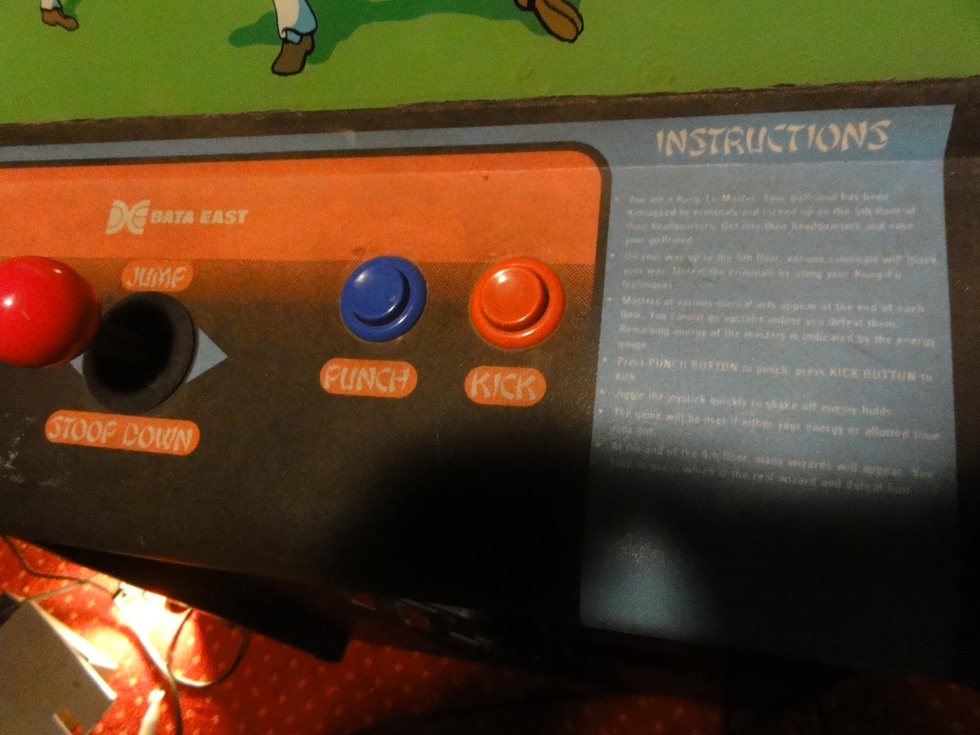

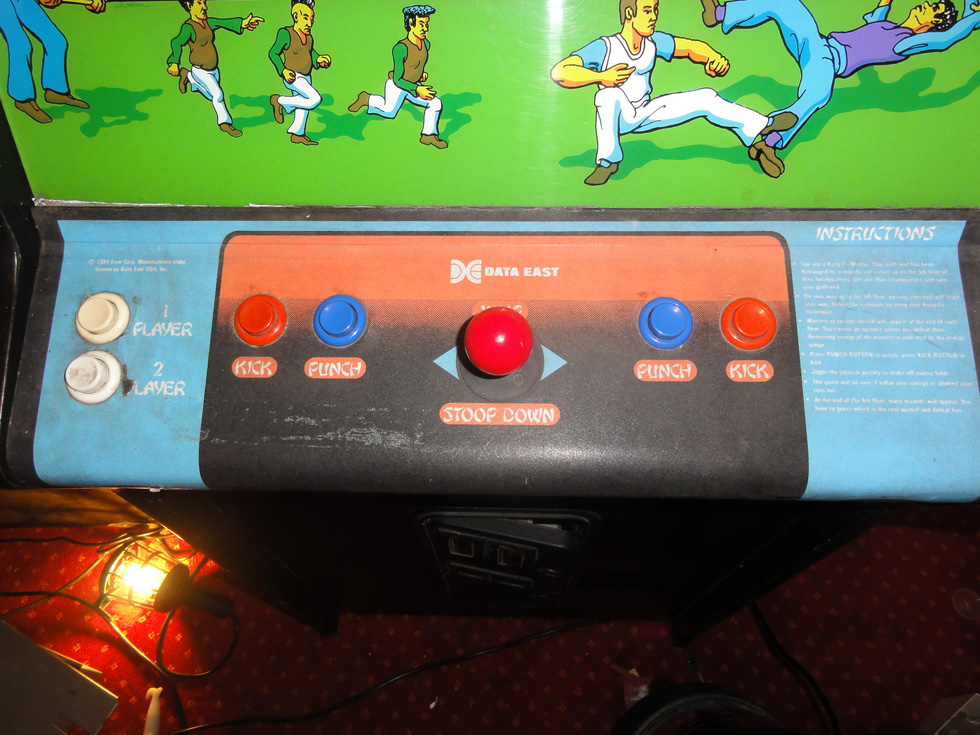

Now let's check the control panel. Well, it's 'used' but not damaged, so there no reason to change it for me.

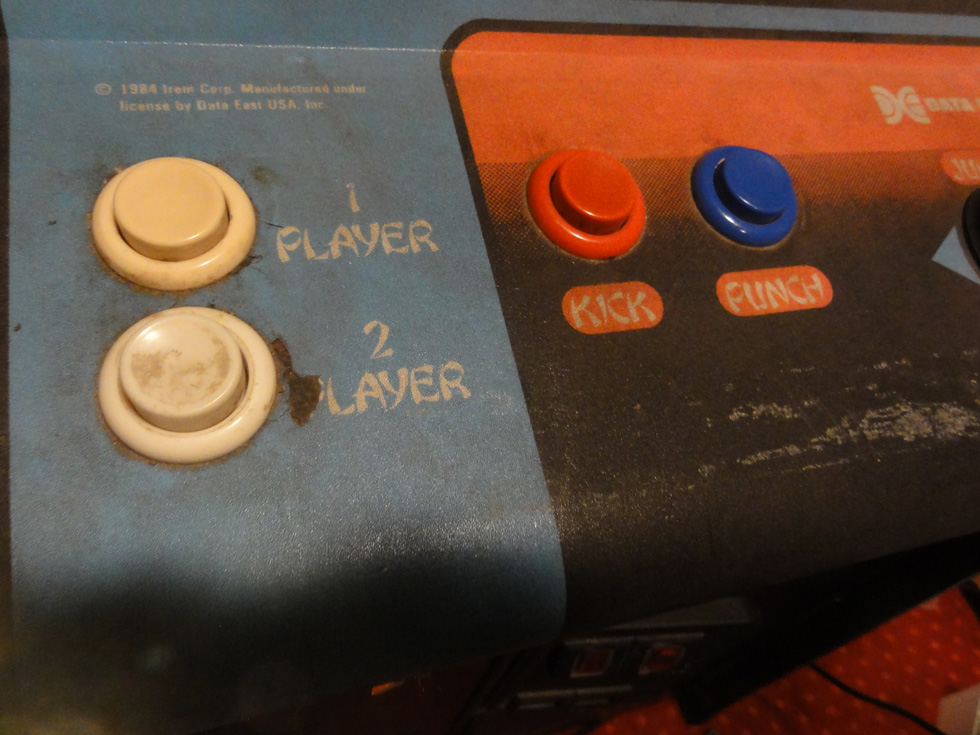

Ok, a small missing overlay part close to the "2 player" button, but I can live with that.
The bottom of the overlay peel of. A good 'glue' advise/method to fix it back?   :arrow:



Dirty here!

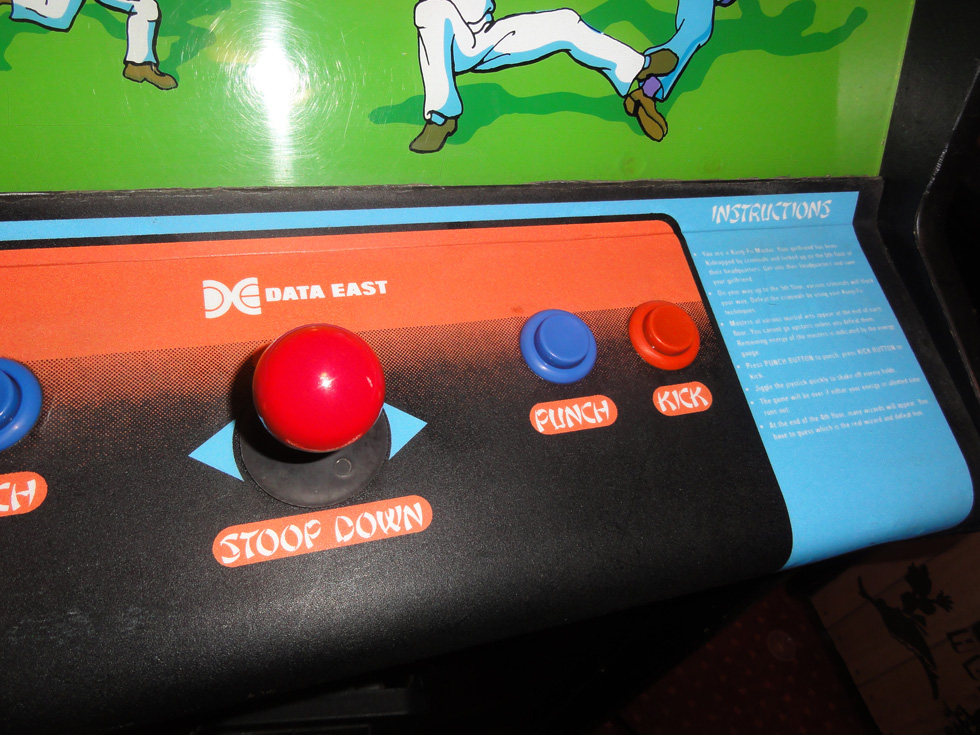

After a "magic sponge" session, it looks far better, huh?  :arrow:

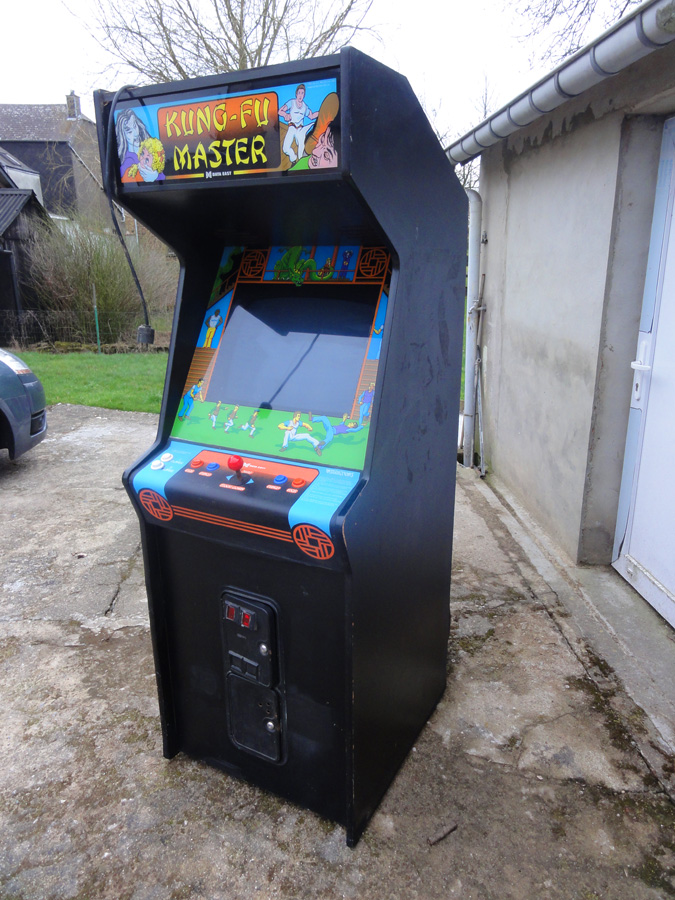

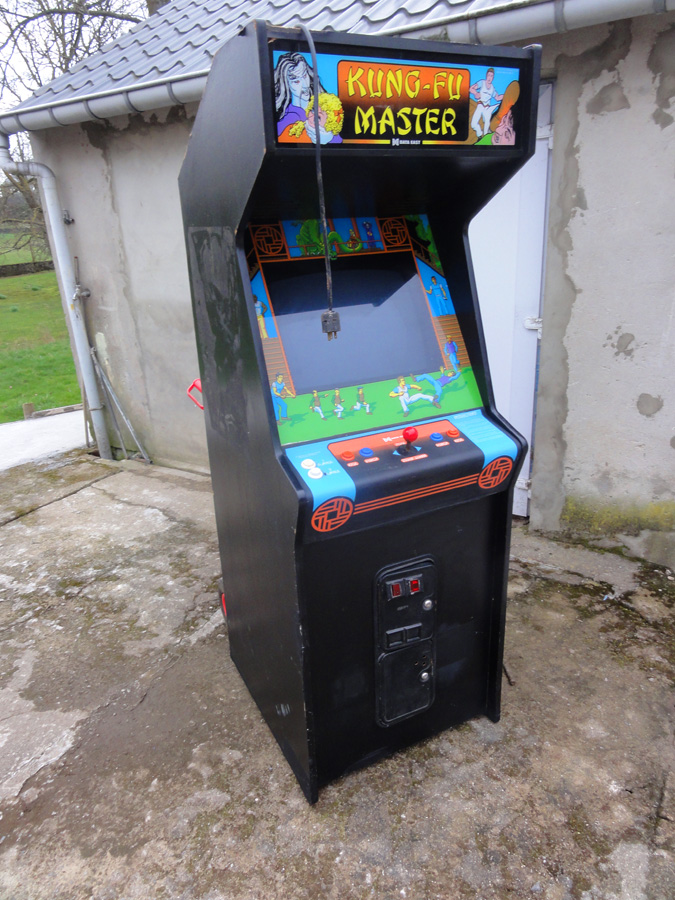

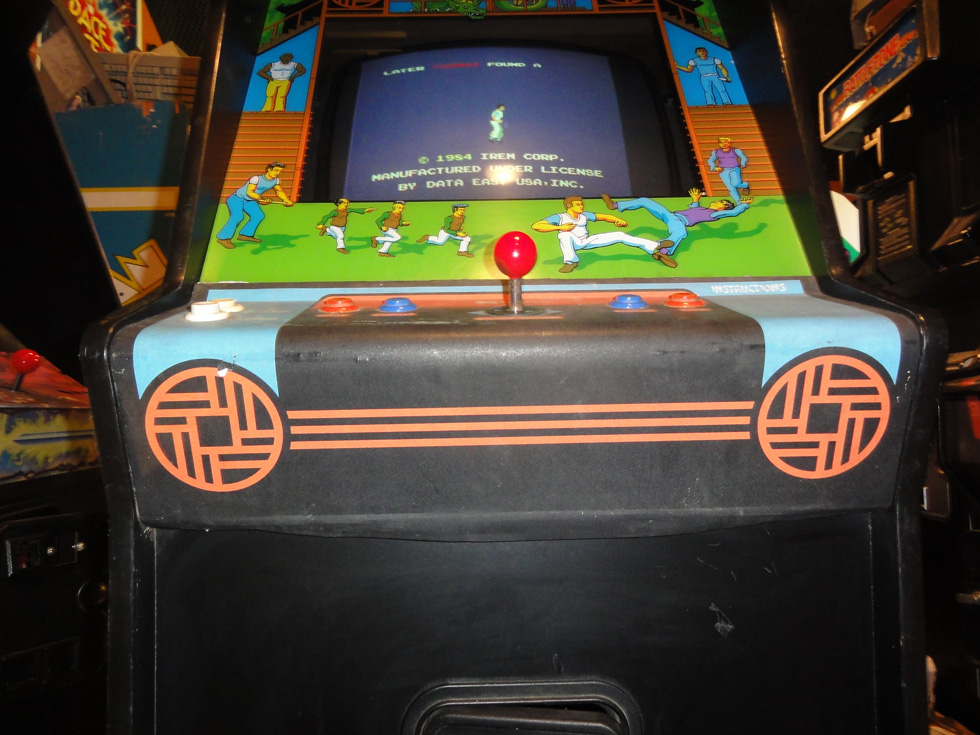

I think it's time for that KFM to leave the 'repair room'  8)



Now I have to order a set of side art...



...that will hide the remain of glue on the sides..

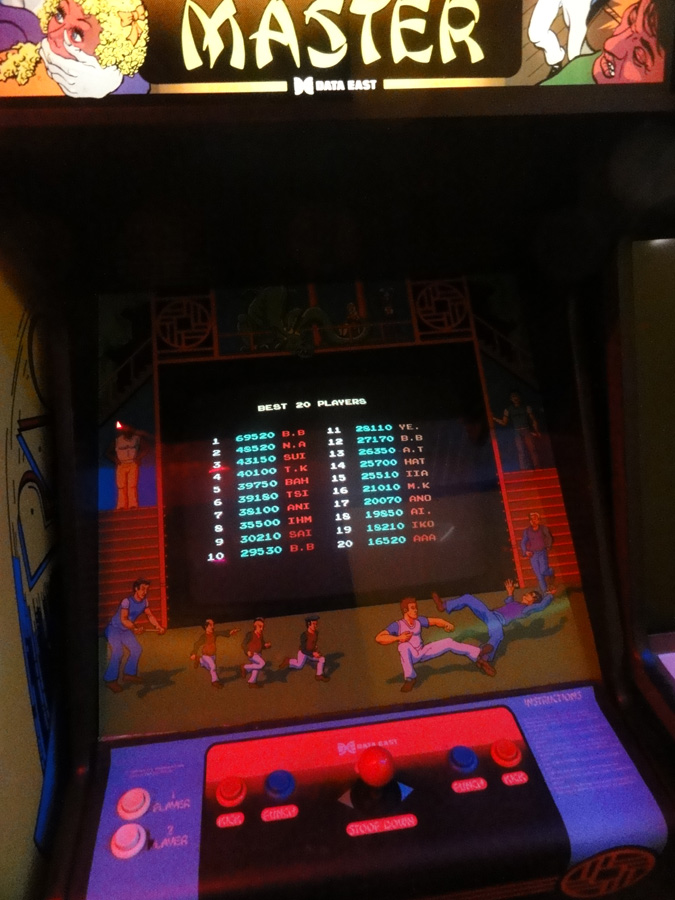

Playing time!  :P My first high score  :lol:  :arrow:



69520 ... floor 4 ... damn, these butterflies are damn hard to pass!

 :spaceace:

ataritoobin

  • Member
  • **
  • Posts: 410
    • View Profile
Re: [From the Love boat/container] : Kung Fu Master! Da Road Trip...
« Reply #33 on: April 14, 2013, 07:50:50 AM »
Evidently Williams replaced a cap in the monitor chassis used in Moon Patrol because the image the Irem PCB (similar to Kung Fu Master/Spartan-X) displayed was so narrow, allowing the image to be stretched horizontally more than usual.  Perhaps something like this is needed?
« Last Edit: April 14, 2013, 07:54:10 AM by ataritoobin »

DarthNuno

  • Administrator
  • ArcadeLifeStyler'
  • *****
  • Posts: 11709
  • Singe's castle
    • View Profile
    • Dragon's Lair Fans / Arcade LifeStyle
Re: [From the Love boat/container] : Kung Fu Master! Da Road Trip...
« Reply #34 on: April 14, 2013, 08:09:43 AM »
Evidently Williams replaced a cap in the monitor chassis used in Moon Patrol because the image the Irem PCB (similar to Kung Fu Master/Spartan-X) displayed was so narrow, allowing the image to be stretched horizontally more than usual.  Perhaps something like this is needed?

Possibly, but it doesn't explain why there's no picture move at all when I'm trying to move that 'part', supposed to be 'H-SIZE'?  :-\  :arrow:


Superully

  • ArcadeLifeStyler'
  • ***
  • Posts: 6300
  • Southern Part of Germany
    • View Profile
Re: [From the Love boat/container] : Kung Fu Master! Da Road Trip...
« Reply #35 on: April 14, 2013, 08:20:24 AM »
hey bruno, are you going to repaint the front or is that it?
all i need is ... PONG - and a select few others: TOUCH ME, DRAGON'S LAIR, JOUST, ROBOTRON, MR DO, SAN FRANCISCO RUSH THE ROCK!!!

DarthNuno

  • Administrator
  • ArcadeLifeStyler'
  • *****
  • Posts: 11709
  • Singe's castle
    • View Profile
    • Dragon's Lair Fans / Arcade LifeStyle
Re: [From the Love boat/container] : Kung Fu Master! Da Road Trip...
« Reply #36 on: April 14, 2013, 10:55:40 AM »
Small touch up here & there, mostly on the sides... will do when I'll have the side art stickers, but nothing more! There's not reason to fully repaint the front for me.
As I say... I keep things used... part of the charm & history of a cabinet  8)

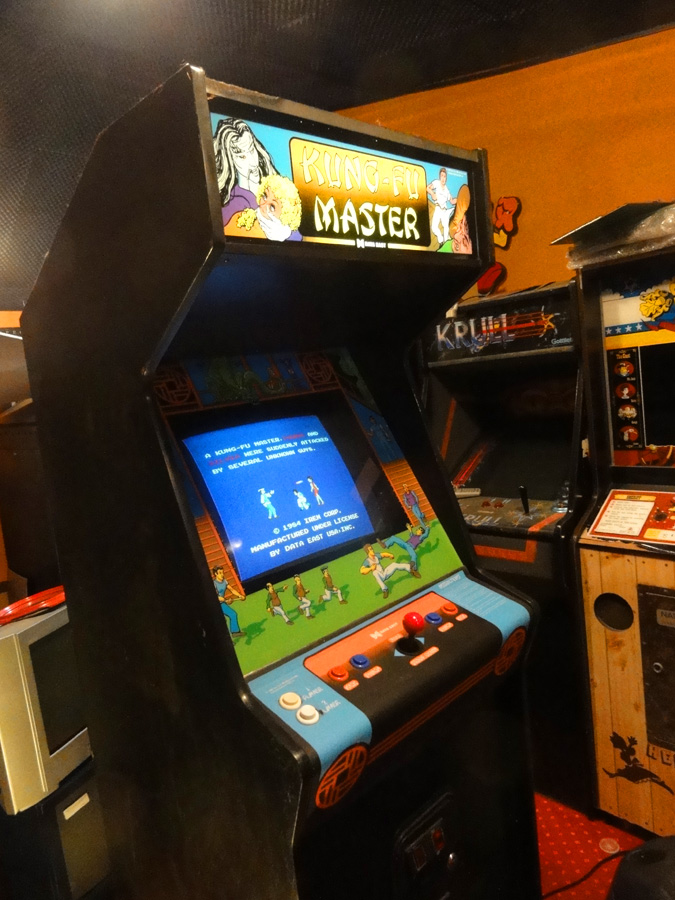

Dare to say my KFM doesn't look gorgeous now?  ;D

slowcade

  • Member
  • **
  • Posts: 497
  • Norway
    • View Profile
    • http://slowcade.blogspot.com/
Re: [From the Love boat/container] : Kung Fu Master! Da Road Trip...
« Reply #37 on: April 14, 2013, 01:25:28 PM »
All these water damages because of the missing legs, most probably! Let's fix that once for all!  :arrow:





Where do you buy these leg mounting plates? I have only seen them with the hole in the center.

DarthNuno

  • Administrator
  • ArcadeLifeStyler'
  • *****
  • Posts: 11709
  • Singe's castle
    • View Profile
    • Dragon's Lair Fans / Arcade LifeStyle
Re: [From the Love boat/container] : Kung Fu Master! Da Road Trip...
« Reply #38 on: April 14, 2013, 02:06:47 PM »
Where do you buy these leg mounting plates? I have only seen them with the hole in the center.

Can't remember, had them in a box since ages...

keri

  • Jr. Member
  • *
  • Posts: 12
    • View Profile
Re: [From the Love boat/container] : Kung Fu Master! Da Road Trip...
« Reply #39 on: May 04, 2013, 12:09:01 PM »
great restoration, as usual !!
congratulations !!
and a great game too

synonym9

  • ArcadeLifeStyler'
  • ***
  • Posts: 682
  • ...
    • View Profile
Re: [From the Love boat/container] : Kung Fu Master! Da Road Trip...
« Reply #40 on: November 23, 2013, 12:27:25 AM »



Does it only looks like or is that the same cabinet like the Karate Champ???
I have a dream....that one day....all members of forum are the same....no matter how long ago they have joined, how many games they own or how many posts they wrote ;)

DarthNuno

  • Administrator
  • ArcadeLifeStyler'
  • *****
  • Posts: 11709
  • Singe's castle
    • View Profile
    • Dragon's Lair Fans / Arcade LifeStyle
Re: [From the Love boat/container] : Kung Fu Master! Da Road Trip...
« Reply #41 on: August 27, 2016, 11:42:38 PM »

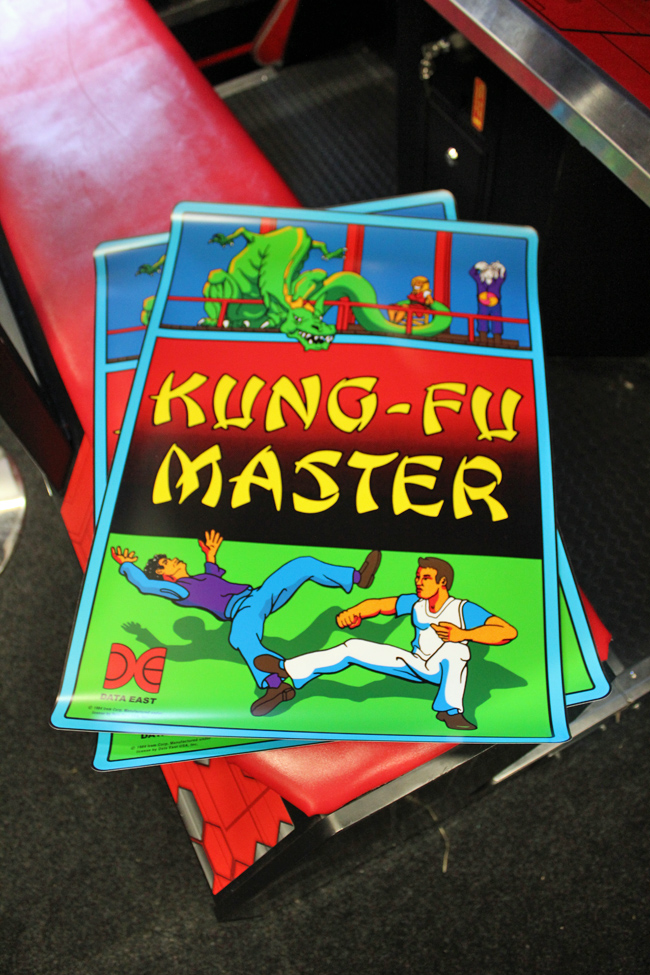

...and three years l8ter, I finally bought the sides art of the game...better late than never  :P  :arrow:

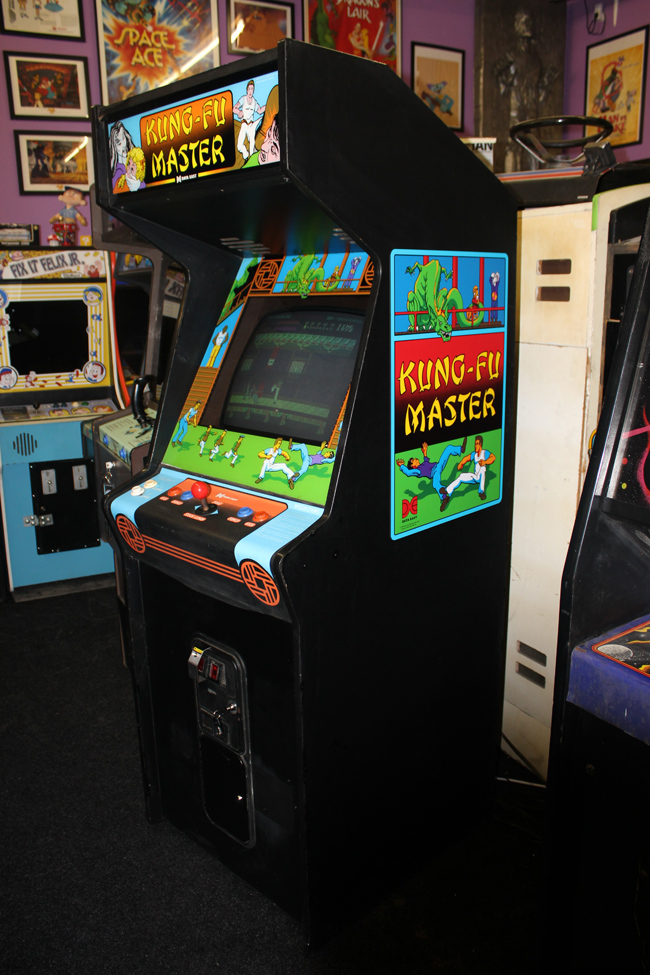

Applied! it looks great now  :-*  :arrow:


itruk

  • Jr. Member
  • *
  • Posts: 46
    • View Profile
Re: [From the Love boat/container] : Kung Fu Master! Da Road Trip...
« Reply #42 on: August 28, 2016, 10:18:26 AM »
 :lol:
It's amazing how much different the sideart makes cabinets look.
I'm just finishing up on a euro Dig Dug, with the wood grain sides, and I'm wondering wether to apply the cabaret side art that I have  ???

glstar

  • Member
  • **
  • Posts: 163
    • View Profile
Re: [From the Love boat/container] : Kung Fu Master! Da Road Trip...
« Reply #43 on: August 29, 2016, 08:37:16 AM »
This cab is just amazing.
I love it.
And i have sweet memories of me playing it when i was young.
I remember to have pass around 8 hours in a house of my mother's friend, full of cabs because her cousin was a local operator, playing this and exciting soccer......
I really enjoy that day.
 ;D

Q*ris

  • ArcadeLifeStyler'
  • ***
  • Posts: 2501
  • CAP'TAIIIN ARCADE!
    • View Profile
Re: [From the Love boat/container] : Kung Fu Master! Da Road Trip...
« Reply #44 on: August 29, 2016, 10:52:45 AM »
Pretty cool!!!
You just reboosted me to finally work on mine.
