Author Topic: Galaxian≥ Theater 6 - The Installation Manual  (Read 8721 times)
DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11574


Singe's castle


View Profile WWW
« on: November 08, 2008, 08:40:54 PM »




I got it !!! What ? The installation manual for the biggest 'arcade game' ever done.
This one will help me to reassemble this monster once I'll have to place to do it of course.

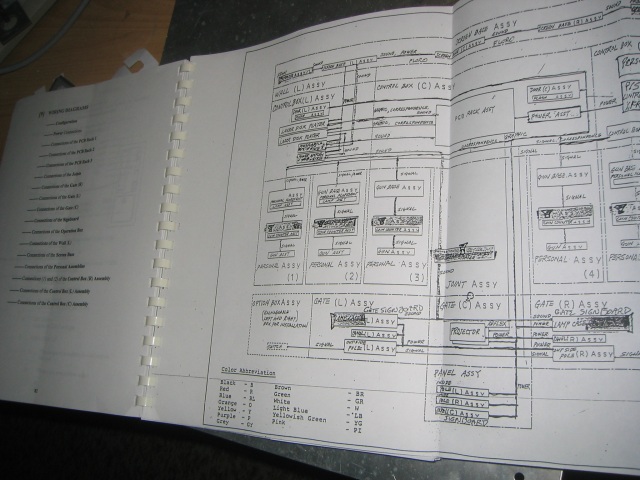

It should also help the understanding of that beast with the lot of schematics inside, especially all the connectivity between all the elements.


Got some informations about this manual the seller (very nice by the way  Kiss) :

- I got the manual direct from NAMCO when they closed down their San Jose warehouse.

- All the items came from the Namco warehouse, but the warehouse is closed. Was there the last week they were there. It is an empty building now. The manuals were the only things I had for the two games you mention (G≥ & Starblade). I did not see a Galaxian 3 game in their warehouse. They could have dumped it before I got there...


OK here the manual picture :



Approx 100 A4 pages, 20 A3 pages



I don't have time to scan it entirely for the moment, but I'll scan the most interesting parts and the segments that should help the understanding of the boards connectivity, for helping the emulation  Wink So as always, stay tuned  Kiss
Logged

DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11574


Singe's castle


View Profile WWW
« Reply #1 on: December 02, 2008, 03:25:43 PM »

I've just orderer this A3 Scanner this morning  arrow

Mustek Scan Express A3 1200 Pro USB Large Format Scanner

Product Features

    * A3-Sized Scanning (297mm(H) X 420mm(V))
    * Color CIS Flatbed
    * Quick and easy USB interface
    * Multiple functions include Scan, Copy, E-Mail, Fax and OCR
    * Valuable Software Packages included

Technical Details

    * Brand Name: Mustek
    * Model: ScanExpress A3 USB
    * Hardware Platform: PC
    * Scanner Type: Flatbed scanner
    * form_factor: Desktop
    * scanner_interface: USB
    * color_support: Color
    * media_size_maximum: A3 (11.7 in x 16.5 in)
    * Color Depth: 48-bit color
    * Maximum horizontal resolution: 1200
    * vertical_resolution: 1200
    * media_type: Plain paper, Bulk objects (such as books)
    * Media Load Type: Manual load
    * Minimum system requirements: Microsoft Windows Vista / 2000 / XP, Apple MacOS X
    * Width: 15.1 inches
    * Depth: 22.2 inches
    * Height: 3.4 inches
    * Weight: 9.5 pounds

I should get it in one week  Wink I'll be able to scan that manual, including the A3 schema  Kiss  It'll also very useful for side art or CPO to scan/vectorize by the way (Dexter, still around ?  Wink Grin)
Logged

DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11574


Singe's castle


View Profile WWW
« Reply #2 on: December 08, 2008, 06:57:27 PM »

Got it today  Kiss  arrow

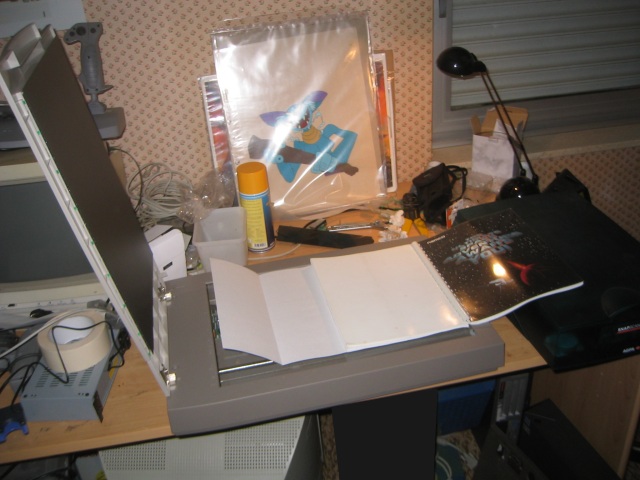

A real monster (see on the right my old AGFA A4 scanner... it looks so small now  CheesyShocked  Grin I quickly plug it in order to test something  Tongue  arrow

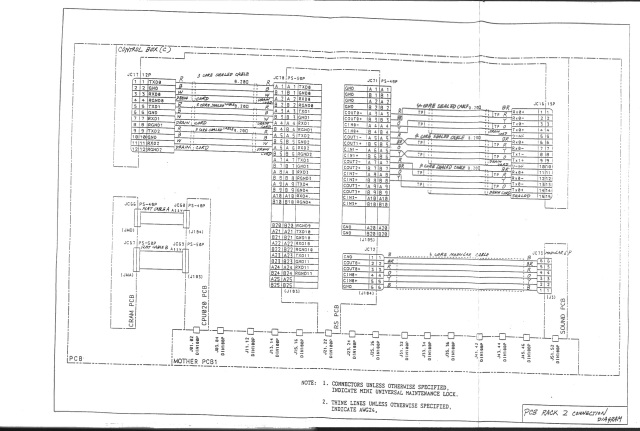

Here's my first test, it's called 'PCB RACK 2 CONNECTION DIAGRAM'  arrow



Ok, few more tests and I'll able to start the scan of the entire book  Wink
Logged

nascar241993
Jr. Member
*
Posts: 8


View Profile
« Reply #3 on: December 18, 2008, 12:45:12 AM »

Good thing you finally got a manual, too bad there wasn't anymore G3 machines(dangit I want one, the thing is huge).
Logged

Dragoon J2 ready for departure!
DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11574


Singe's castle


View Profile WWW
« Reply #4 on: April 03, 2009, 08:27:50 PM »

THIS IS IT!!!

    "Specifications : Power supply : 110v/60Hz, power consumation : 1400W, Projector System : Two Three-tube projectors (for 110" screens), Weight : 2800kg/6200lbs (installed), Dimensions : 16'73" - 16'4" - 8' (270 sqft). Location : Decide the place where to install the unit and check to see if it is large enough..."
Do you want some help for installing your Galaxian 3 Theater 6? Enjoy the complete Installation Manual ;-)


The scan of the entire 'installation manual' is done  Wink

Available right here :



Right click on the picture, and save (44MB .pdf file)

~Enjoy~

 Space Ace
Logged

Sonic 1992
ArcadeLifeStyler'
***
Posts: 882


I Wanna Go Back !


View Profile
« Reply #5 on: April 03, 2009, 11:09:32 PM »

Looks like instructions for assembling the Death Star!   Cheesy   Gonna be a Job!! Wink

Did you see your post count for this... 1981?

You have to make your 1983 about DL!  Grin
Logged
DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11574


Singe's castle


View Profile WWW
« Reply #6 on: January 01, 2015, 10:12:19 AM »

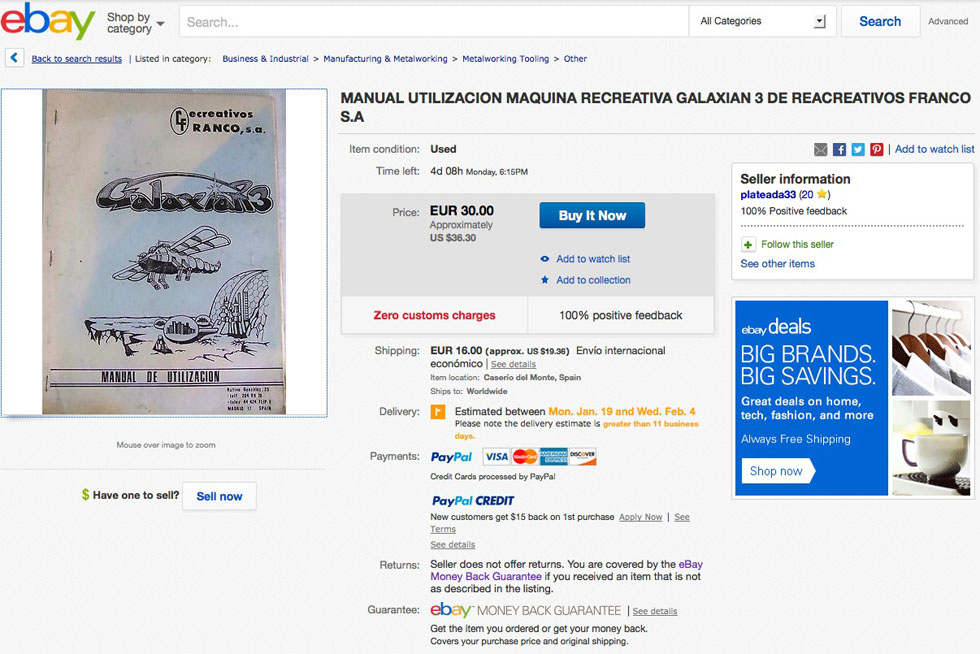

Funny! Have a look at this auction  Cool  arrow



Is there a *spanish* boot version of Galaxian called Galaxian3?  arrow



And what if it was really related to Galaxian3? .... Naaaaaaa!   (but what if?  Roll Eyes)
Logged

Level42
ArcadeLifeStyler'
***
Posts: 13514


Ridderkerk, arcade capital of Europe !


View Profile WWW
« Reply #7 on: January 01, 2015, 11:03:52 AM »

Hah, cool...would love to see pics of that machine, or even the inside of that manual.....

I'd also love to have an original Namco Galaxian manual Wink
