Author Topic: :: Road Trip :: Atari ASSAULT (but created by the arcade god : NAMCO!!!)  (Read 21818 times)
Belike
ArcadeLifeStyler'
***
Posts: 4644


Budapest, Hungary


View Profile
« Reply #15 on: April 07, 2013, 01:38:49 PM »

Lucky man!!! Space Ace
Logged
scr33n
ArcadeLifeStyler'
***
Posts: 1674



View Profile
« Reply #16 on: April 07, 2013, 03:58:42 PM »

Lucky man!!! Space Ace

+1  Cool
Logged

PROJECTS FROM SCRATCH:

Galaga - PacMan - Donkey Kong Red Cab - Track & Field Upright - Tempest - Burgertime - Gyruss - Defender - Track & Field Cocktail - Robotron 2084

RESTORATIONS:

Q*bert - Timber
DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11555


Singe's castle


View Profile WWW
« Reply #17 on: April 10, 2013, 06:51:45 PM »

upsidedown......

Yes, it looks like Namco decided to use a different screen orientation for their boards?
I also own Ms PacMan/Galaga 'reunion board', Namco Classics vol 1 & 2 ... and this Assault! All these boards have that same orientation... and of course, no option/switch to easily invert the picture  Tongue
Logged

DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11555


Singe's castle


View Profile WWW
« Reply #18 on: April 10, 2013, 07:10:51 PM »

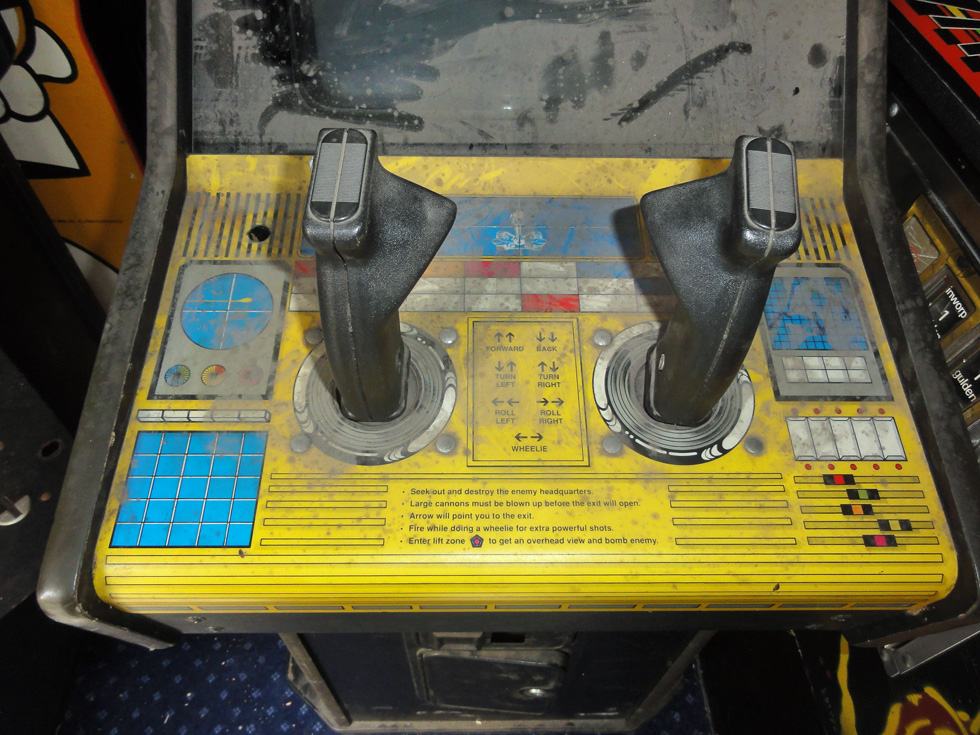

Let's continue the examination... dirty panel...

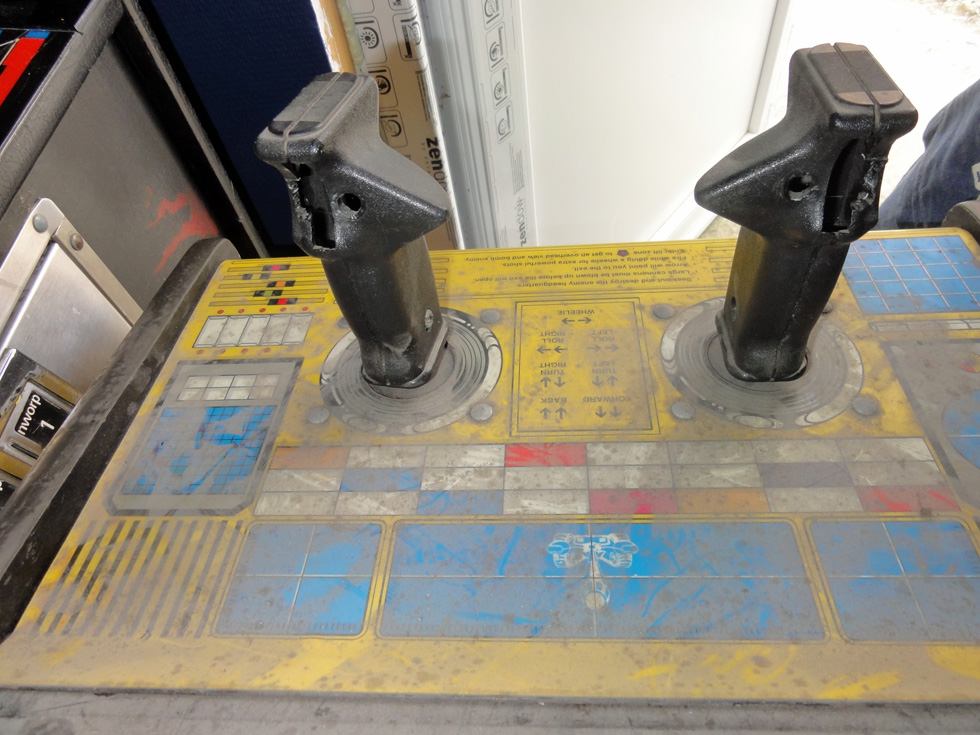

...mhhh, a 'restrictor plate' or something else must be broken inside both Joystick ... they can be rotated, which is not possible normally, see  confused  arrow

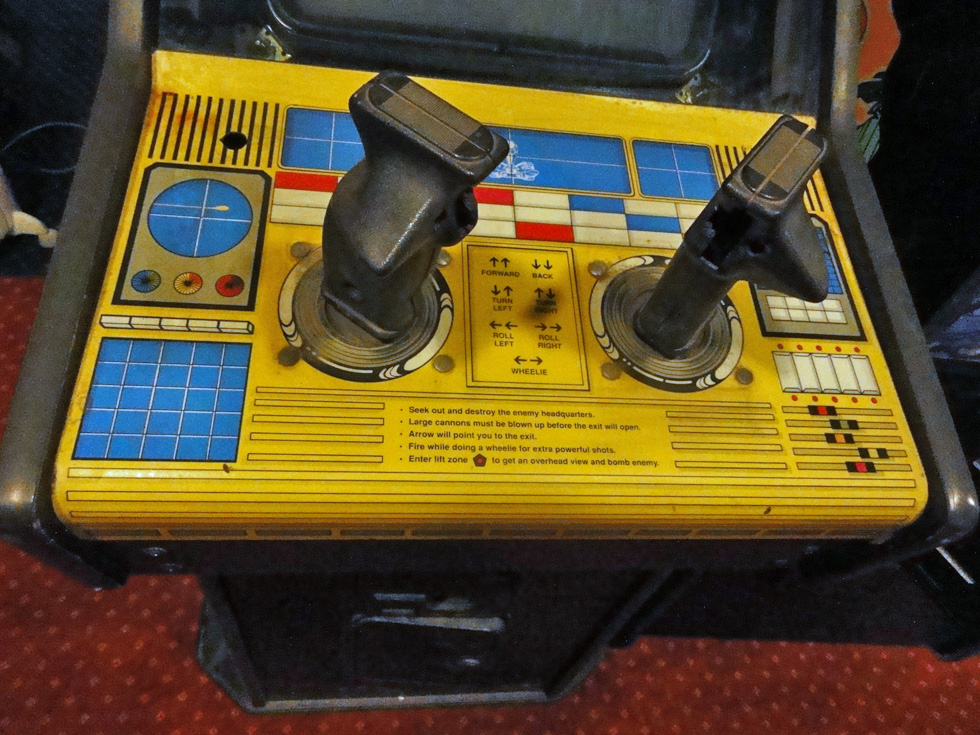

Worst, the triggers are missing, their 'location' are broken, and we also can guess that the operator drilled additional holes with the hope of using other buttons instead the original trigger one!  Lips Sealed  arrow

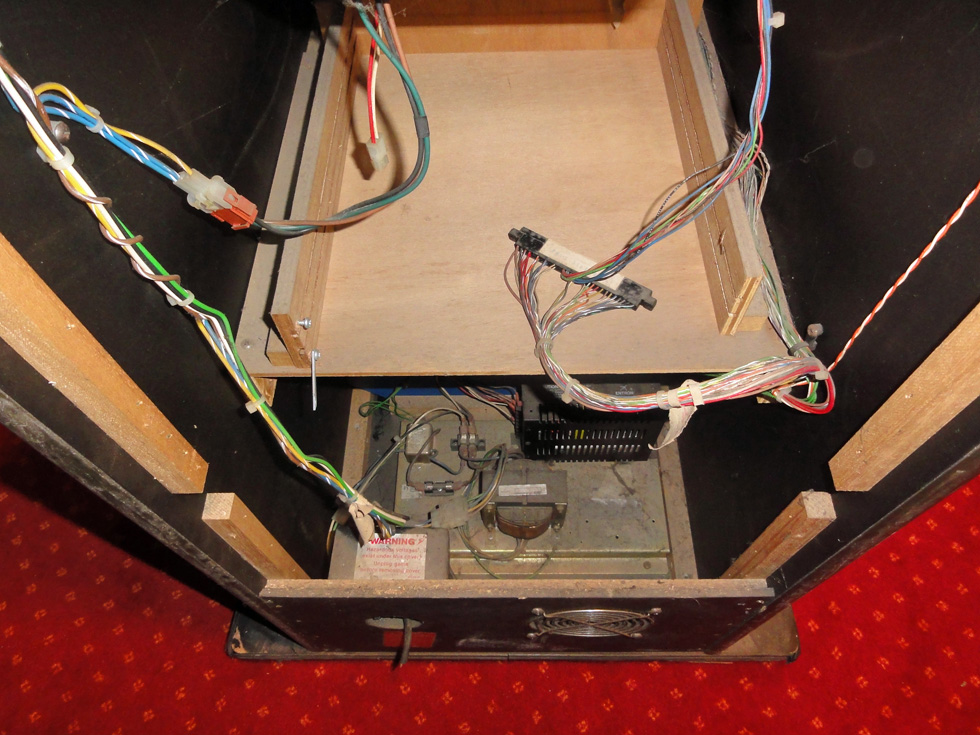

Now, I curious to see if the monitor/power supply still works...

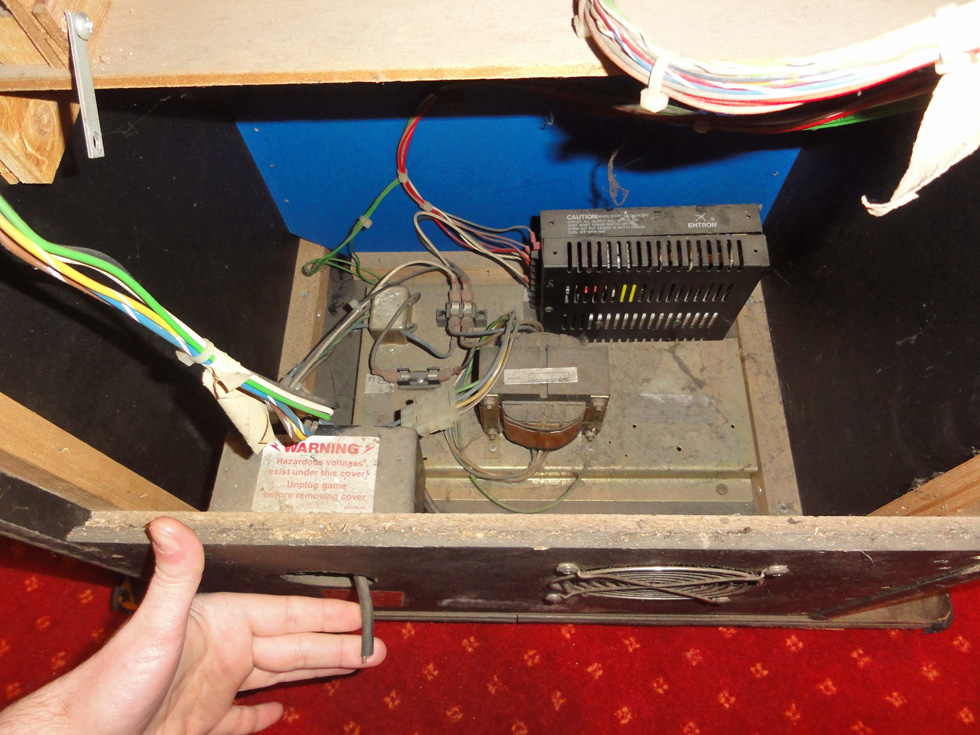

...because, remember, the power cord was cut! I'm wondering why?  arrow

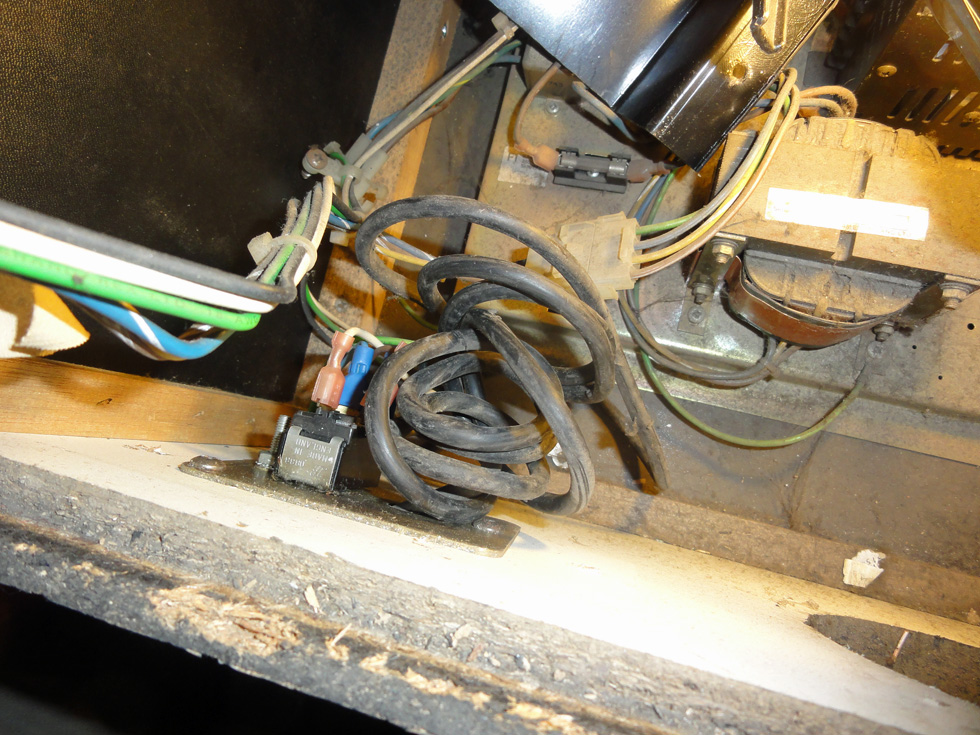

Removing the protection, and I can see the entire power cord, wind round itself... probably cut right before the plug...

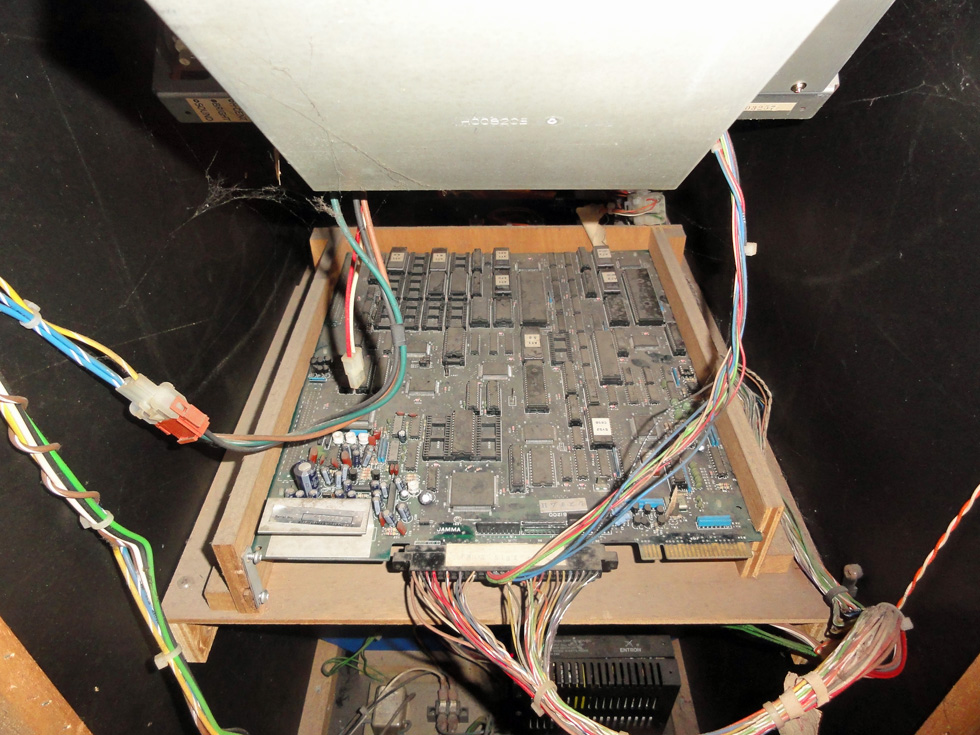

OK, after connecting a new plug, let's plug the board in and...

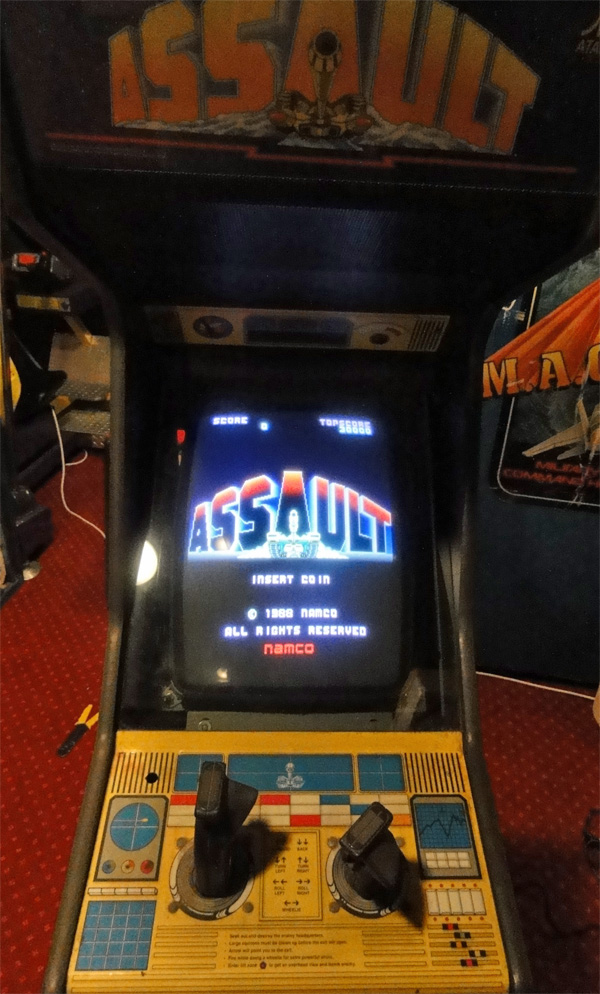

Yeah!!!!  Kiss Kiss Kiss  arrow



Ok, still a lot of work to do on this cabinet, but happy to have a 'working base'  Cool

Logged

Level42
ArcadeLifeStyler'
***
Posts: 13512


Ridderkerk, arcade capital of Europe !


View Profile WWW
« Reply #19 on: April 10, 2013, 07:46:38 PM »

Wow, cut cord usually predicts problems.....nice ! Smiley
Logged

Etienne MacGyver
ArcadeLifeStyler'
***
Posts: 7540


The Netherlands


View Profile
« Reply #20 on: April 10, 2013, 07:52:16 PM »

upsidedown......

Yes, it looks like Namco decided to use a different screen orientation for their boards?
I also own Ms PacMan/Galaga 'reunion board', Namco Classics vol 1 & 2 ... and this Assault! All these boards have that same orientation... and of course, no option/switch to easily invert the picture  Tongue

Crazy kong has the same symptom, you can "fix" that by reversing the yoke wires.

A 4way rocker switch between the chassis and the yoke will do the job, wire it up like this:

EDIT:  oppps whoops forgot the picture



* ScreenShot034.jpg (44.05 KB, 830x548 - viewed 402 times.)
« Last Edit: April 10, 2013, 07:58:10 PM by Etienne MacGyver » Logged

Looking for Repro Decals ?  Visit my webstore !  arrow  http://www.easywebshop.com/arcadedecals
DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11555


Singe's castle


View Profile WWW
« Reply #21 on: May 03, 2013, 11:46:48 PM »

Got from US a pair of 'non broken' Assault dedicated joysticks...



...ready for the transplantation...



...anatomy of an Assault joystick  Grin  arrow



...and operation terminated! See how the previous owner tried desperately to use that joystick, first by the addition of a small button(see the hole), and then by the square hole done on the trigger area to receive that red square button... but unfortunately for him, there's almost no other way to play Assault than using these dedicated joysticks. He finally give up these 'fix' attempts, and pull of this cabinet out of the exploitation  Roll Eyes



Now that panel but also the entire cabinet need a good cleaning...





Magic sponge, soap & water ...and that's it!



Fluorescent tube or stater doesn't work anymore! Let's replace both of them!



(new stuff on the top of the last picture.. it's cool to buy stuff in a shop close to me, for one time!)

On a location test Cool  arrow



Fully playable now! Just few last things to do :

- build a back door (missing)
- add locks
- find a bezel (missing)
Logged

funkycochise
Member
**
Posts: 259



View Profile
« Reply #22 on: May 04, 2013, 09:00:54 AM »

Nice clean up and restoration.
I remember playing this game in late 80ies on generic cab.
Dedicated cab is way better looking.
This game is really nice to enjoy  with its rotating pseudo 3D engine.
Logged
DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11555


Singe's castle


View Profile WWW
« Reply #23 on: May 04, 2013, 09:06:02 AM »

This game is really nice to enjoy  with its rotating pseudo 3D engine.

Yeps, very similar than the famous SNES 'mode 7'.
Logged

Luigi
ArcadeLifeStyler'
***
Posts: 1642



View Profile
« Reply #24 on: May 04, 2013, 11:06:17 AM »

F*cking awesome, Bruno!! Smiley

 Space Ace
Logged
Tyrem
ArcadeLifeStyler'
***
Posts: 1742



View Profile WWW
« Reply #25 on: May 04, 2013, 02:09:32 PM »

F*cking awesome, Bruno!! Smiley

 Space Ace

i love this cab. the shape is just great and it looks very special in every gameroom. would love to own this one some day. Smiley



Logged

Looking for Dragons Lair 1 or 2, Space Ace, Double Dragon, Robotron and yeah... a Shinobi would be cool, too!
