Author Topic: :: KRULL :: - The Road Trip -  (Read 36477 times)
DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11536


Singe's castle


View Profile WWW
« Reply #30 on: January 06, 2012, 05:04:41 PM »

Enjoy that Kult 80s movie  Grin
Logged

Alpha1
ArcadeLifeStyler'
***
Posts: 1130


View Profile
« Reply #31 on: January 09, 2012, 01:23:15 PM »

Bruno - check your pm.
Logged
DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11536


Singe's castle


View Profile WWW
« Reply #32 on: April 05, 2012, 11:08:37 PM »

OK, back on this!

I got that game as 'not working'! It's time to plug in and see what happens  Roll Eyes

...as expected, nothing! No monitor activity, no marquee light, no sound... nothing!

I love these symptoms... it could be a simple power supply problem, fuse or even a simple security switch disconnected... Let's open the cabinet  arrow

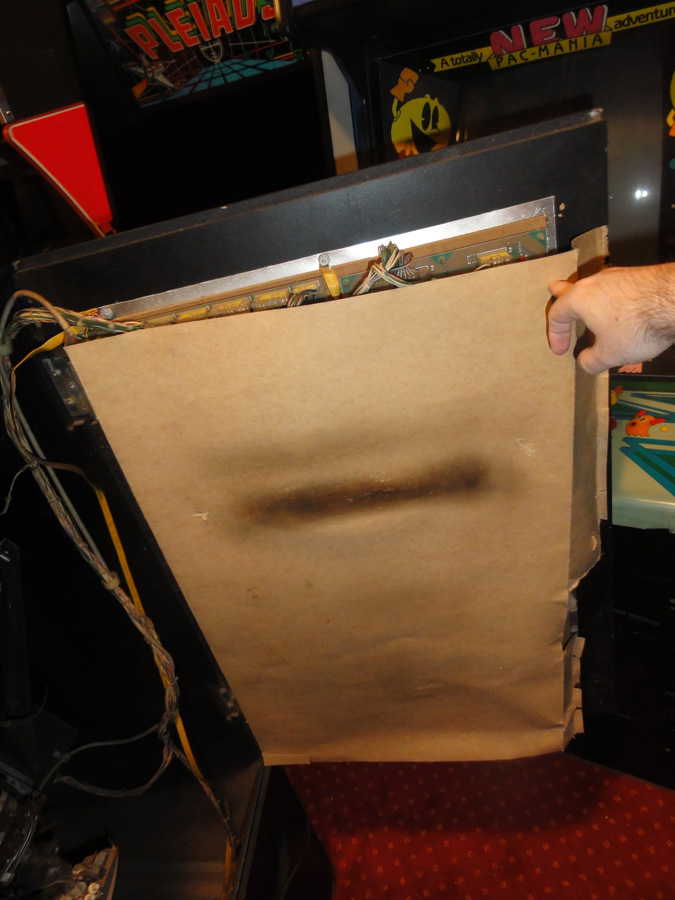

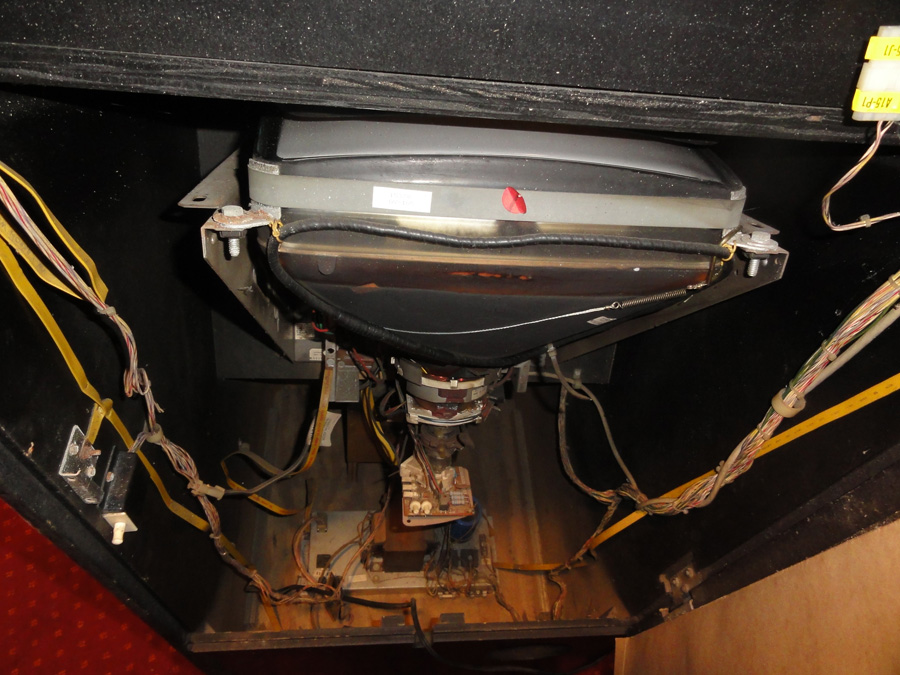

This cabinets looks very clean at first sight... now let's see what behind the curtain piece of cardboard ...

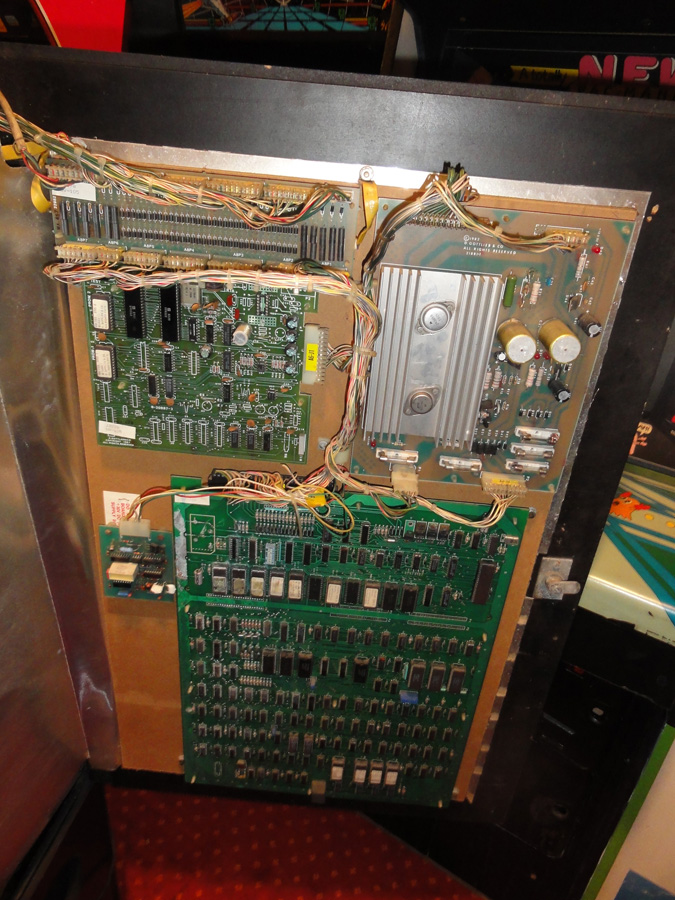

...the boards look not bad...

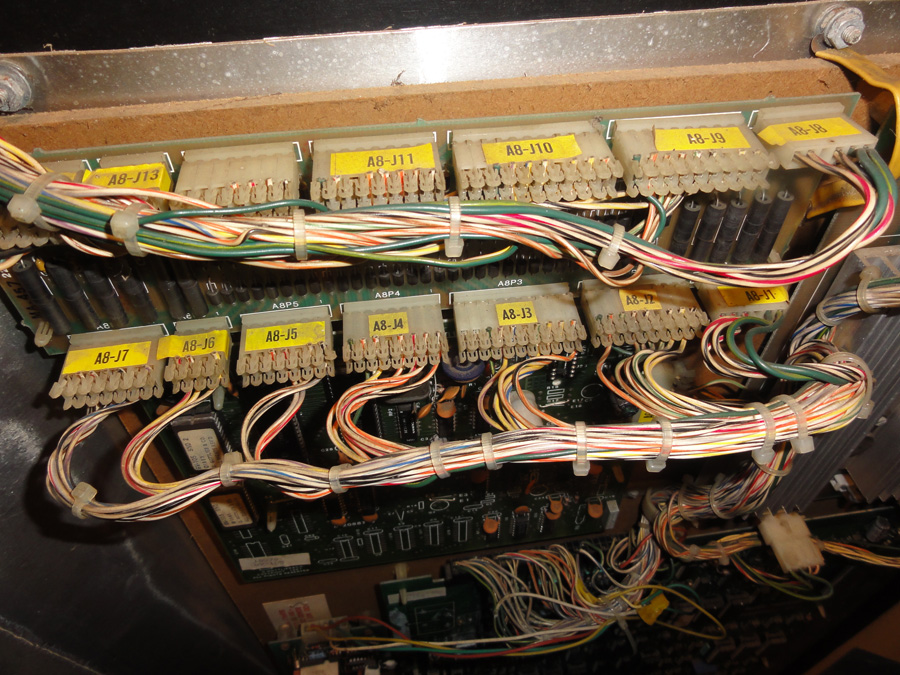

Damn! It looks like a pinball here  shock  arrow



I can see the incoming 220V, but still no output behind power brick... what the hell?

Christ! There's is also a security switch inside the coin door, and of course because the the coins mechs are missing ... no contact so no voltage!



It's the first time I see a security switch at this level?!

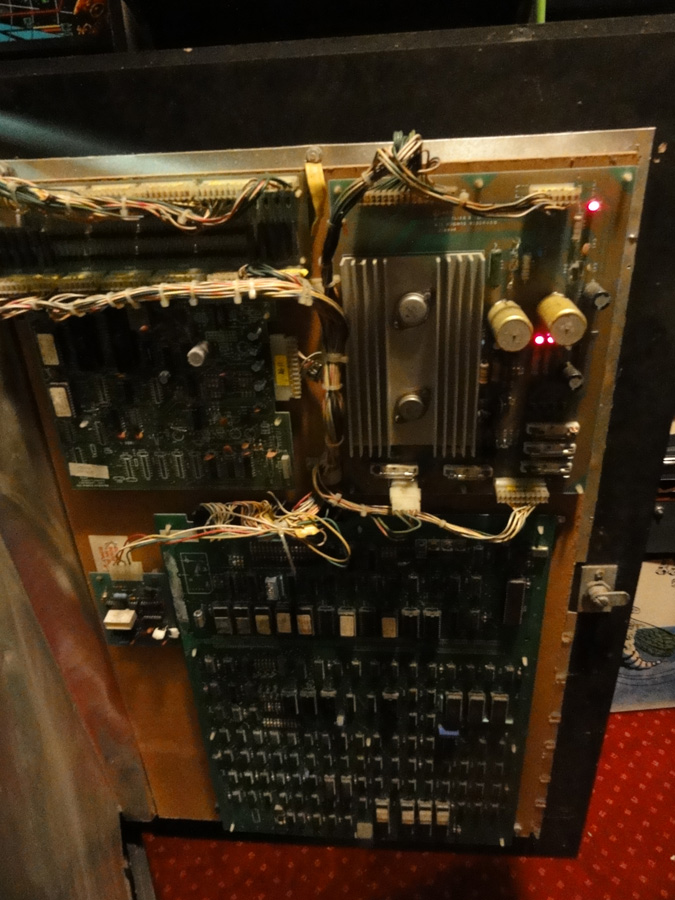

Ok, after 'by-passing it' for my test, I can see 'activity' on boards, here  arrow



Got now the marquee on, a 'now powered' monitor displaying a black screen. No sound, no credit sound, no game test mode... nothing!

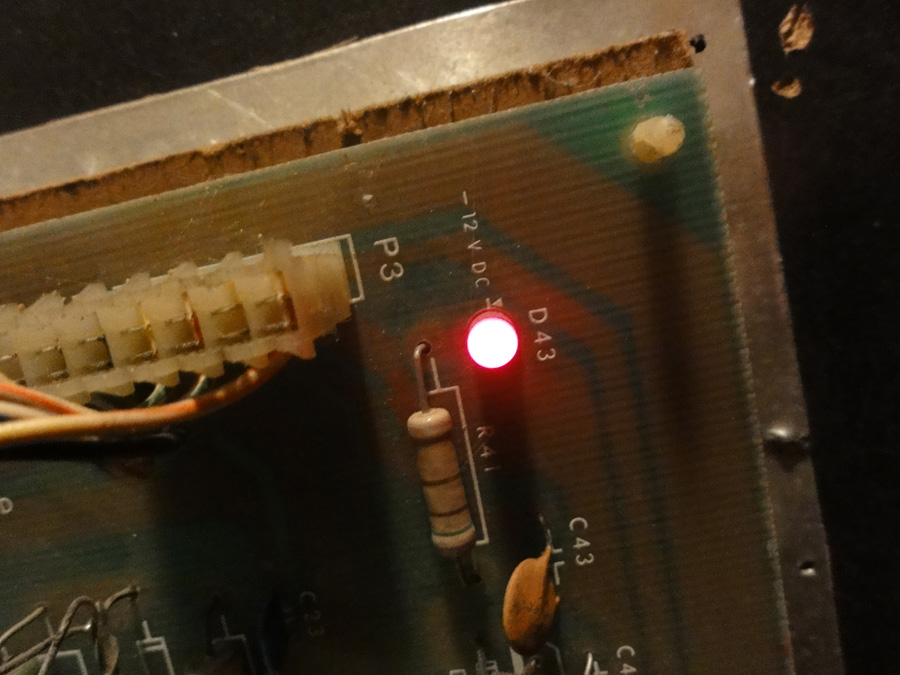

Let's look closer here... a led supposed to indicated the presence of 12V here  arrow

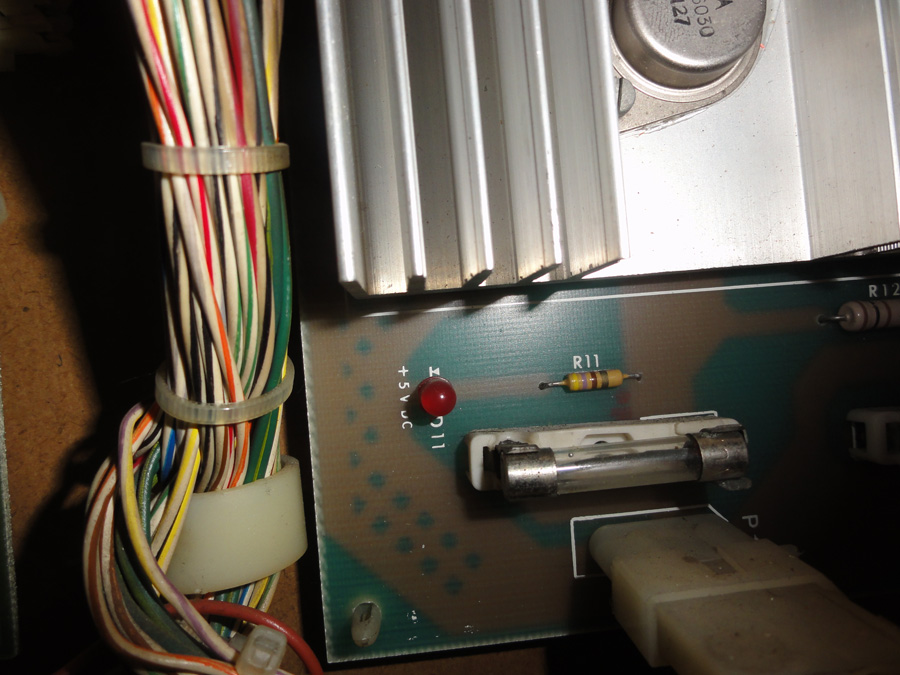

Looks good, and here... I'm supposed to have 5V  arrow

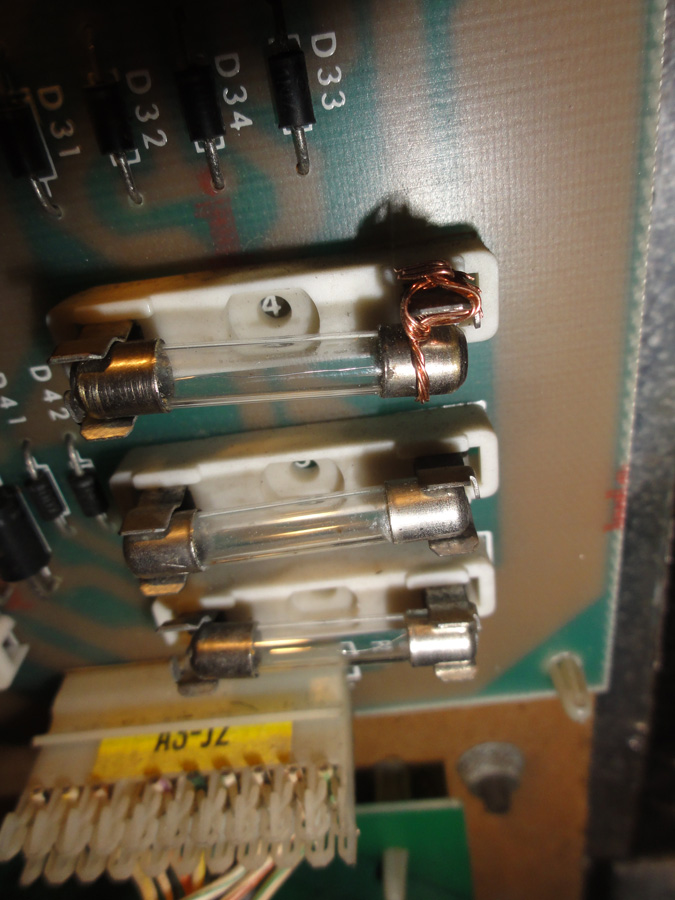

Not good! what could be wrong? Let's check the fuses everywhere. They are all fine, but see this support  confused  arrow

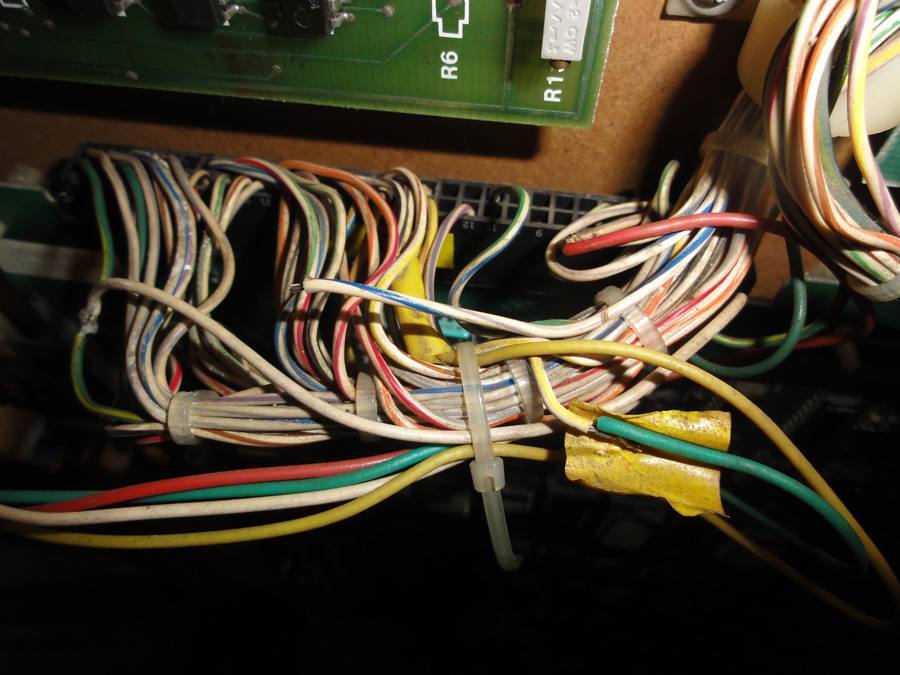

... and the modifications here?  Roll Eyes  arrow



Well, the problem was the fuse support. 'temporary' fixed for this test...

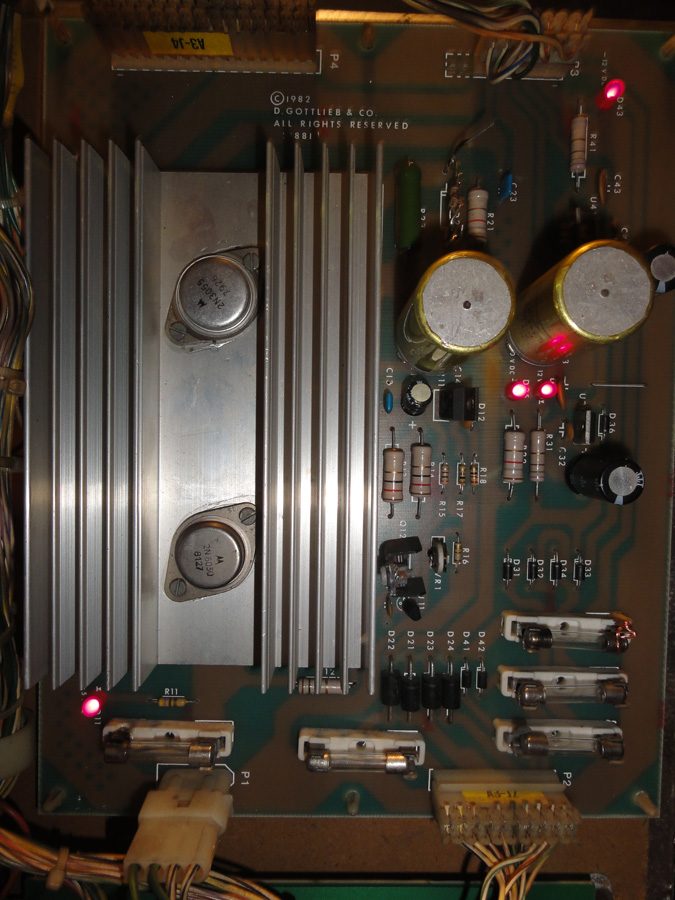

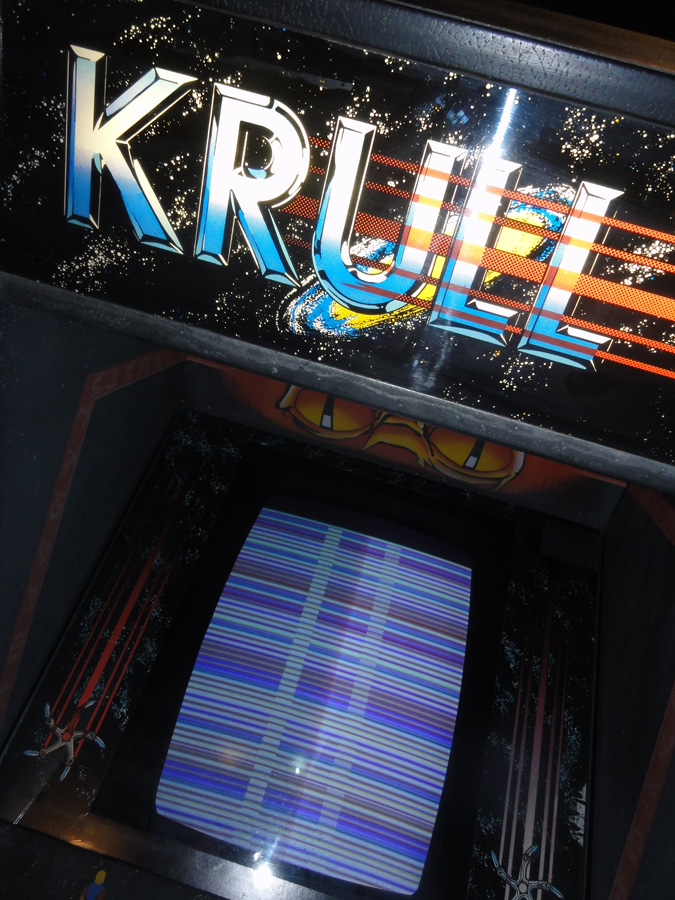

...and got all the led on! Now I have something 'static' on the screen  Cool  arrow



...but still no sound, no on screen activity (still the same static picture), test mode without any effect...

So I've checked the voltage incoming directly into the game board, and the values measured are too low / not correct. Looks like a voltage problem at this level.
In addition I'll have to check the harness and understand what was the purpose of the hacked/cut wires...
Logged

Belike
ArcadeLifeStyler'
***
Posts: 4597


Budapest, Hungary


View Profile
« Reply #33 on: April 06, 2012, 08:12:01 AM »

Very interesting pcb layout, never seen like this before.
I'm really curious about the following results. Cheesy
Logged
Etienne MacGyver
ArcadeLifeStyler'
***
Posts: 7512


The Netherlands


View Profile
« Reply #34 on: April 06, 2012, 09:40:09 AM »

There is some progress here, thats good!

maybe a new fusehodler in the future ?  Wink
Logged

Looking for Repro Decals ?  Visit my webstore !  arrow  http://www.easywebshop.com/arcadedecals
Superully
ArcadeLifeStyler'
***
Posts: 6268


Southern Part of Germany


View Profile
« Reply #35 on: April 06, 2012, 10:00:26 AM »

well, at least you got some life into this already, but please replace that fuse holder quickly!
Logged

all i need is ... PONG - and a select few others: TOUCH ME, DRAGON'S LAIR, JOUST, ROBOTRON, MR DO, SAN FRANCISCO RUSH THE ROCK!!!
Muerto
ArcadeLifeStyler'
***
Posts: 3802


Denmark


View Profile
« Reply #36 on: April 06, 2012, 11:07:56 AM »

Funny to see how the boards all most look the same...:

Krull:


Q*bertīs Qubes:


-EDIT-
On a second glance, they are all most identical, only difference is the daughter board on the QQ and the small PCB on the Krull (left of it)
« Last Edit: April 06, 2012, 11:10:22 AM by Muerto » Logged

DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11536


Singe's castle


View Profile WWW
« Reply #37 on: April 06, 2012, 07:04:37 PM »

Nice! It'll very useful for comparing things. Smiley I've just checked once again your Q*bertīs Qubes topic, and you're ahead of me concerning the repair Cool
Logged

Etienne MacGyver
ArcadeLifeStyler'
***
Posts: 7512


The Netherlands


View Profile
« Reply #38 on: April 07, 2012, 06:52:40 PM »

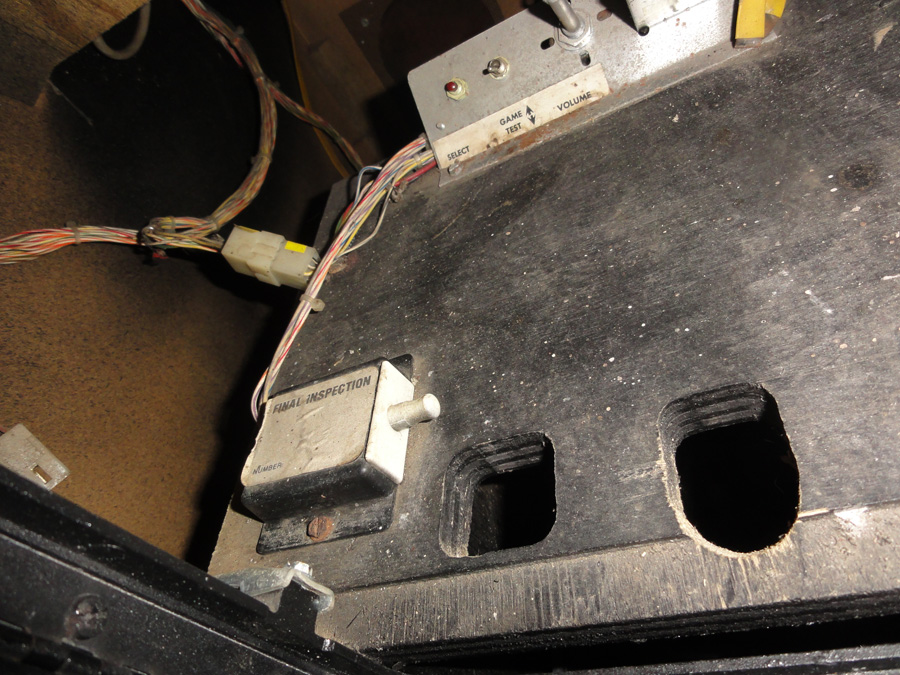

Maybe a stupid suggestion, but did you flip this switch ?

Looks like it is set to test mode  Roll Eyes


* Krull_inspection_11.jpg (268.08 KB, 900x675 - viewed 407 times.)
Logged

Looking for Repro Decals ?  Visit my webstore !  arrow  http://www.easywebshop.com/arcadedecals
Superully
ArcadeLifeStyler'
***
Posts: 6268


Southern Part of Germany


View Profile
« Reply #39 on: April 07, 2012, 07:07:56 PM »

well spotted, etienne! i had the same thing on my championship sprint - flicked the switch et voila ...
Logged

all i need is ... PONG - and a select few others: TOUCH ME, DRAGON'S LAIR, JOUST, ROBOTRON, MR DO, SAN FRANCISCO RUSH THE ROCK!!!
DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11536


Singe's castle


View Profile WWW
« Reply #40 on: April 07, 2012, 07:24:09 PM »

Maybe a stupid suggestion, but did you flip this switch ?
Looks like it is set to test mode  Roll Eyes

As I said : "...but still no sound, no on screen activity (still the same static picture), test mode without any effect...".  Tongue

I'll have to fix some voltage problems first, and understand why some wires are cut /hacked  Undecided
Logged

Etienne MacGyver
ArcadeLifeStyler'
***
Posts: 7512


The Netherlands


View Profile
« Reply #41 on: April 07, 2012, 07:53:23 PM »

Sorry, i misunderstanded your phrase  oppps
Logged

Looking for Repro Decals ?  Visit my webstore !  arrow  http://www.easywebshop.com/arcadedecals
DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11536


Singe's castle


View Profile WWW
« Reply #42 on: April 07, 2012, 09:13:57 PM »

Sorry, i misunderstanded your phrase  oppps

No problem  Wink When I move the test switch -> no effect at all on the graphic 'garbages'  Undecided

Logged

gyruss
ArcadeLifeStyler'
***
Posts: 2323


The Netherlands


View Profile
« Reply #43 on: April 22, 2012, 10:44:59 AM »

Check out this great review, they compare the game with the actual movie scenes: http://www.youtube.com/watch?v=QDxw1z42lYY&feature=channel&list=UL

Logged
DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11536


Singe's castle


View Profile WWW
« Reply #44 on: April 22, 2012, 02:36:33 PM »

I didn't check too closely any Krull arcade videos game play so far (I prefer to discover it when the game will be repair), but I had to check your video link  Wink
Cool, now I really want to go forward on that restoration to play these 'scenes'  Smiley
(because no progress so far on this one  oppps)
Thx for the link Smiley

« Last Edit: April 22, 2012, 03:08:35 PM by DarthNuno » Logged
