« Reply #435 on: March 16, 2013, 10:34:05 AM »

Brilliant idea to mark the unused connectors with dust  Grin

Uh, going through all the stuff to find what's wrong is a hell of a job   Undecided

Good luck Bruno!!!  Smiley
Logged
uncletom
Member
**
Posts: 243



View Profile
« Reply #436 on: March 16, 2013, 04:40:45 PM »

There are sync-converter boards nowadays, from 15k to VGA.
Logged
DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11639


Singe's castle


View Profile WWW
« Reply #437 on: March 16, 2013, 04:53:34 PM »

And here's the first 'video episode' of this new season 7 : "Life After Death?" arrow



 Cool
Logged

Jason42
Jr. Member
*
Posts: 19


View Profile
« Reply #438 on: March 16, 2013, 06:57:37 PM »

There are sync-converter boards nowadays, from 15k to VGA.

Yep, but they are expensive, as they use some heavy FPGAs inside Smiley if i remember, the price for these are around 300 euros.
Logged
leonk
Jr. Member
*
Posts: 89


View Profile
« Reply #439 on: March 16, 2013, 07:57:05 PM »

so am I the only one that noticed Bruno always has what seems like a fire extinguisher beside him at all time??
Logged
Level42
ArcadeLifeStyler'
***
Posts: 13554


Ridderkerk, arcade capital of Europe !


View Profile WWW
« Reply #440 on: March 17, 2013, 01:19:21 AM »

I think he does that to tease me Wink
Logged

Sonic 1992
ArcadeLifeStyler'
***
Posts: 883


I Wanna Go Back !


View Profile
« Reply #441 on: March 17, 2013, 06:50:23 AM »

Fingers crossed for you, hopefully no more problems!!   Ready For Launch!   Cheesy
Logged
DarthNuno
Administrator
ArcadeLifeStyler'
*****
Posts: 11639


Singe's castle


View Profile WWW
« Reply #442 on: March 17, 2013, 03:27:59 PM »

SEASON 07 - FIXING THE THEATER

EPISODE 02: A Real Live One!
Starring : Darth Nuno


Let's 'power on' that stuff once again...See all these lights  Yeaaaaaaaaaah!!!!  Kiss  arrow

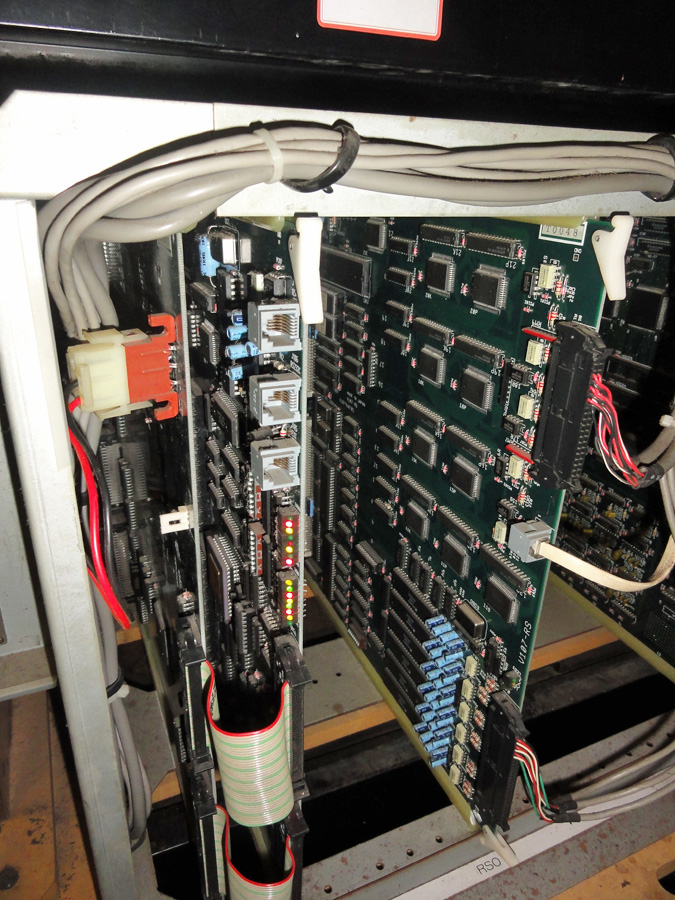

After replacing the connectors coming for CPU1/CPU board into the correct RAM board plugs... there's life here!  Kiss  arrow



So, for the first time after ...almost 6 years of hibernation... the Galaxian Theater boots!!!!

Magical moment... the game is waiting for the LD signals (DISC WAITING message)...



Yes!!! Yessss! Yeeeeeeeess!



Re-animated!



'One eye open' only so far, but definitively breathing now!  Grin



Ok, because ...



... I didn't took pictures for the next 'fix' I've done, so let me explain it. As you can see on this picture  arrow



The words 'DISC WAITING' are written in BLACK. (Note the others 'black garbages' on screen are just 'screen burn' on the tri-tubes projector)
These words are supposed to be written in 'WHITE'. After the game boot, the attract mode starts. I noticed that all the enemies - or in general way all the graphics 'real time' computed by the PCBs were ...'BLACK'. For example the enemies on screen looked like black shadows, same for the cursor gunners, and all the things 'real time' generated by the boards. It's like if all the graphics were coded in one bit, so one color only : black! (the other 'state' would be the 'transparent' color)

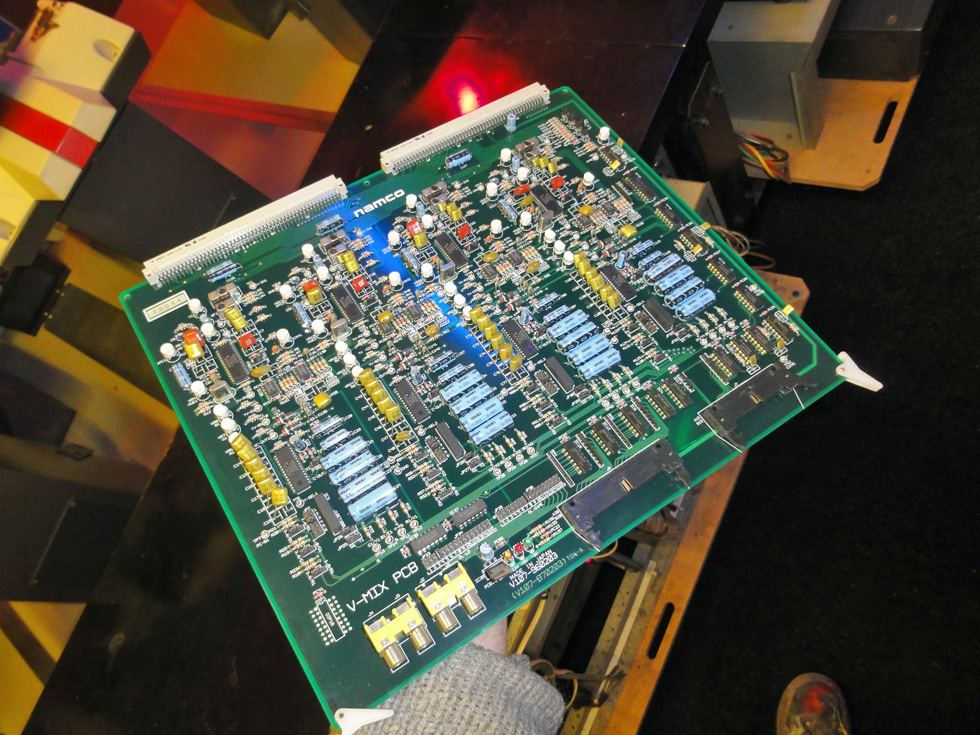

There's a special board inside the theater called the 'V-MIX' board. Let me quote a short description I've previously written about that board :

In very short, there are two laser disc players sending the left + right signal (via BNC) into a special board (along all the boards that run the game) called 'V-MIX'. These two laser disc players produce the background of the game (CGI graphics, at the top of the technology back in 1994).
In addition of the background image (left+right), there are 2 set of boards in charge of computing the enemy ships and all the mechanic of the game. Why 2 set of boards? Well one set per screen! Left and Right! So each set of boards are sending the images processed (via usual RGB signal) into the same 'V-MIX' than the one used by both laser disc players. Do you still follow?  roll eyes
OK, so the purpose of that unique 'V-MIX' board is ... to mix the images sent by the LD player and the images sent by the two set of boards, and produce two final video signals to send to the 2 projectors. The input of the projectors are 4 BNC for a native RGBS signal coming twice from the V-MIX board.  Cool A true piece of technology at the time!

SO that V-MIX board seems to have an important role, and I would say it'll be the more concerned one regarding that 'one bit real-time gfx resolution'? Let's remove it ...

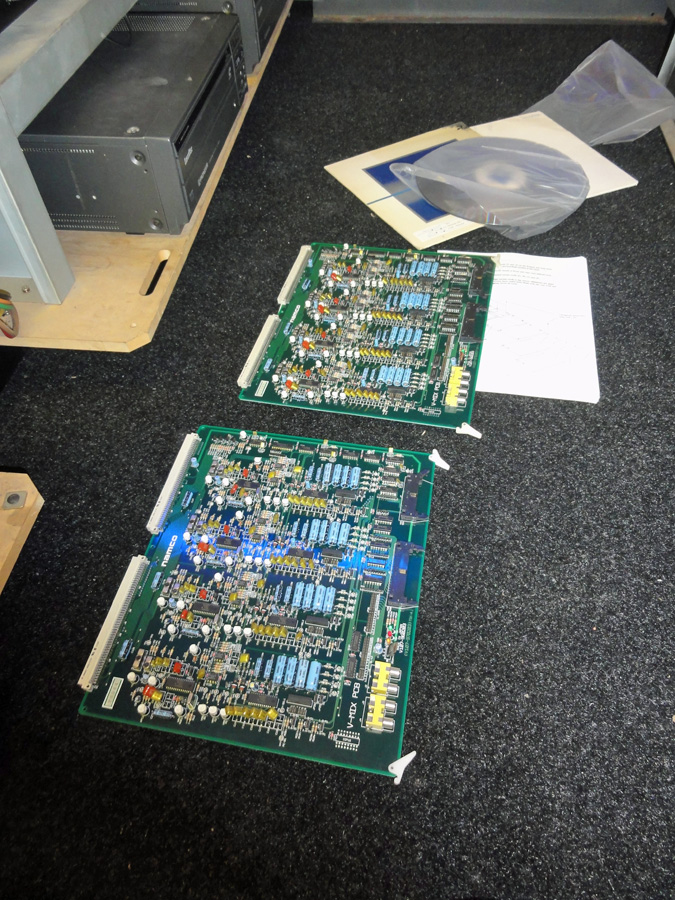

...and replace it with a spare one I fortunately own... let's try now!



Damn it! Damn it! Damn it!  arrow



Woowoow... it looks better now!

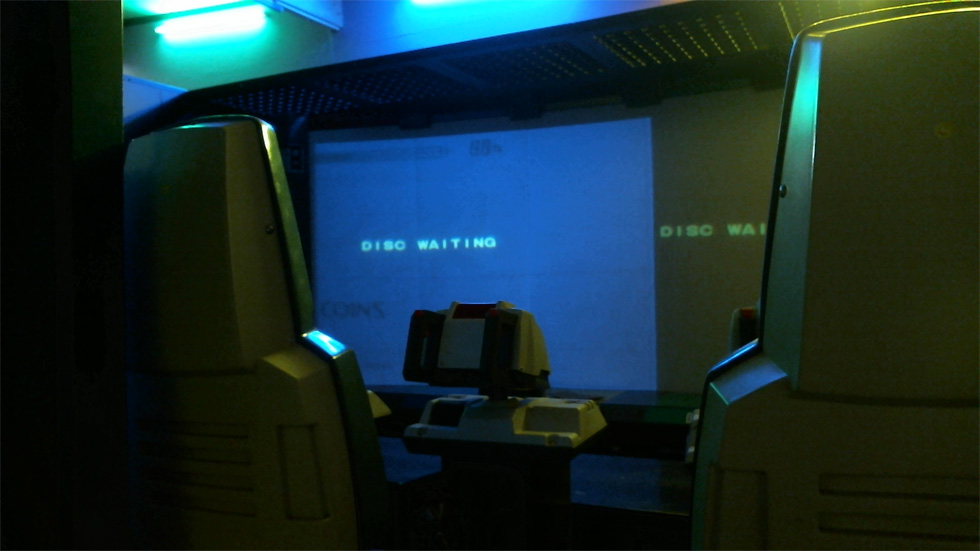

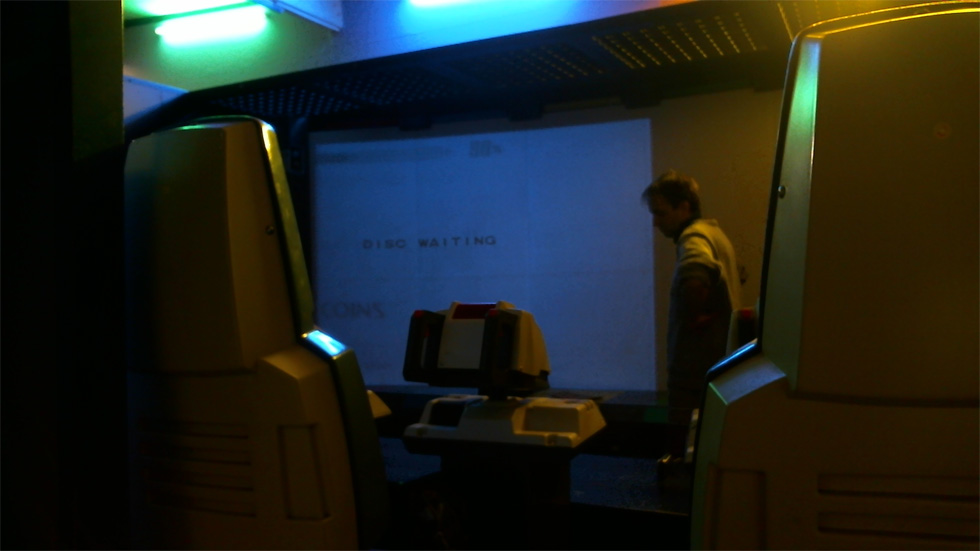

Hehe, now you can also see the message 'DISC WAITING on the right screen/projector' because it was previously written black... on black!  Cool
Oh well, you may ask, why the right screen background is not blue like the left one? Remember what I said in the previous 'episode', the right projector seems to have a problem on the blue tube... so instead displaying the blue background, it displays ...nothing, or almost nothing in the blue tone...

OK, so now the game boots... and I can 'credit' games. See the different ways to start games right here :



Ready to fly? Here's the gunner entry!  arrow



As you can see, the two pictures coming from two projectors are not correctly 'aligned'...

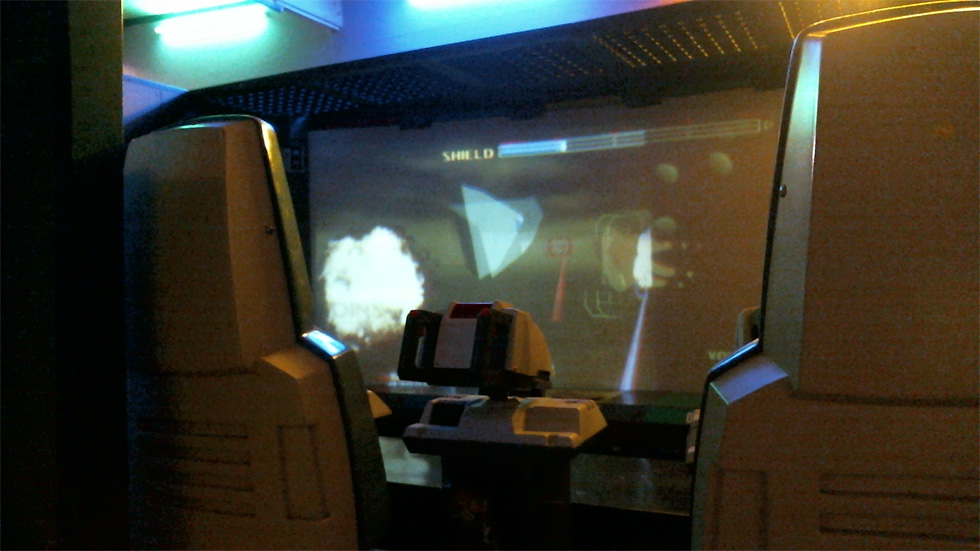

...but I am so happy and I can not wait any longer! I want to try it now!!!! YYeehhhhaaaa!!!  arrow



Jesus! I can't believe I've just played my first ZOLGEAR game since ... wooooww!  Kiss

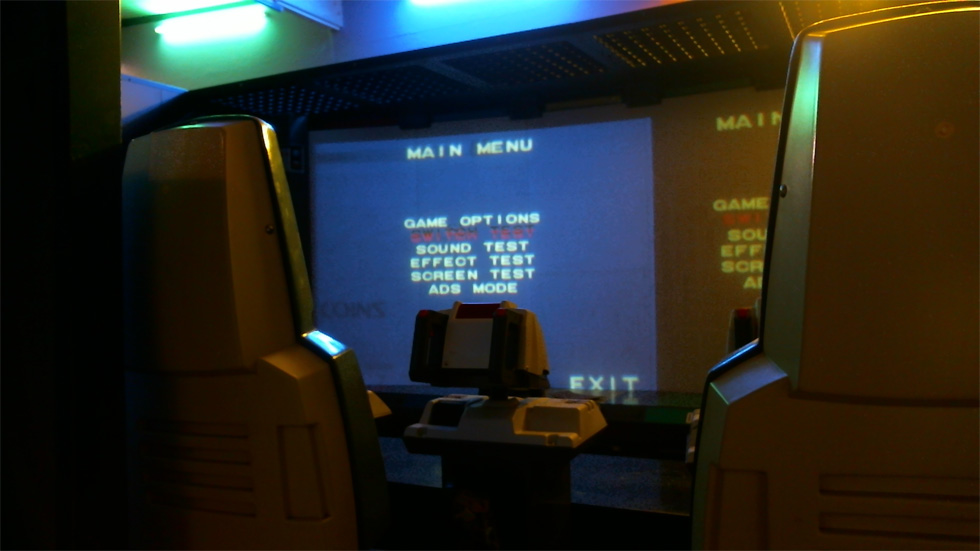

Ok, a quick tour in the setup menu... I'll come back on this l8ter...

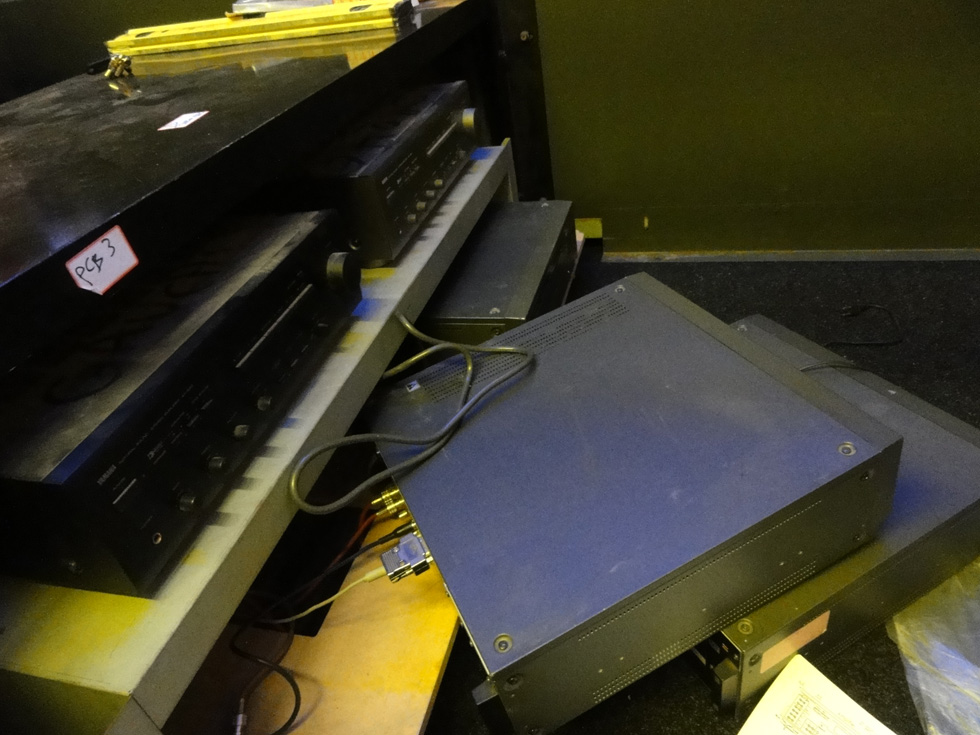

It's time to see what are the working LD players I own... After trying two or three LD players I got from the operator/seller, labeled 'not repair'  oppps, let's see if the spare *working* ones I bought for this project are still doing the job in 2013!



Hey... something is coming on the right screen? huh?

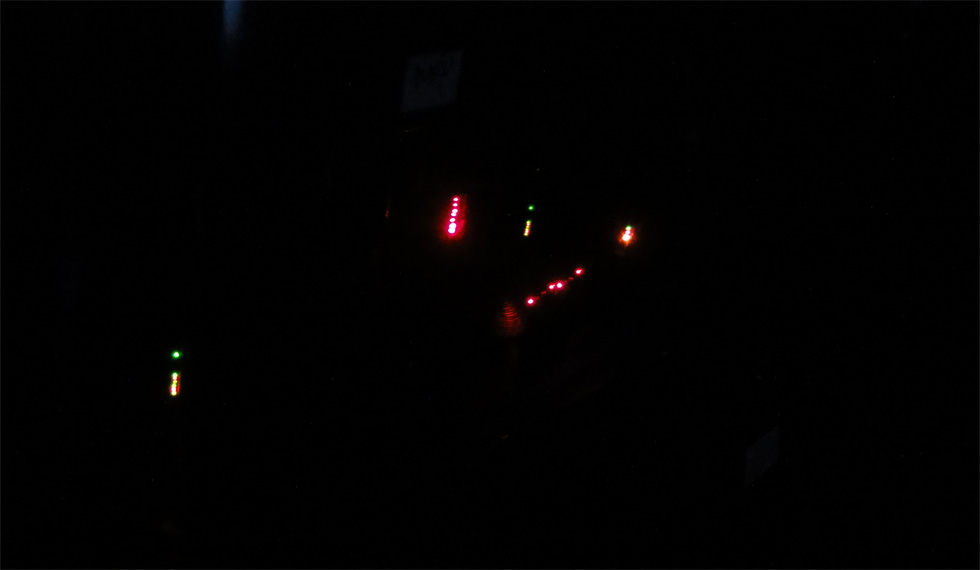

Lights off please!  arrow

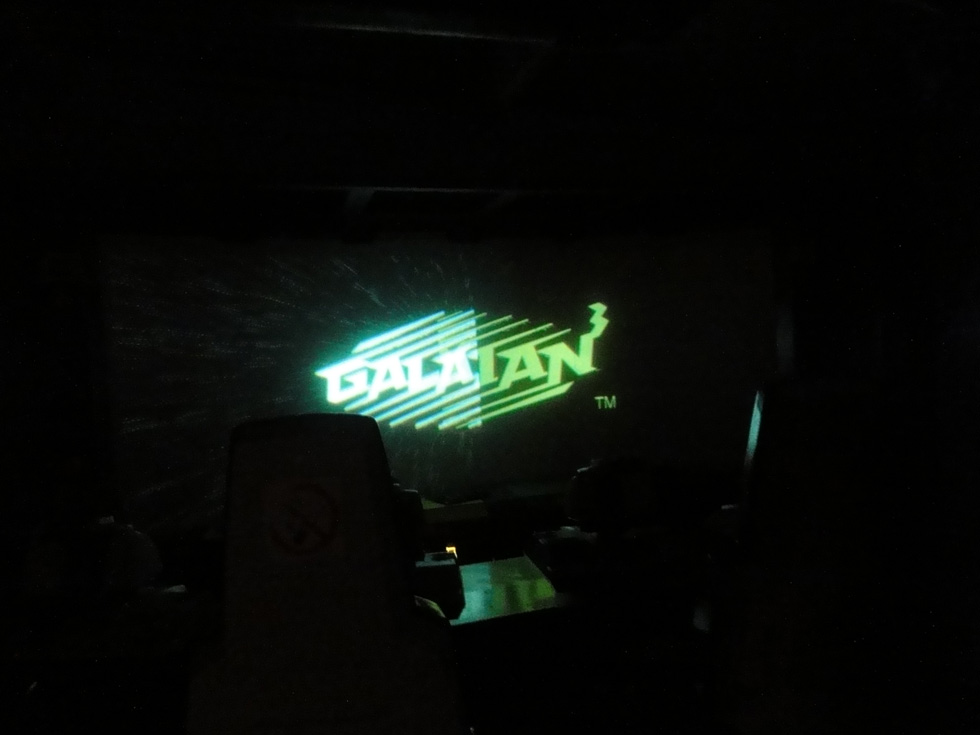

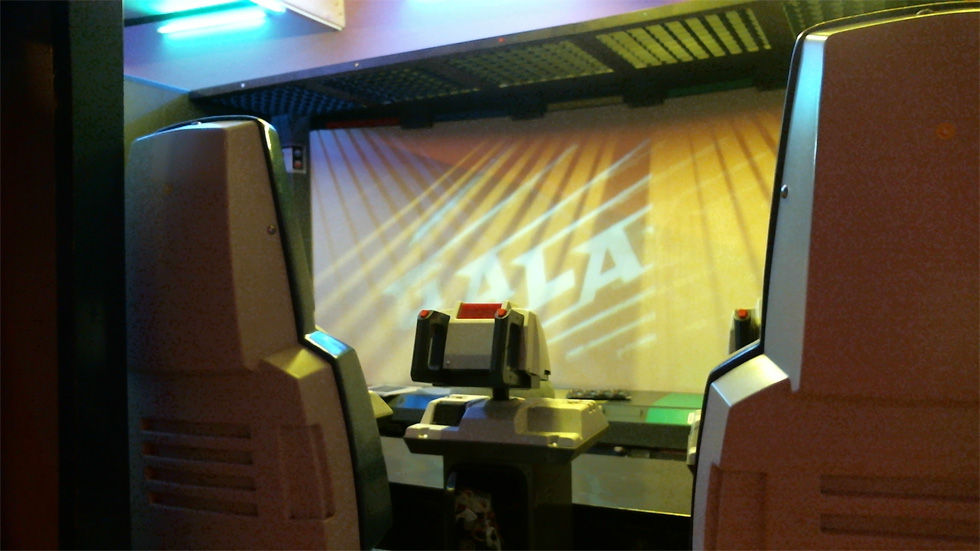

yes...YES....YESSSSS  Kiss Kiss Kiss

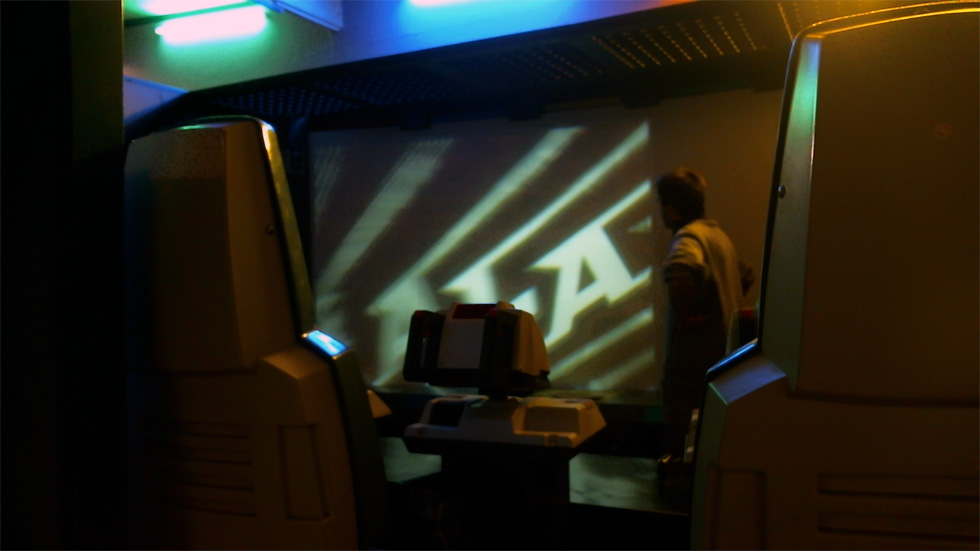

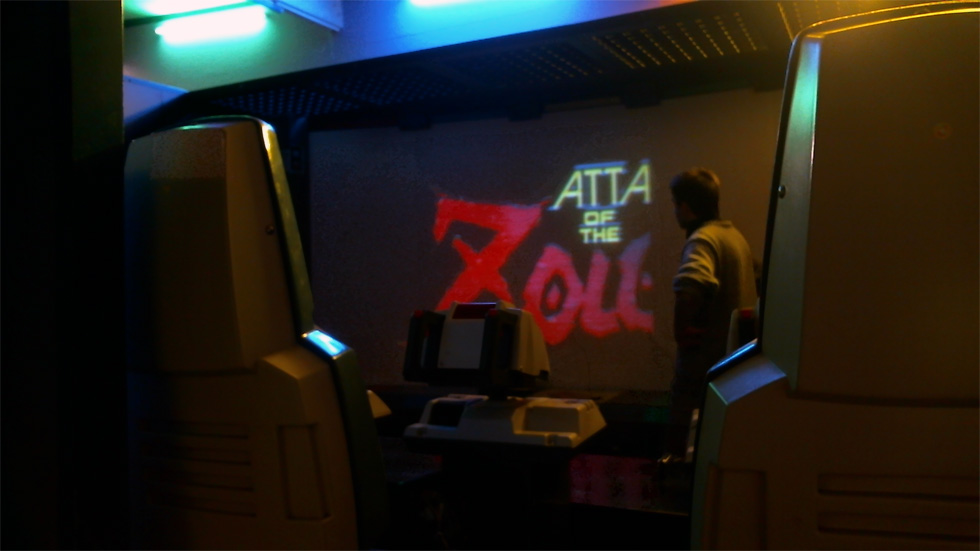

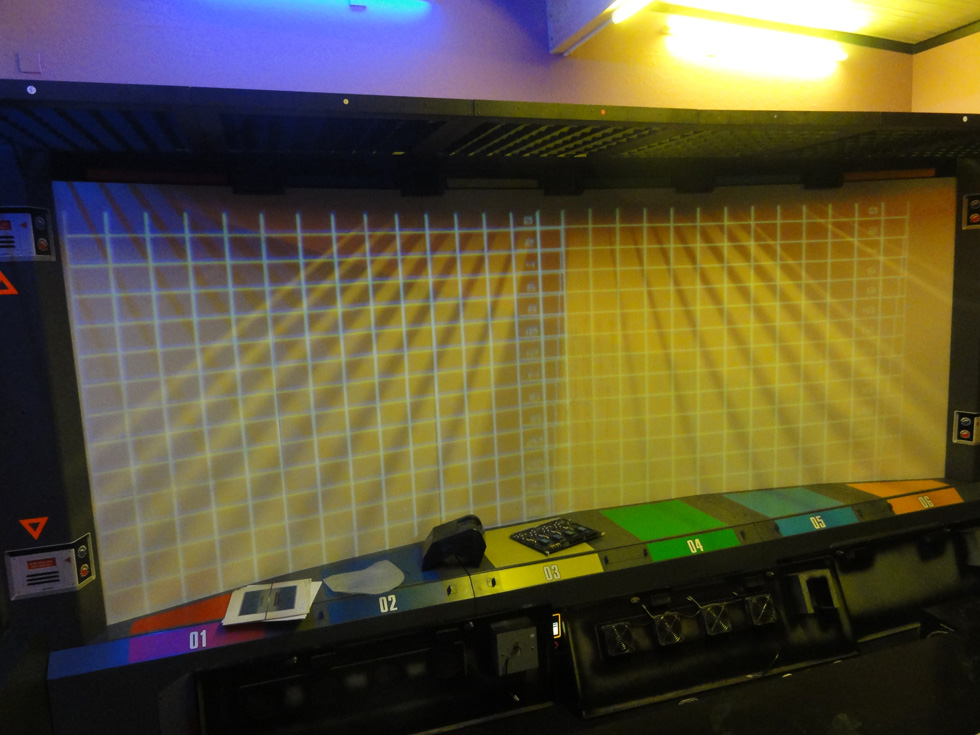

Ok, now let's fix the projectors alignment/colorimetry...

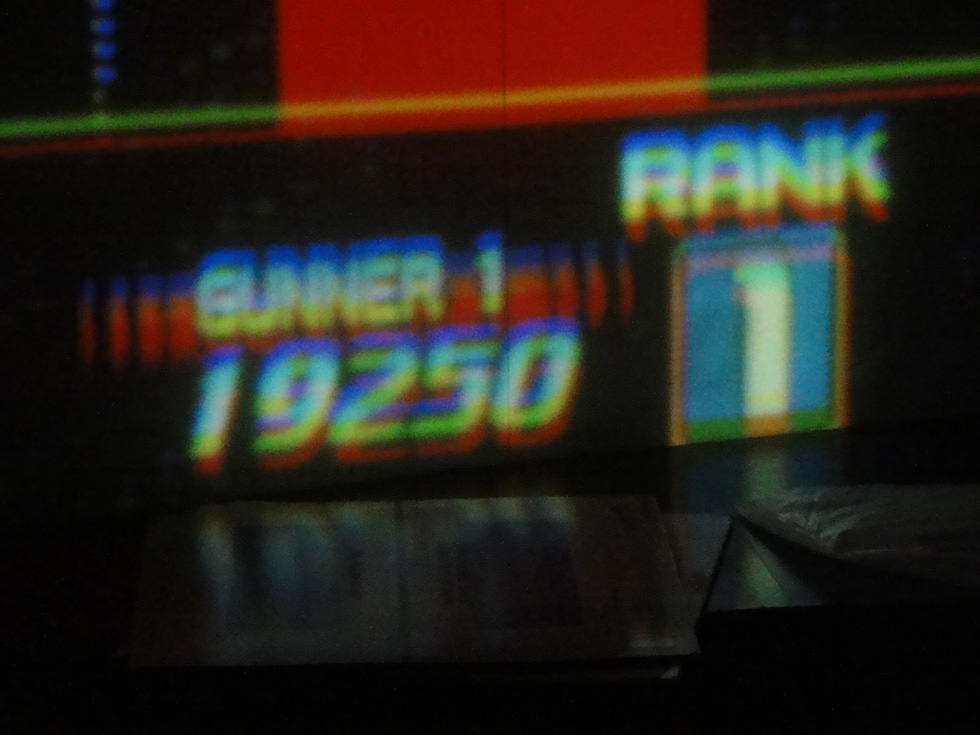

Hey...for my archive, the first score for my first 'Zolgear' game  Grin

The video set up is done, now let's play my real first game in 'good condition' and check if everything works fine... Cool

Stay tuned guys!  Roll Eyes Wink

Oh, and of course all the content of this episode available right here :



 Space Ace Space Ace Space Ace
