Author Topic: [Restauration] Crazy Kong fase 2  (Read 26379 times)
Etienne MacGyver
ArcadeLifeStyler'
***
Posts: 7549


The Netherlands


View Profile
« on: October 31, 2010, 11:27:00 AM »


After Fase 1 (fix technically) wich is not totally finished, i decided to start with fase 2

The board from ebay is on its way, i hope this is working, and if not, i have full confidence in Robinholland that at least one of the boards will be fixed so i will have a working board in the end. ill update that section when the board arrives.

Lets invetsigate the CP..
A big piece broke off and is not here anymore..




Big damage on the right side also..




It also looks like the joystick is not comming back good to "neutral" position, it stays a little to the right  Undecided
I will take it apart and see if it is bend in some way , or that its just something else..




Bottom, still everything in place..  ahh, leafswitches, wonderfull!




A nice place to work on it, hinges perfect , no rust !




The tools for today..  Wink




Electric parts removed..




Time to unscrew the plexi from the wood..




Broken pieces of plexi CPO  Cry






After taking off the CPO..




There is also a crack in the rubber seal from the joystick..
does anyone have a spare  Huh?




There is a lot of dirt under the CPO...




Already alot better after some cleaning  Cheesy




hmm lets see what i can do with this..




Superglue ! that will do the trick  Wink




you may think, "why he is fixing this if there are parts missing.."




Thats because its "Scanner time"  Cheesy




Scanning in action..




After stitching, ready to trace in Illustrator..




Bela was so kind to scan his CPO for me, but as you can see they are different...



Anyway, ill see what i will use for the reproduction,
Will make a dedicated topic for that later..

Later more to come  Cool
« Last Edit: November 11, 2010, 10:51:41 AM by Etienne [NL] » Logged

Looking for Repro Decals ?  Visit my webstore !  arrow  http://www.easywebshop.com/arcadedecals
Superully
ArcadeLifeStyler'
***
Posts: 6272


Southern Part of Germany


View Profile
« Reply #1 on: October 31, 2010, 11:37:59 AM »

different in shape and colors, but the design is identical, isn't it! you should be able to reconstruct yours with the help of bela's scan, mister wizard Cheesy!

anyway, good luck with the resto of your cab, resto threads have always been my favorite topics!
Logged

all i need is ... PONG - and a select few others: TOUCH ME, DRAGON'S LAIR, JOUST, ROBOTRON, MR DO, SAN FRANCISCO RUSH THE ROCK!!!
Level42
ArcadeLifeStyler'
***
Posts: 13518


Ridderkerk, arcade capital of Europe !


View Profile WWW
« Reply #2 on: October 31, 2010, 12:17:36 PM »

Hey that wood looks like a Vanguard CP....guess they used a "standard" hole layout ?

Nice work, Crazy Kong finally deserves some restored artwork available !  After all, that's what we (mostly) all played in Europe (I know I did!)
Logged

Belike
ArcadeLifeStyler'
***
Posts: 4670


Budapest, Hungary


View Profile
« Reply #3 on: October 31, 2010, 12:50:54 PM »

Yeah that is a Vanguard Cp! Wink
I'm wondering why are the 2 control panels have different colors?
Both of them look like original. Huh?
« Last Edit: October 31, 2010, 03:44:09 PM by Belike36 » Logged
Level42
ArcadeLifeStyler'
***
Posts: 13518


Ridderkerk, arcade capital of Europe !


View Profile WWW
« Reply #4 on: October 31, 2010, 01:12:45 PM »

Yeah that is a Vanguard Cp! Wink
I'm wondering why are the 2 control panels have different colors?
Both of them looks like original, Huh?
Hah, well how many versions of official (f.i. Atari) artwork are there, it's very common...
Logged

Etienne MacGyver
ArcadeLifeStyler'
***
Posts: 7549


The Netherlands


View Profile
« Reply #5 on: October 31, 2010, 02:52:36 PM »

I think its a "zaccaria" CP  Wink

its just a standard they used i guess, and used this for all theyre cabs

they both look original, and the only difference i can discover is that mine is in a different cab than the one from belike who has got the "full size" zaccaria housing

I like the griders from bela's CPO more than mine wich are just orange.. but ingame they are also orange instead of purple, so i dont know yet what to do  Undecided
Also i see that bela's has 3 green stars while mine are all blue, i think i will stick with the blue

the instructioncard section will defenetly be the one like bela's, also i dont know what letter is missing "... VG"   Huh?

also Bela's marquee has a different shape than mine, mine is just a plain piece of plexi while yours have a bend IIRC
« Last Edit: October 31, 2010, 02:57:25 PM by Etienne [NL] » Logged

Looking for Repro Decals ?  Visit my webstore !  arrow  http://www.easywebshop.com/arcadedecals
Belike
ArcadeLifeStyler'
***
Posts: 4670


Budapest, Hungary


View Profile
« Reply #6 on: October 31, 2010, 03:43:31 PM »

There is a letter "A" missing from the sign AVG. Wink
Logged
Etienne MacGyver
ArcadeLifeStyler'
***
Posts: 7549


The Netherlands


View Profile
« Reply #7 on: October 31, 2010, 08:38:43 PM »

do you aslo know what AVG stands for ?
Logged

Looking for Repro Decals ?  Visit my webstore !  arrow  http://www.easywebshop.com/arcadedecals
Etienne MacGyver
ArcadeLifeStyler'
***
Posts: 7549


The Netherlands


View Profile
« Reply #8 on: November 01, 2010, 11:50:32 AM »

Ok, electronics before dissasemble:

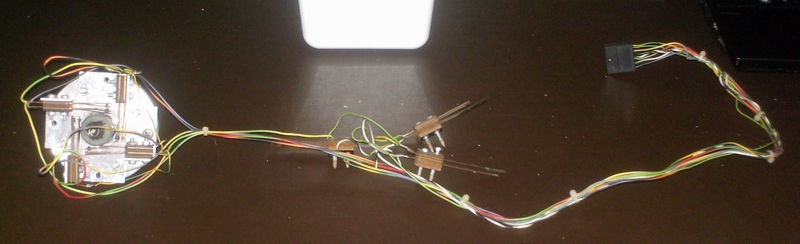

Cables desolderd..

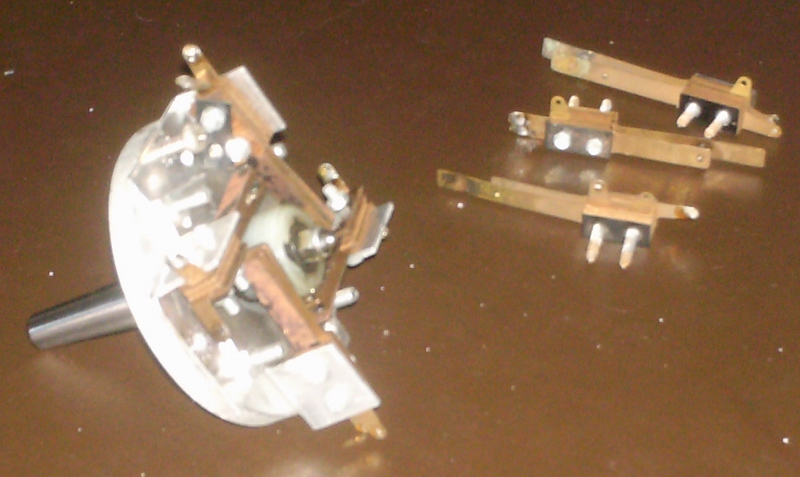

Lets take the joystick apart and see whats wrong with it that prevents it "return to neutral position"

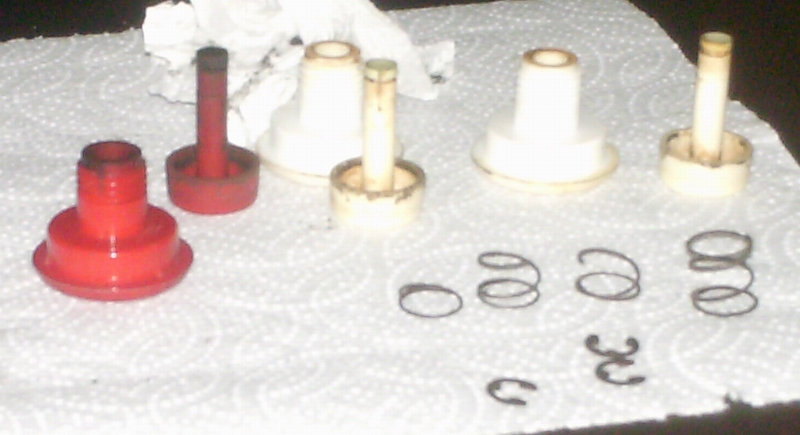

Aha !, that springs that you see there should be one piece, and not 3/4 and 1/4 piece, its broken, and now the tention isnt big enough to "push" it back to the neutral position..  got to fine me a replacement spring...

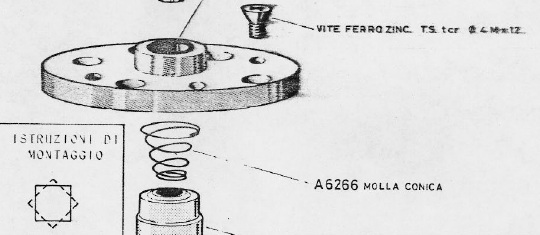

Also i think its already replaced before, since the manual is talking about a conic spring..




Same story for the buttons...  Cry
also there is only one spring intact...
That also explains the "sloppy" button feeling..




Time to go "Spring hunting"  Grin

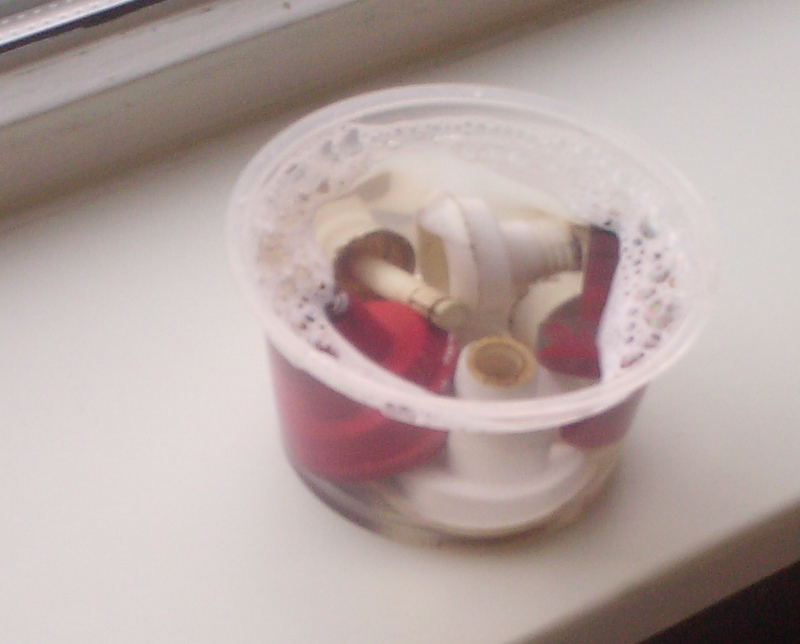

The rest of the button parts are now taking a nice jacuzzi, lets see if they will become a little more clean after a night in soap..
