DarthNuno
|
 |
« on: January 04, 2010, 01:23:50 PM » |
|
|
|
|
|
|
Logged
|
|
|
|
petieken
Member
Posts: 377
Belgium
|
 |
« Reply #1 on: January 04, 2010, 01:28:01 PM » |
|
A hole punch. Normally these are round, but they exist in square too. Something like this: http://www.edmo.com/index.php?module=products&func=display&prod_id=23603I recently purchased a round one to make a round 24mm hole in a metal sheet to make my own joystick mounting plates. You only have to buy the correct size and you should get perfect square or round holes depending on the model you buy. |
|
|
|
« Last Edit: January 04, 2010, 01:31:08 PM by petieken »
|
Logged
|
Wanted: Cadillacs and Dinosaurs CPS1 Q-Sound pcb | SegaSonic The Hedgehog Art & instruction set
|
|
|
|
DarthNuno
|
|
« Reply #2 on: January 04, 2010, 05:18:56 PM » |
|
For small holes like that, I'm using a drilling machine but for -of course- rounds holes. For making square holes, how does it works in details? I presume I have to press something, but in that case, a drilling machine is useless...  ...or do I have to turn that big bolt, and it will push the 'square' head on the metal? |
|
|
|
|
Logged
|
|
|
|
|
vib_ribbon
|
|
« Reply #3 on: January 04, 2010, 05:20:59 PM » |
|
try Qmax hole punches. i bought a big round one to go through a pretty thick area of a panel for a trackball.  |
|
|
|
|
Logged
|
|
|
|
|
vib_ribbon
|
|
« Reply #4 on: January 04, 2010, 05:22:58 PM » |
|
you are correct, a big allen key is in order  |
|
|
|
|
Logged
|
|
|
|
petieken
Member
Posts: 377
Belgium
|
|
« Reply #5 on: January 04, 2010, 05:25:23 PM » |
|
Yes, my hole punch is a Qmax too  I also find the holes (round of course) cleaner than with a large drill. |
|
|
|
« Last Edit: January 04, 2010, 05:29:24 PM by petieken »
|
Logged
|
Wanted: Cadillacs and Dinosaurs CPS1 Q-Sound pcb | SegaSonic The Hedgehog Art & instruction set
|
|
|
|
DarthNuno
|
|
« Reply #6 on: January 04, 2010, 05:38:44 PM » |
|
Thanks for your help. Ok I understand how it works now But I can only find 'big size' square, see this link for example.  Do you know a good shop? 'coz I've tried ebay.com but maybe I don't use the right query ("metal punch square")? I really need a smallest size, as you can see on my original picture... |
|
|
|
|
Logged
|
|
|
|
petieken
Member
Posts: 377
Belgium
|
|
« Reply #7 on: January 04, 2010, 05:54:19 PM » |
|
I did a google search and it is indeed not easy to find a small size... I did find a USA website which had 1/4" squares but it's $89   |
|
|
|
|
Logged
|
Wanted: Cadillacs and Dinosaurs CPS1 Q-Sound pcb | SegaSonic The Hedgehog Art & instruction set
|
|
|
Etienne MacGyver
ArcadeLifeStyler'
Posts: 7556
The Netherlands
|
|
« Reply #8 on: January 04, 2010, 07:51:54 PM » |
|
that looks like the punch i used in my sink to make the hole for the valve  its very easy indeed with this tool , drill a hole with the size of the bolt thats inside the punch and with a wrench you are in no time through as a knive through butter, and even better, no "drilling damage" if you know what i mean. its a clear cut |
|
|
|
|
Logged
|
|
|
|
|
vib_ribbon
|
|
« Reply #9 on: January 04, 2010, 11:23:56 PM » |
|
Thanks for your help. Ok I understand how it works now But I can only find 'big size' square, see this link for example. Do you know a good shop? 'coz I've tried ebay.com but maybe I don't use the right query ("metal punch square")? I really need a smallest size, as you can see on my original picture... give us an actual size to enable us to search. |
|
|
|
|
Logged
|
|
|
|
liquidx
Member
Posts: 431
Bruxhell, Belgium
|
|
« Reply #10 on: January 05, 2010, 10:33:01 AM » |
|
If it can help, in French they're called "emporte-pièces" or sometimes "poinçon à tôle".
|
|
|
|
|
Logged
|
|
|
|
|
DarthNuno
|
|
« Reply #11 on: January 31, 2010, 07:13:35 PM » |
|
I got an issue :  See the post right here |
|
|
|
|
Logged
|
|
|
|
Etienne MacGyver
ArcadeLifeStyler'
Posts: 7556
The Netherlands
|
|
« Reply #12 on: January 31, 2010, 08:00:07 PM » |
|
I got an issue : See the post right here I like the solution ! , very "MacGyver" !  |
|
|
|
|
Logged
|
|
|
|
|
scr33n
|
|

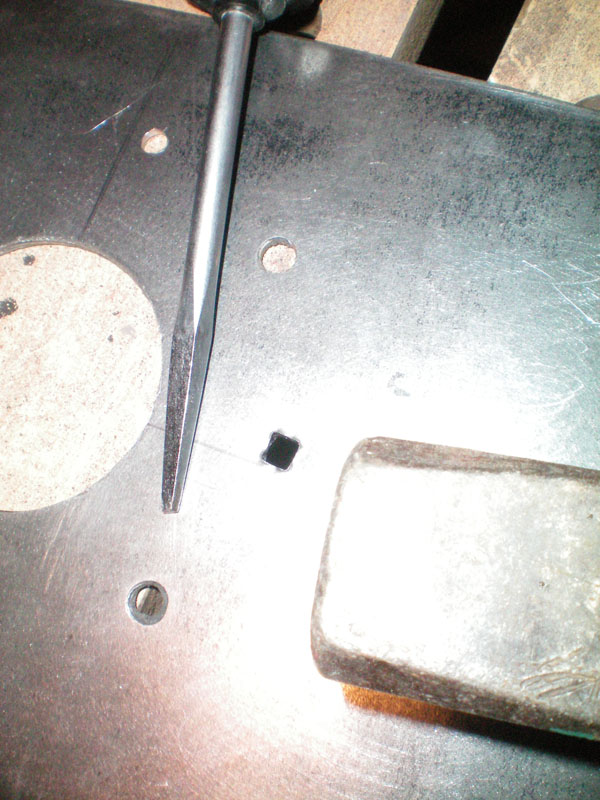

« Reply #13 on: February 01, 2010, 02:36:33 PM » |
|
|
|
|
|
|
Logged
|
